Ford
>>
1986
>>
Tempo L4-140 2.3L HSC
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fuse Block
>>
Locations
>>
Fuse Panel
>>
Main Fuse Panel
Main Fuse Panel

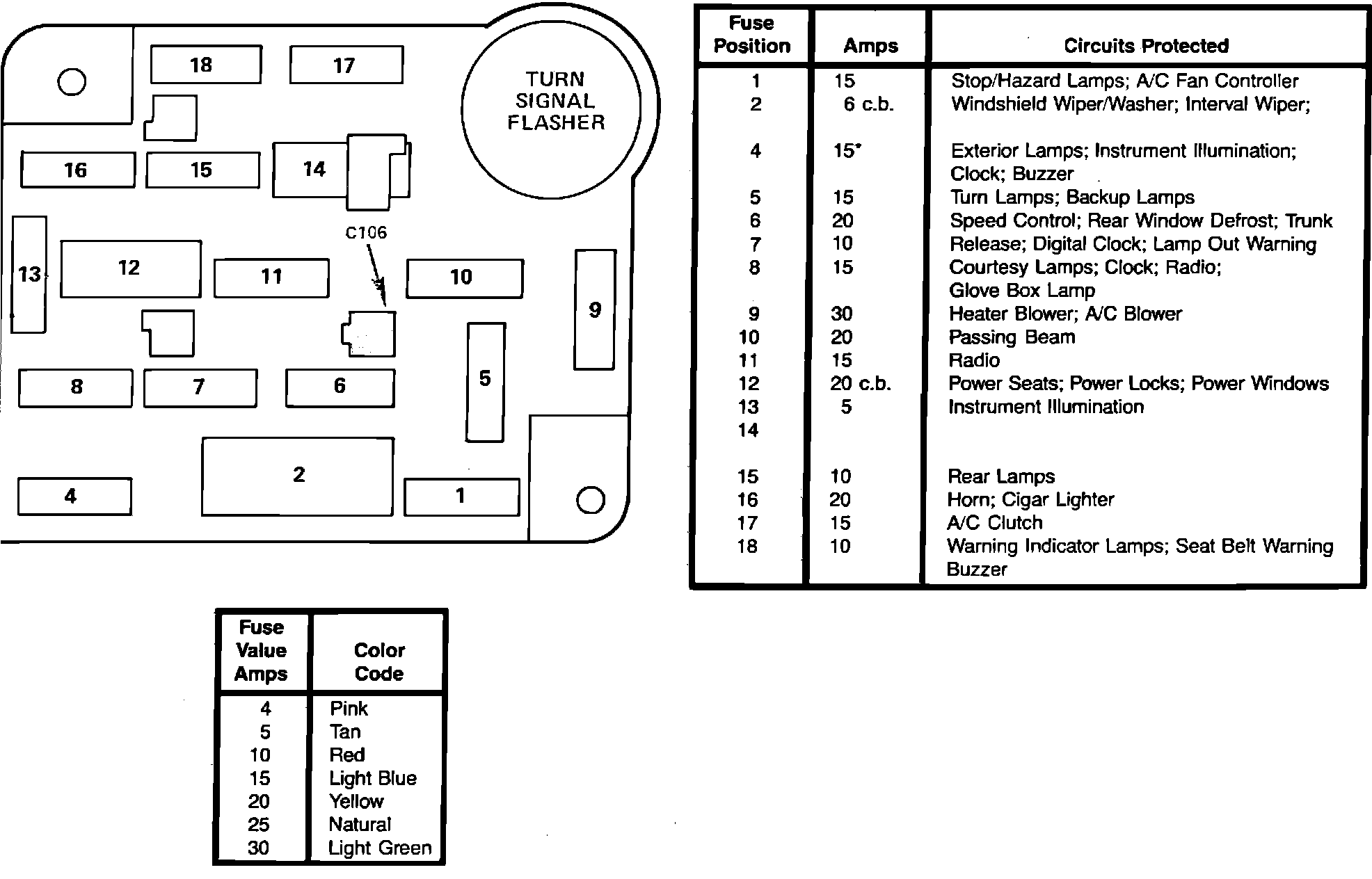

Fig. 1 Fuse Panel. Tempo & Topaz:
