Home >> Ford >> 1986 >> Taurus L4-153 2.5L HSC >> Repair and Diagnosis >> Power and Ground Distribution >> Fuse Block >> Locations

Fuse Block: Locations

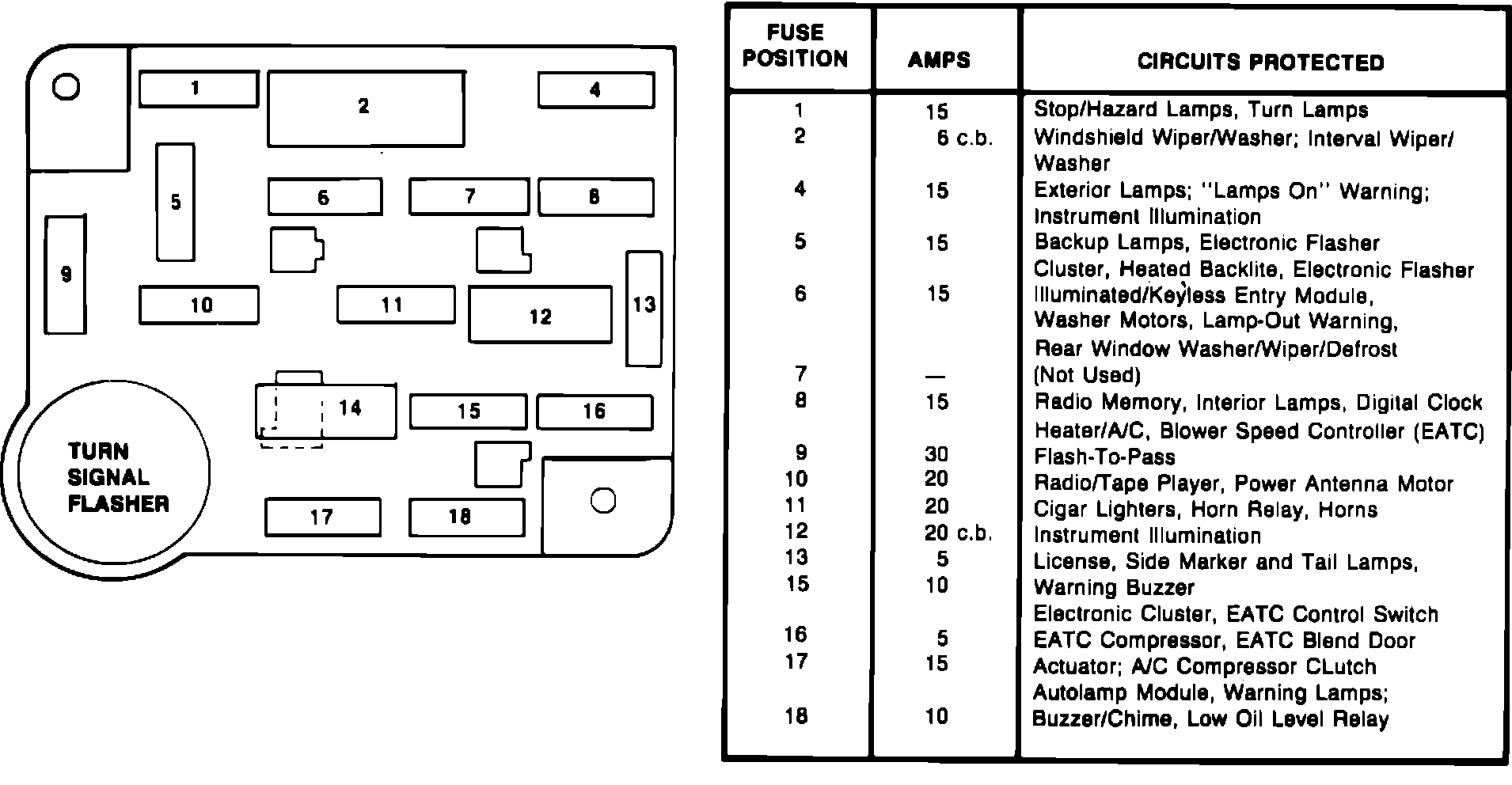

Fig. 1 Fuse Panel:
