Home >> Ford >> 1984 >> Tempo L4-140 2.3L HSC >> Repair and Diagnosis >> Power and Ground Distribution >> Fuse Block >> Application and ID

Fuse Block: Application and ID

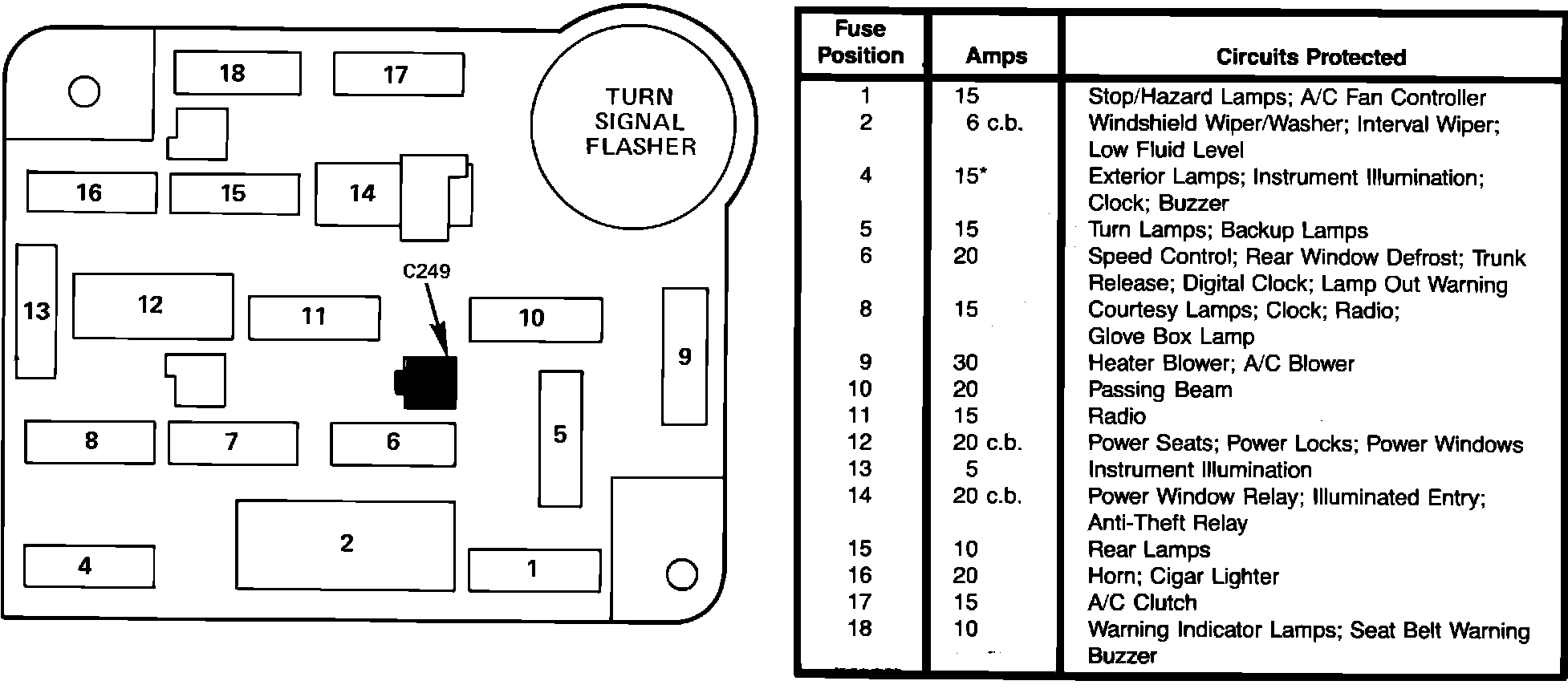

Fig. 1 Fuse Panel. 1984 Tempo & Topaz:
