General Engine Specifications

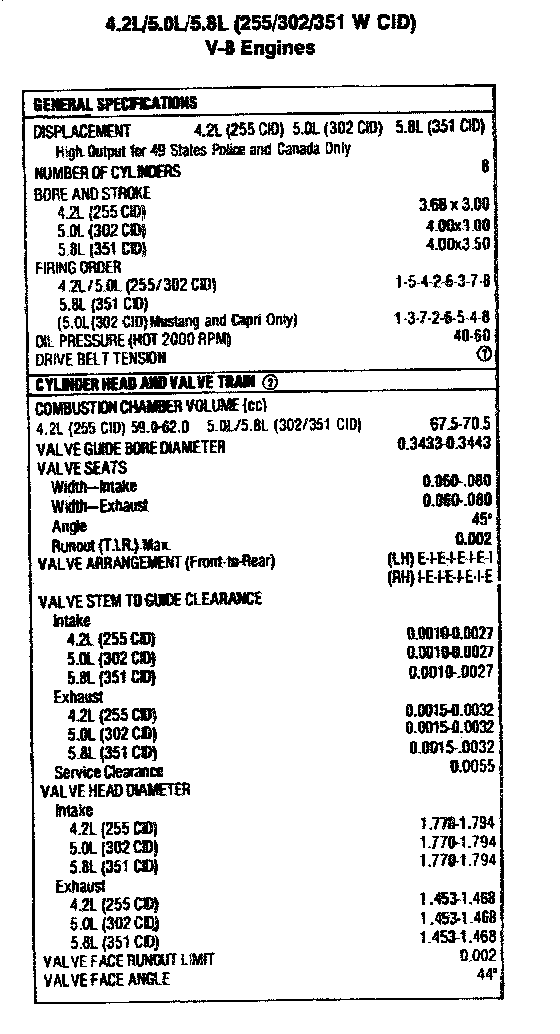

5.0/5.8L Engine Mechanical Data:

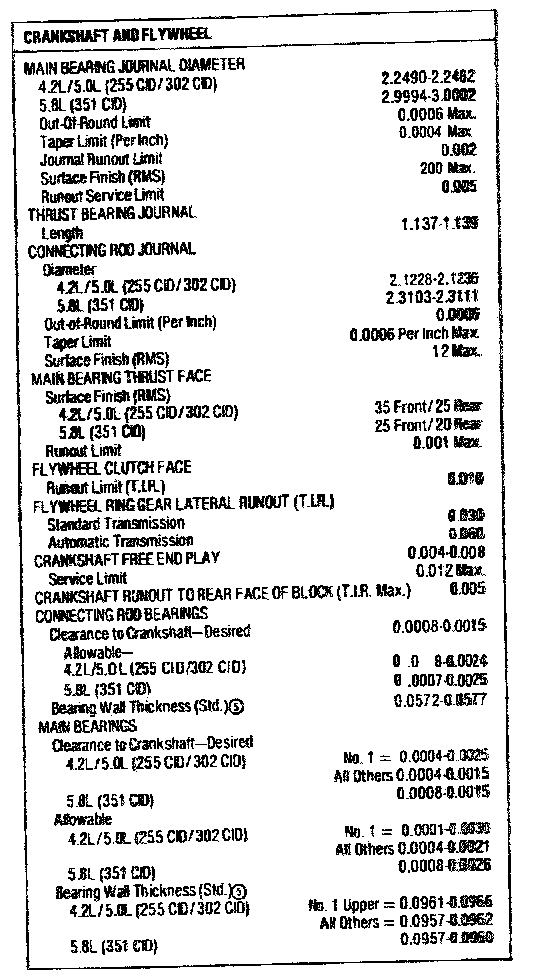

5.0L/5.8L Engine Mechanical Cont.:

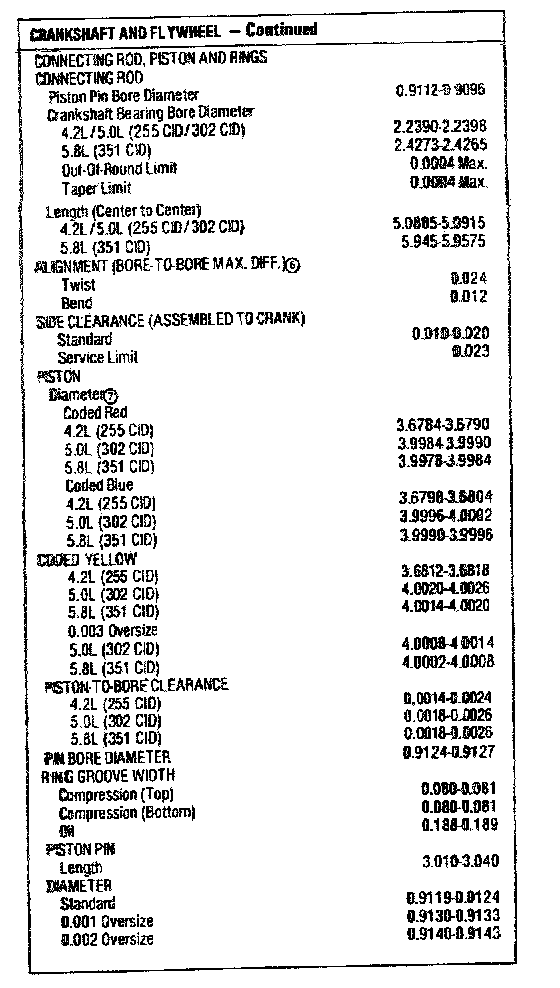

5.0L/5.8L Engine Mechanical Cont.:

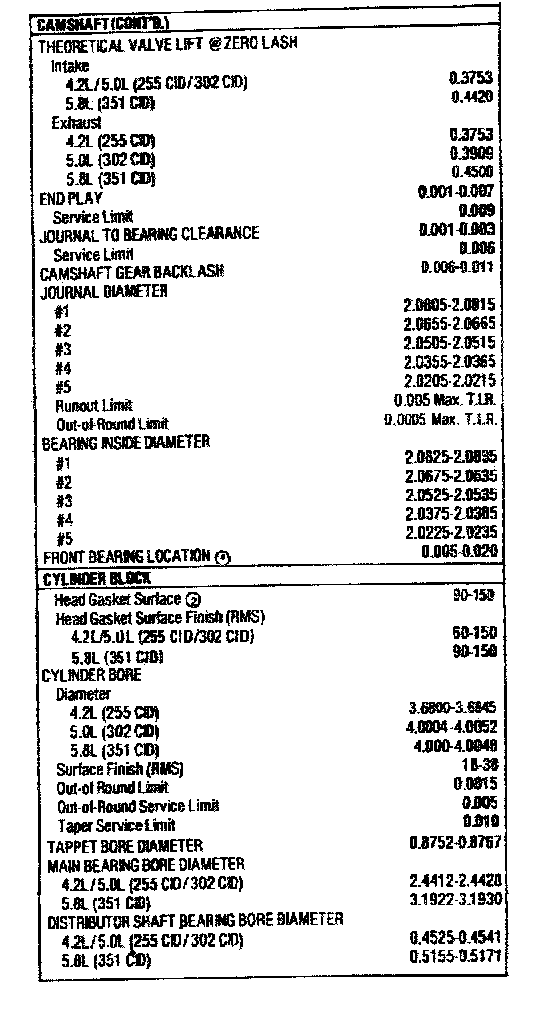

5.0L/5.8L Engine Mechanical Cont.:

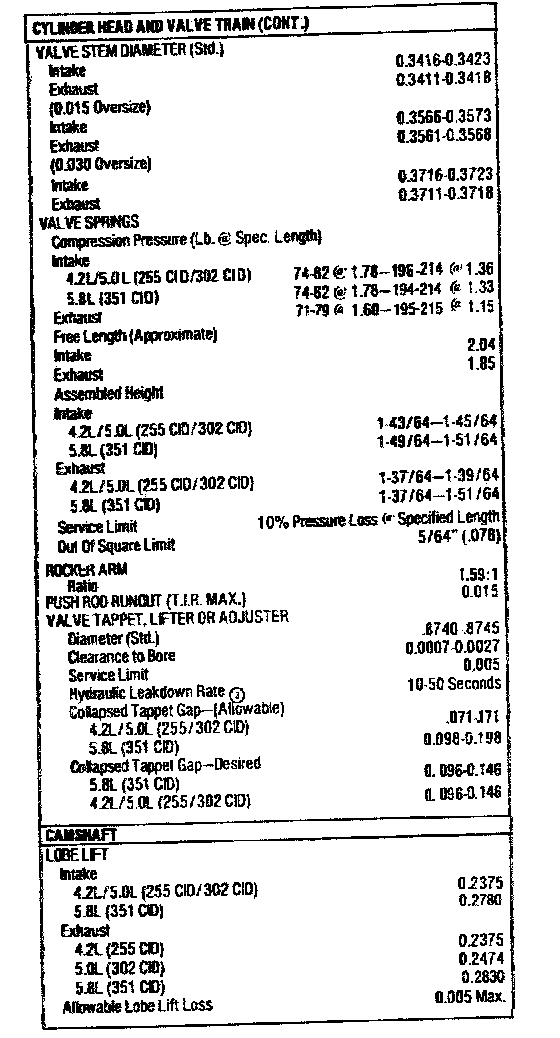

5.0L/5.8L Engine Mechanical Cont.:





5.0L/5.8L Engine Mechanical Cont.:
