Home >> Ford >> 1983 >> Ranger 4WD V6-171 2.8L >> Repair and Diagnosis >> Powertrain Management >> Emission Control Systems >> Locations >> Engine Compartment Reference Diagrams

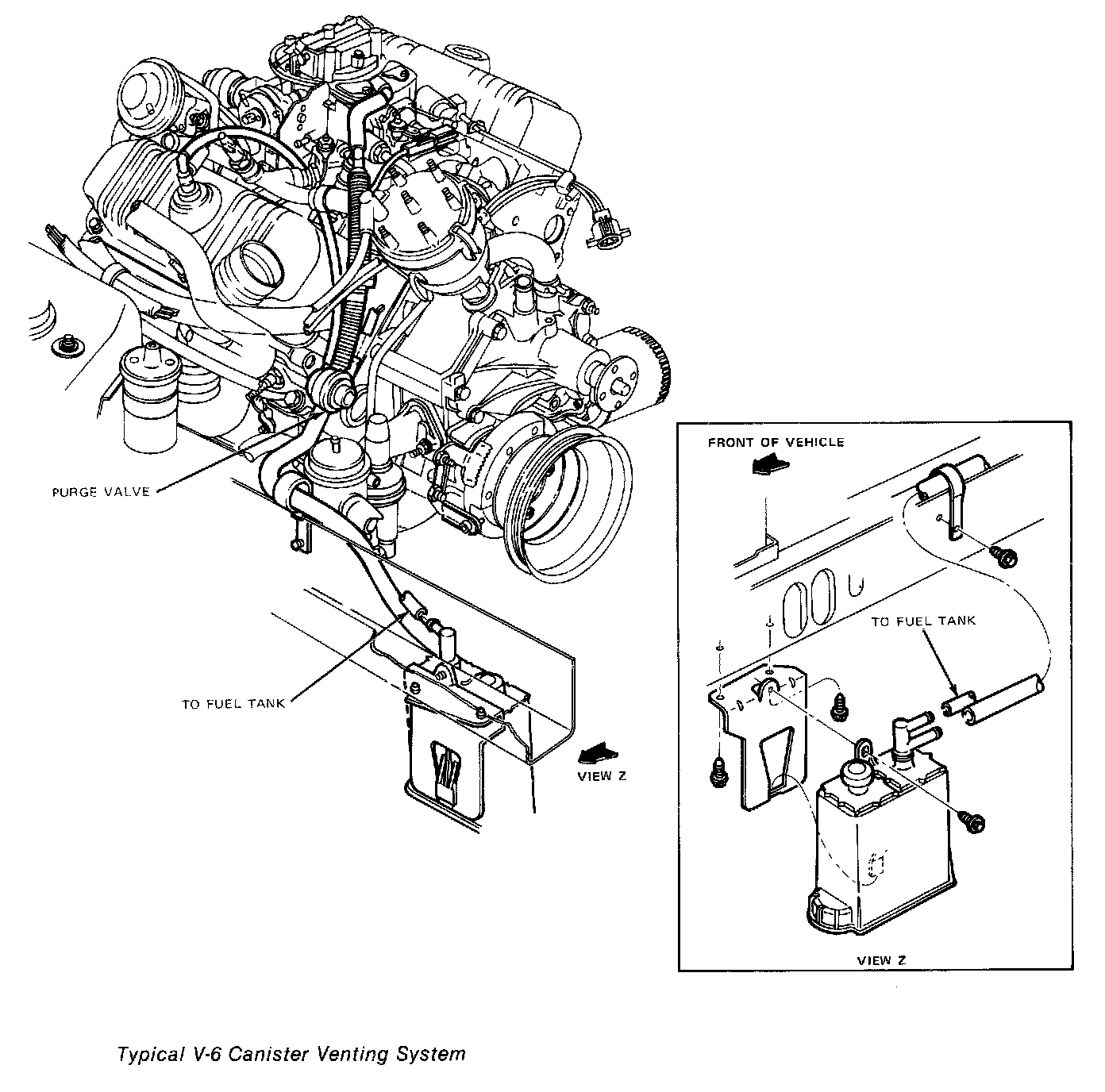

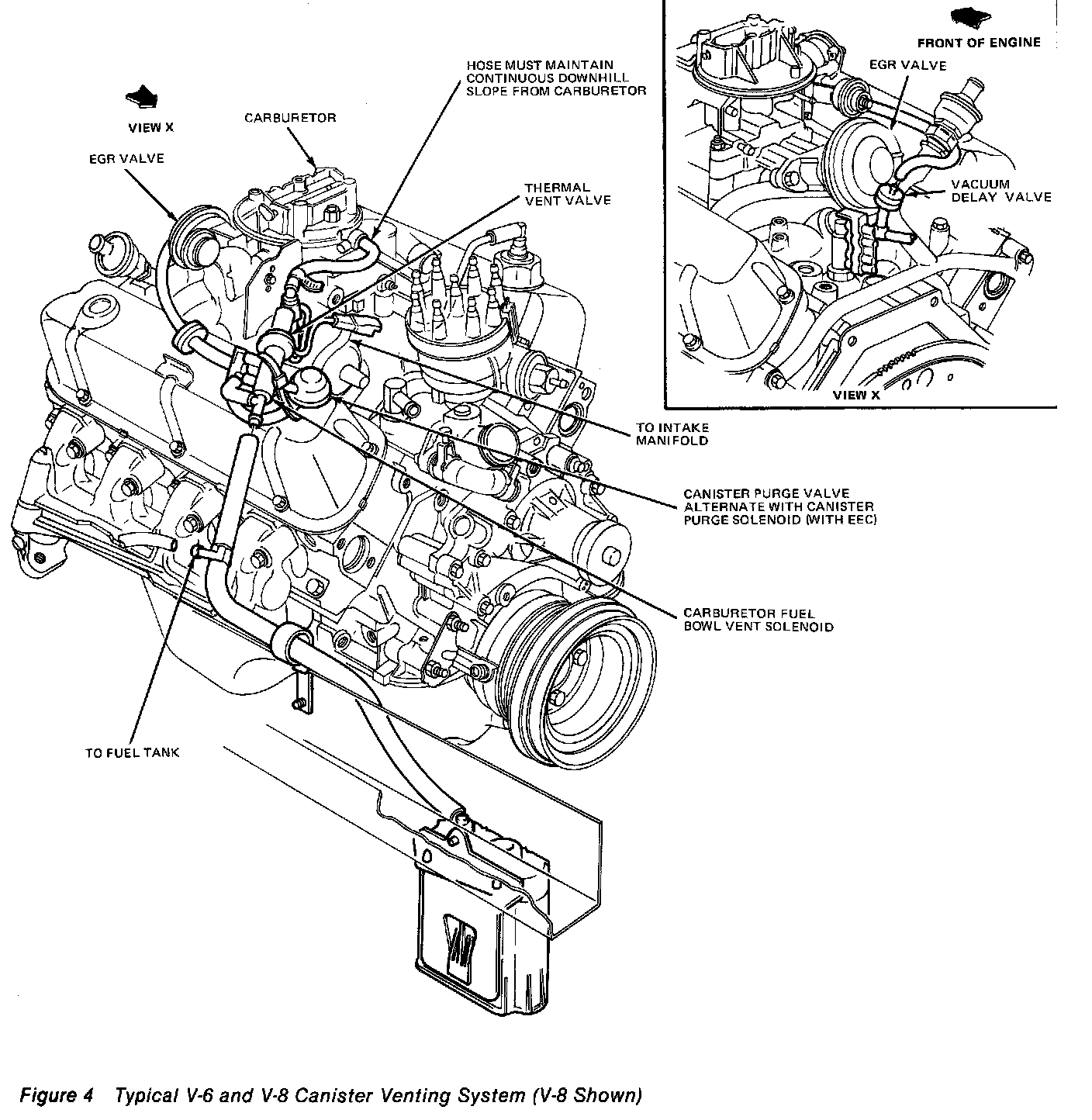

Engine Compartment Reference Diagrams






1982






1983


V-Six 230 CID
