EXP L4-098 1.6L VIN 4 2-bbl
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Emission Control Systems
>>
Diagrams
>>

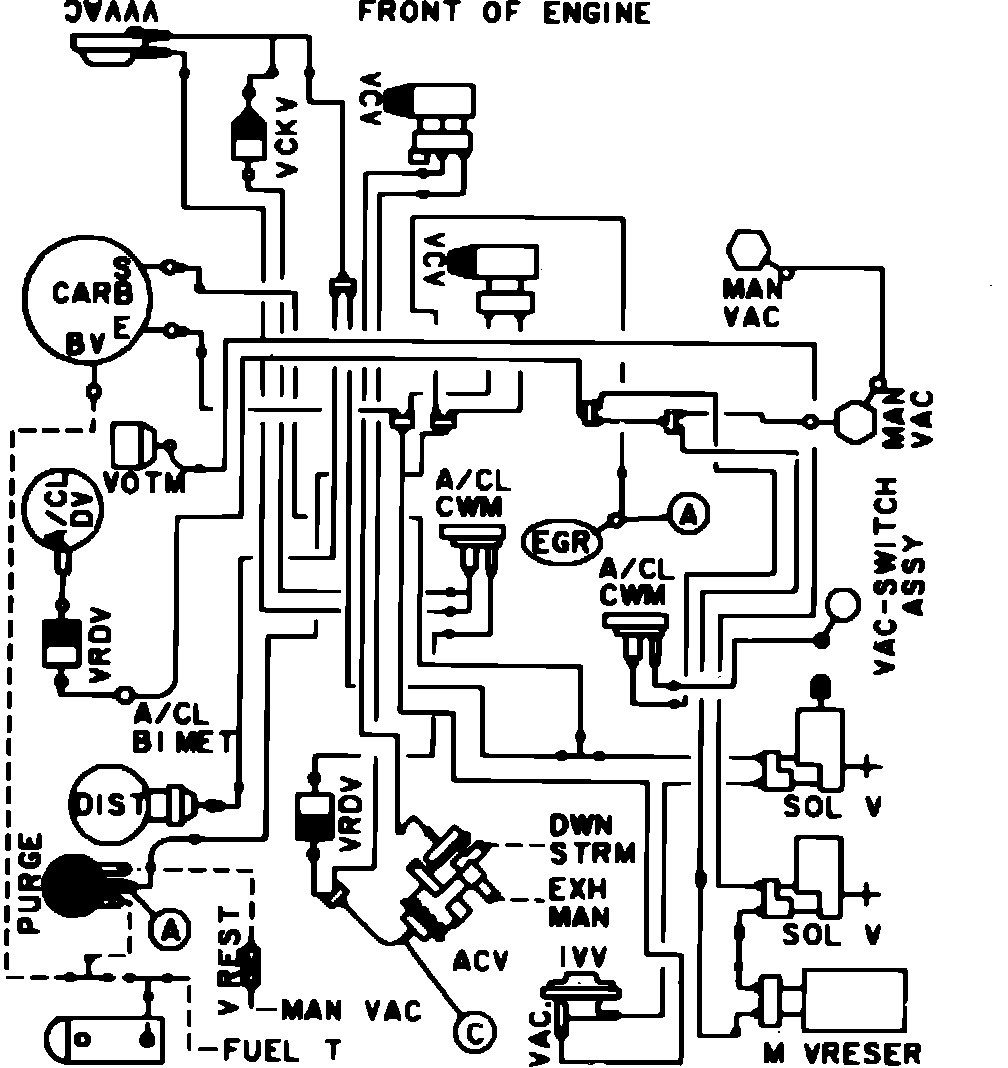

Fig. 8 Calib. Code 1-04S-R0 Calif. W/ A/C
Fig. 8 Calib. Code 1-04S-R0 Calif. W/ A/C
Vacuum hose routing.:
