General Engine Specifications

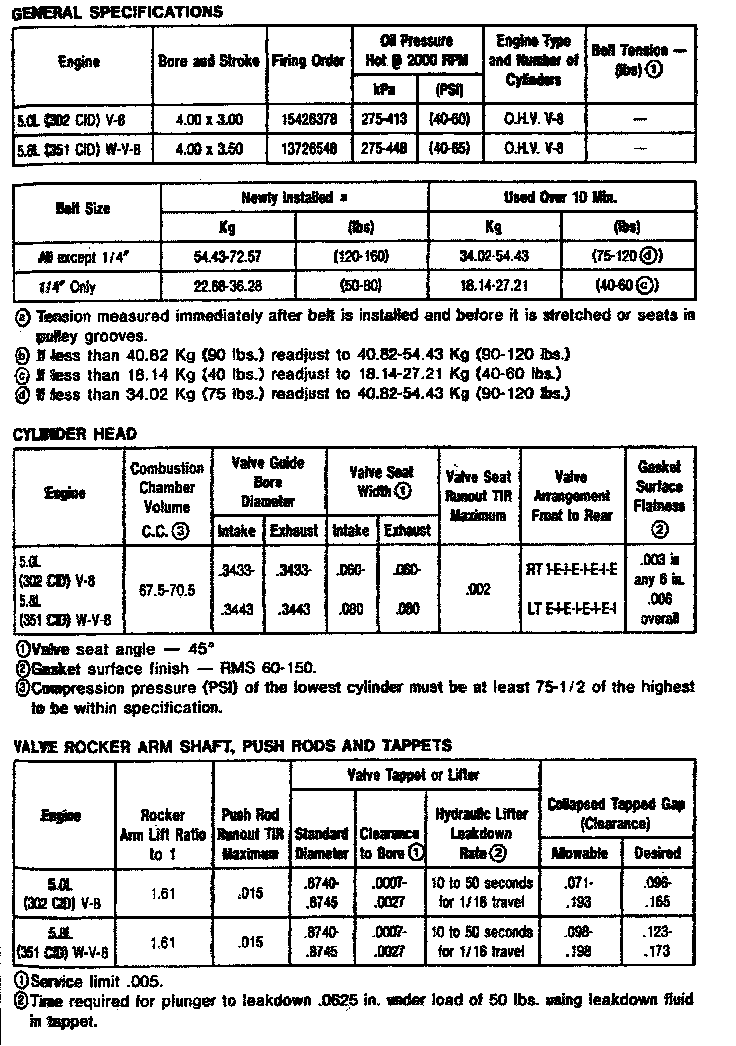

5.0L/5.8L V8 Engine Mechanical Data:

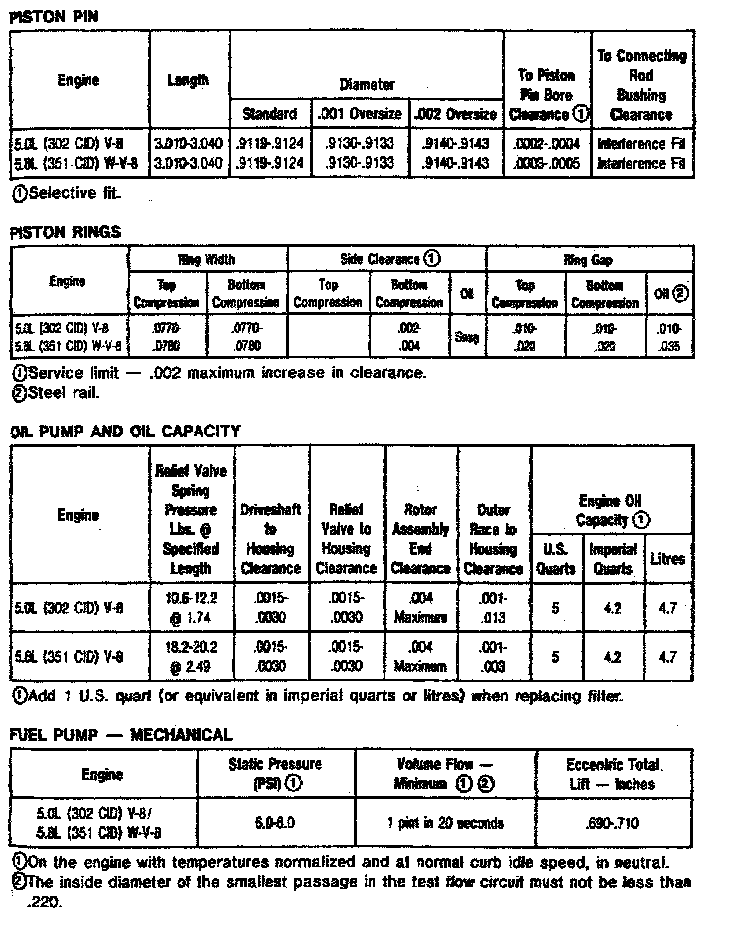

5.0L/5.8L V8 Engine Mechanical Cont.:

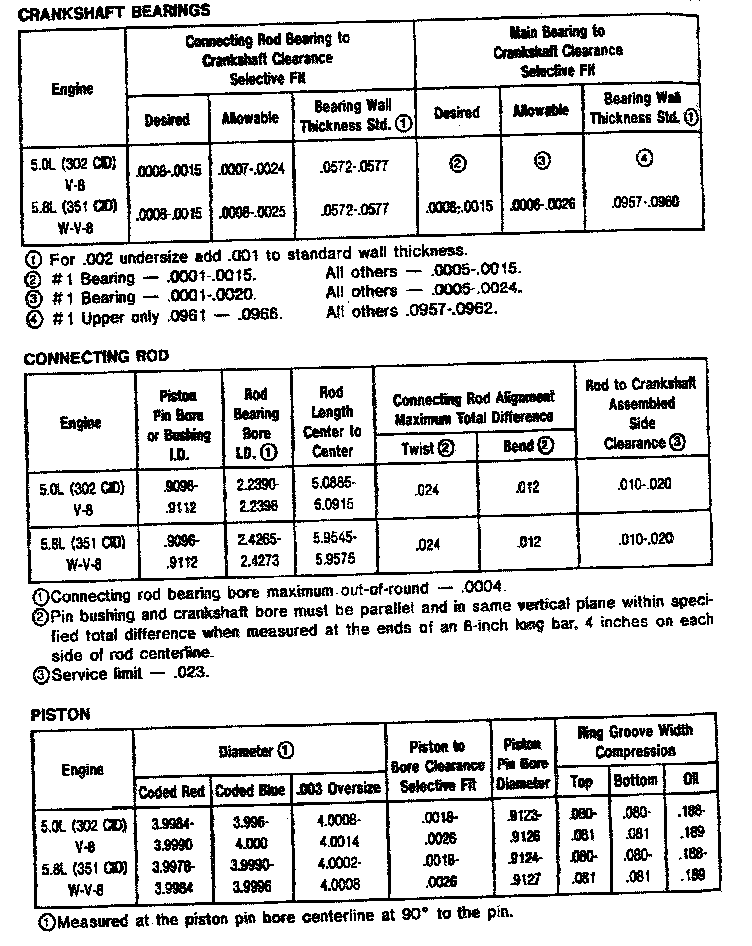

5.0L/5.8L V8 Engine Mechanical Cont.:

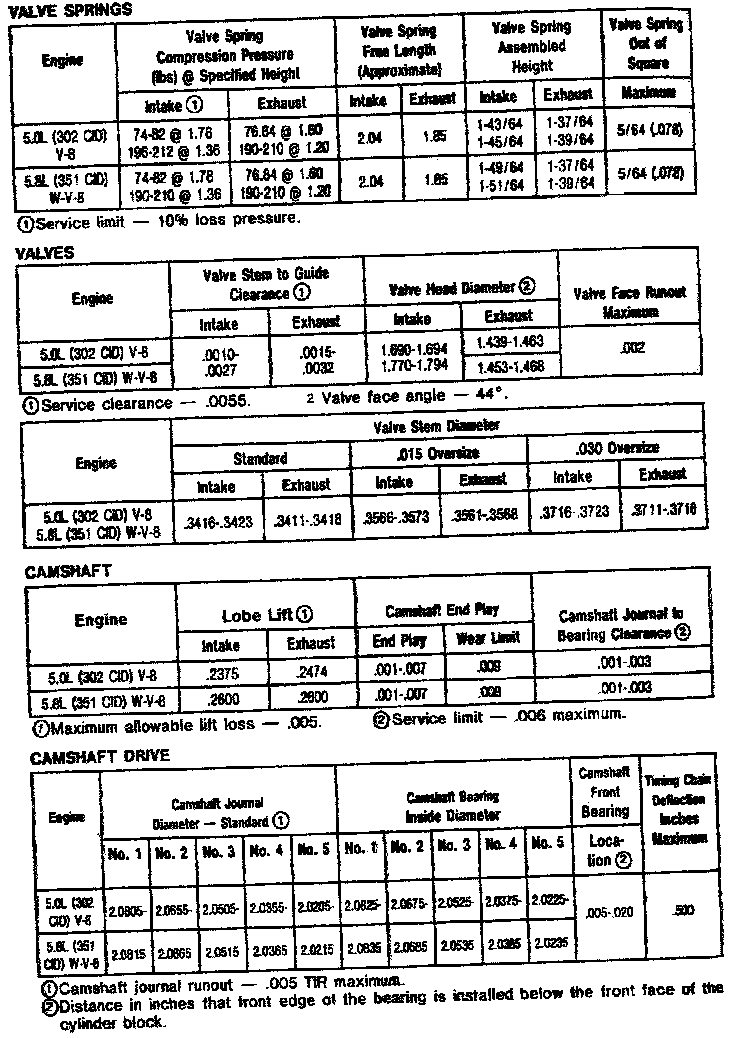

5.0L/5.8L V8 Engine Mechanical Cont.:

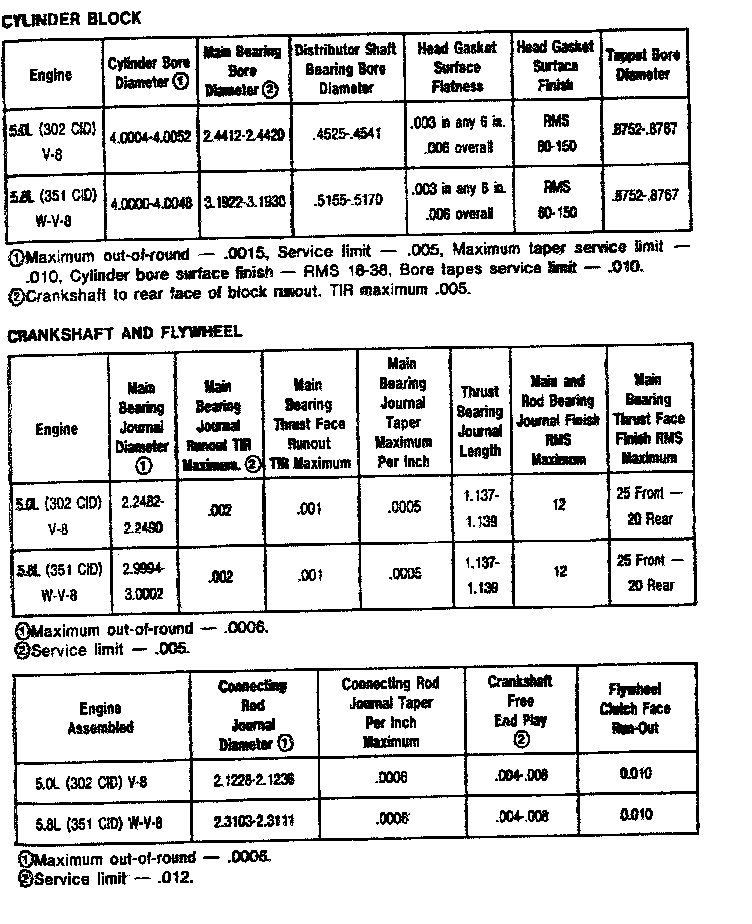

5.0L/5.8L V8 Engine Mechanical Cont.:
