Home >> Ford >> 1982 >> Courier L4-2299cc Courier >> Repair and Diagnosis >> Powertrain Management >> Emission Control Systems >> Diagrams >> Except California

Except California

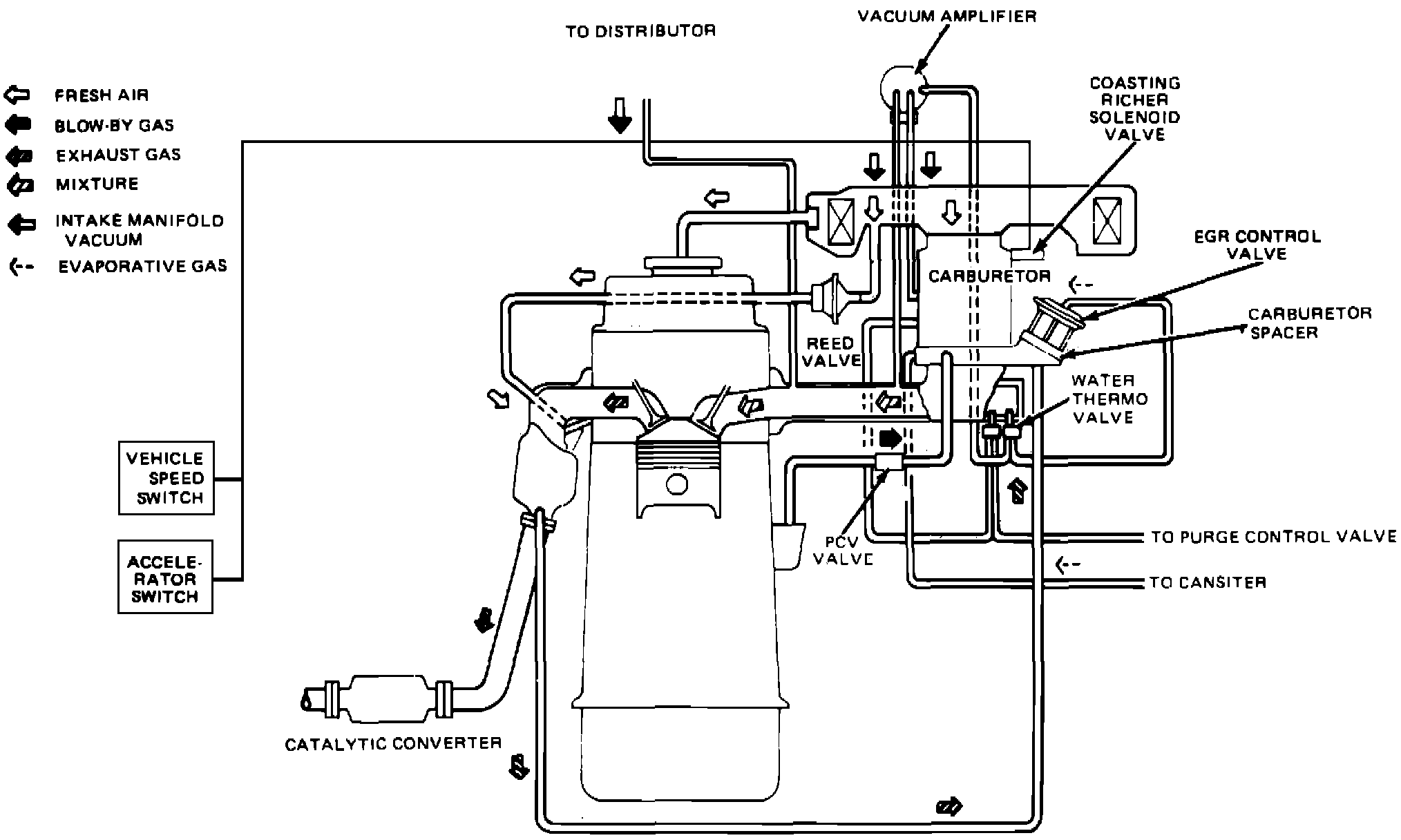

Fig. 59 - Vacuum Hose Routing:
