Home >> Ford >> 1982 >> Courier L4-2299cc Courier >> Repair and Diagnosis >> Powertrain Management >> Emission Control Systems >> Diagrams >> California Models

California Models

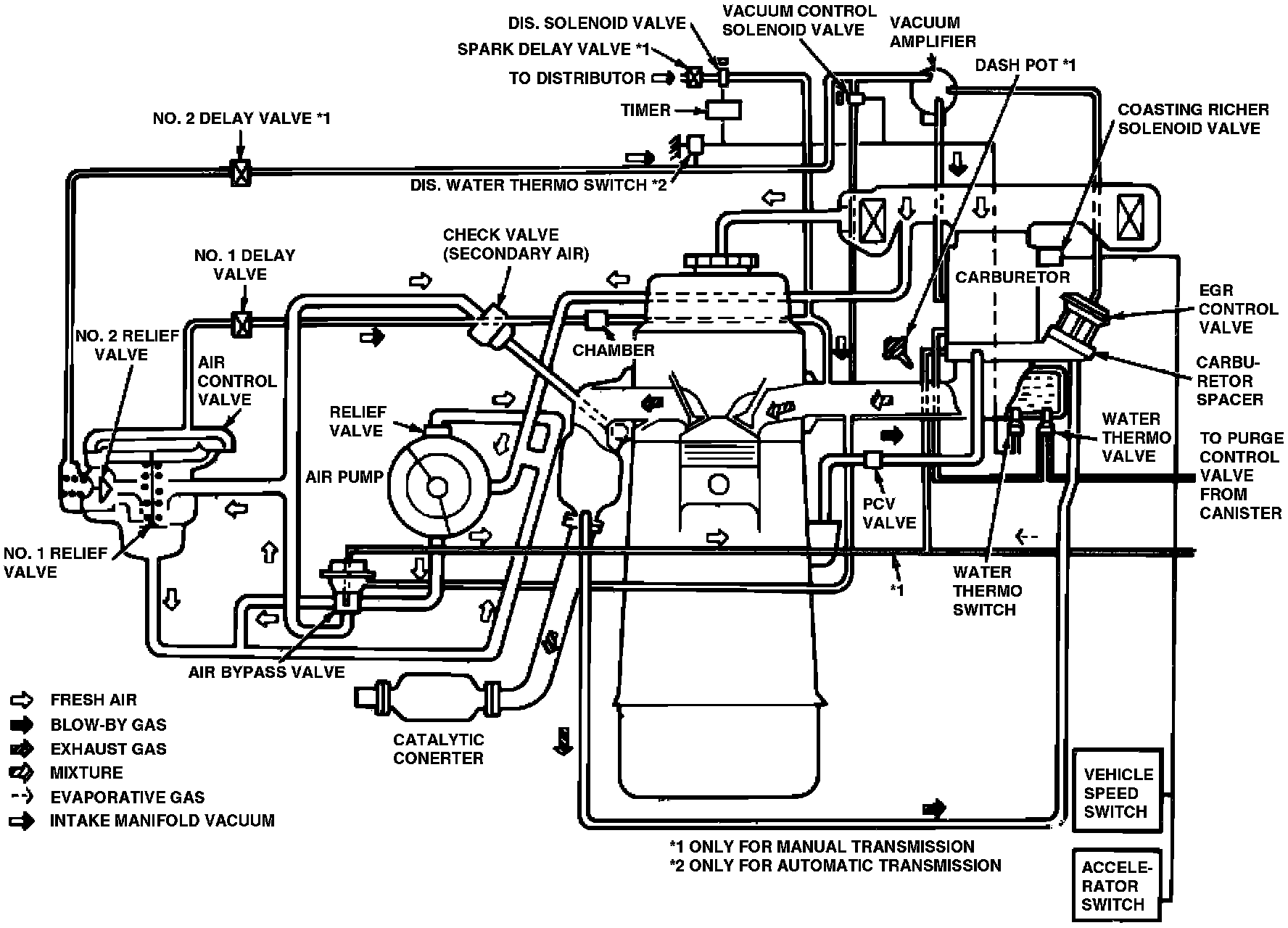

Fig. 60 - Vacuum Hose Routing:
