Brake Operating Unit - Bleed Procedure

NOTE:

The Brake Operating Unit must be bled using a scan tool. The location and name of the bleeder is listed below as well as it can be found in the DESCRIPTION .

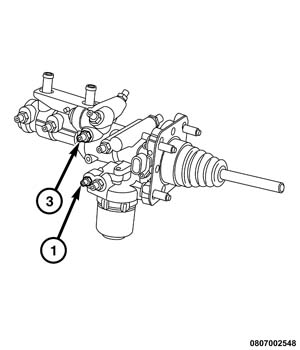

Fig 1: PFS Low Pressure Chamber Bleeder Screw & Boost Chamber Inlet Bleeder Screw

Courtesy of CHRYSLER GROUP, LLC

1. PFS Low Pressure Chamber Bleeder Screw

3. Boost Chamber Inlet Bleeder Screw

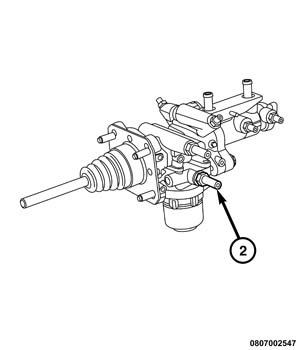

Fig 2: PFS High Pressure Chamber Bleeder Screw

Courtesy of CHRYSLER GROUP, LLC

2. PFS High Pressure Chamber Bleeder Screw

Follow the scan tool on-screen instructions to properly bleed the Brake Operating Unit. Use the graphics above to identify the proper bleeder screws to open/close based on the scan tool information.
