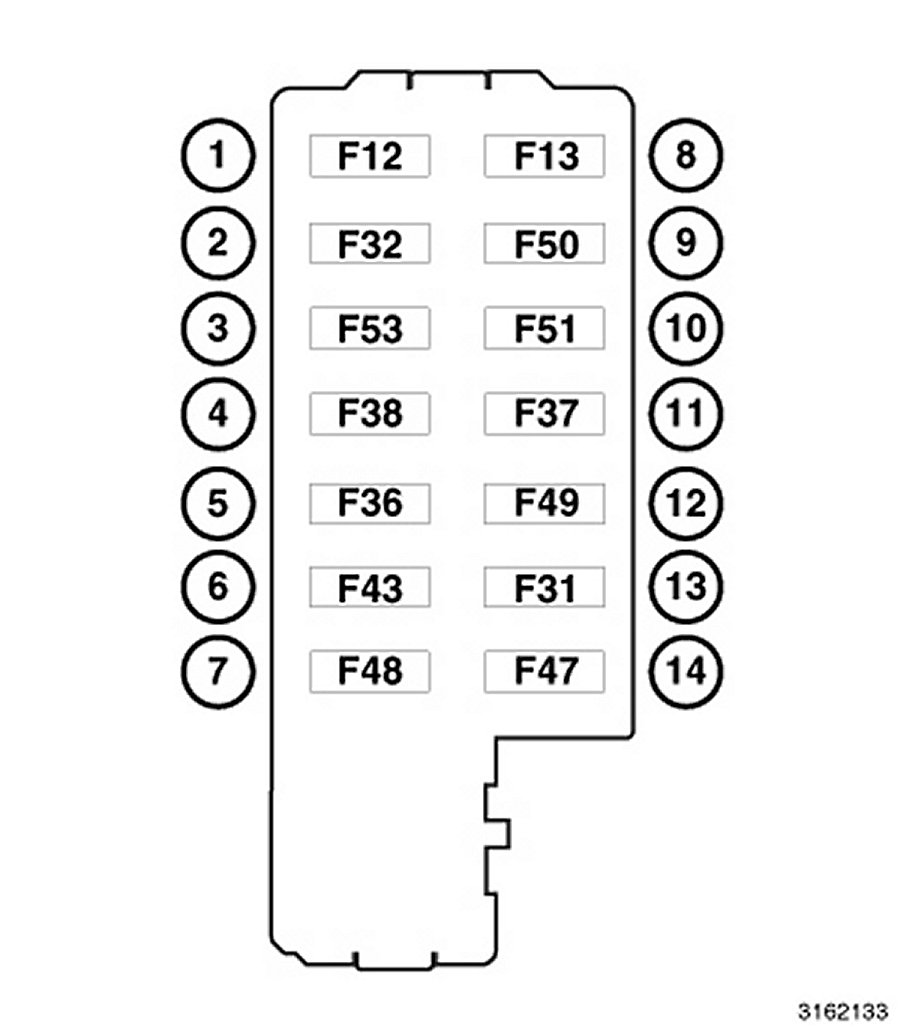

Interior Fuse Panel

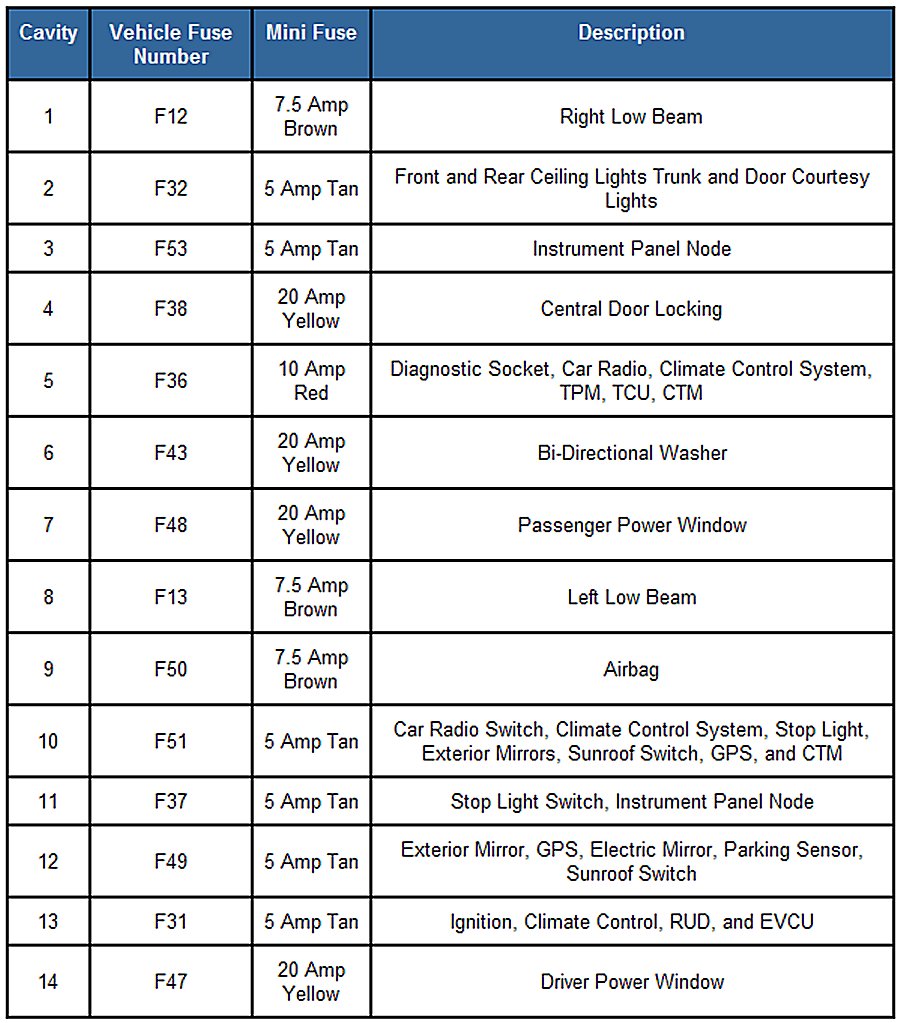

Interior Fuses











The interior fuse panel is part of the Body Control Module (BCM) and is located on the driver's side under the instrument panel.
