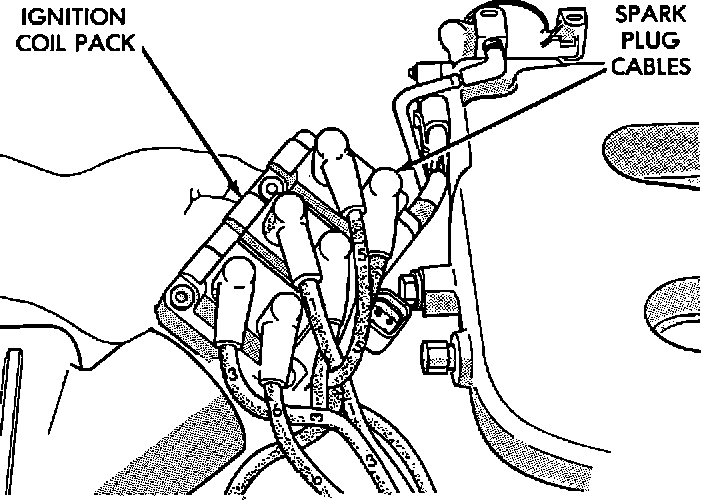

Ignition Coil: Service and Repair

Cylinder I.D.:

Spark Plug Cable I.D.:

REMOVAL
1. Remove spark plug cables from coil.
2. Remove electrical connector.
3. Remove ignition coil fasteners.


INSTALLATION
1. Install ignition coil fasteners and torque to 12 Nm(105 in-lbs).
2. Install electrical connector.
3. Install spark plug cables to coil.
