Home >> Eagle >> 1995 >> Vision V6-201 3.3L >> Repair and Diagnosis >> Locations >> Splice Locations >> Figure 9

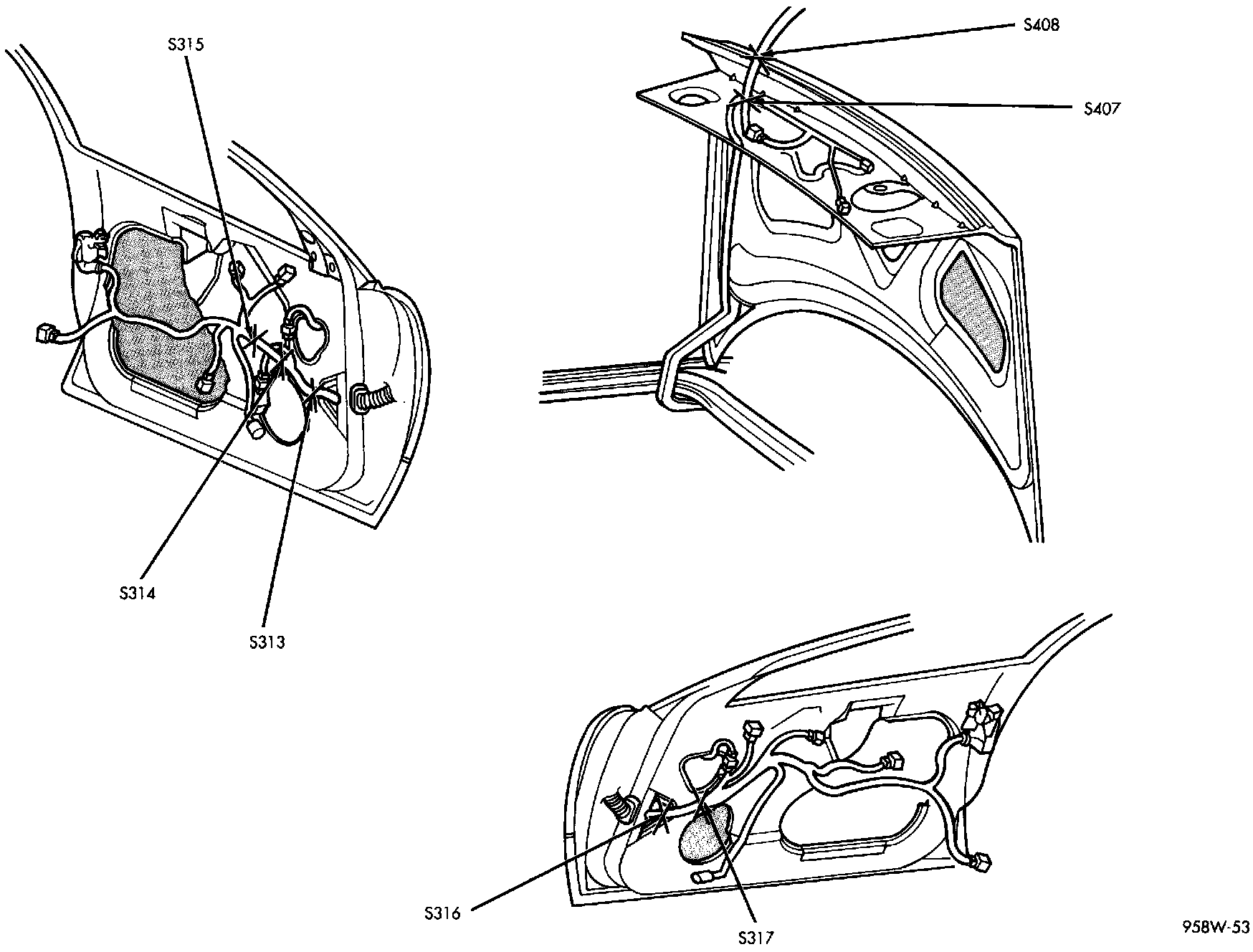

Figure 9

Door/Deck Lid Splices:
