Fuse Block
Fuse Block

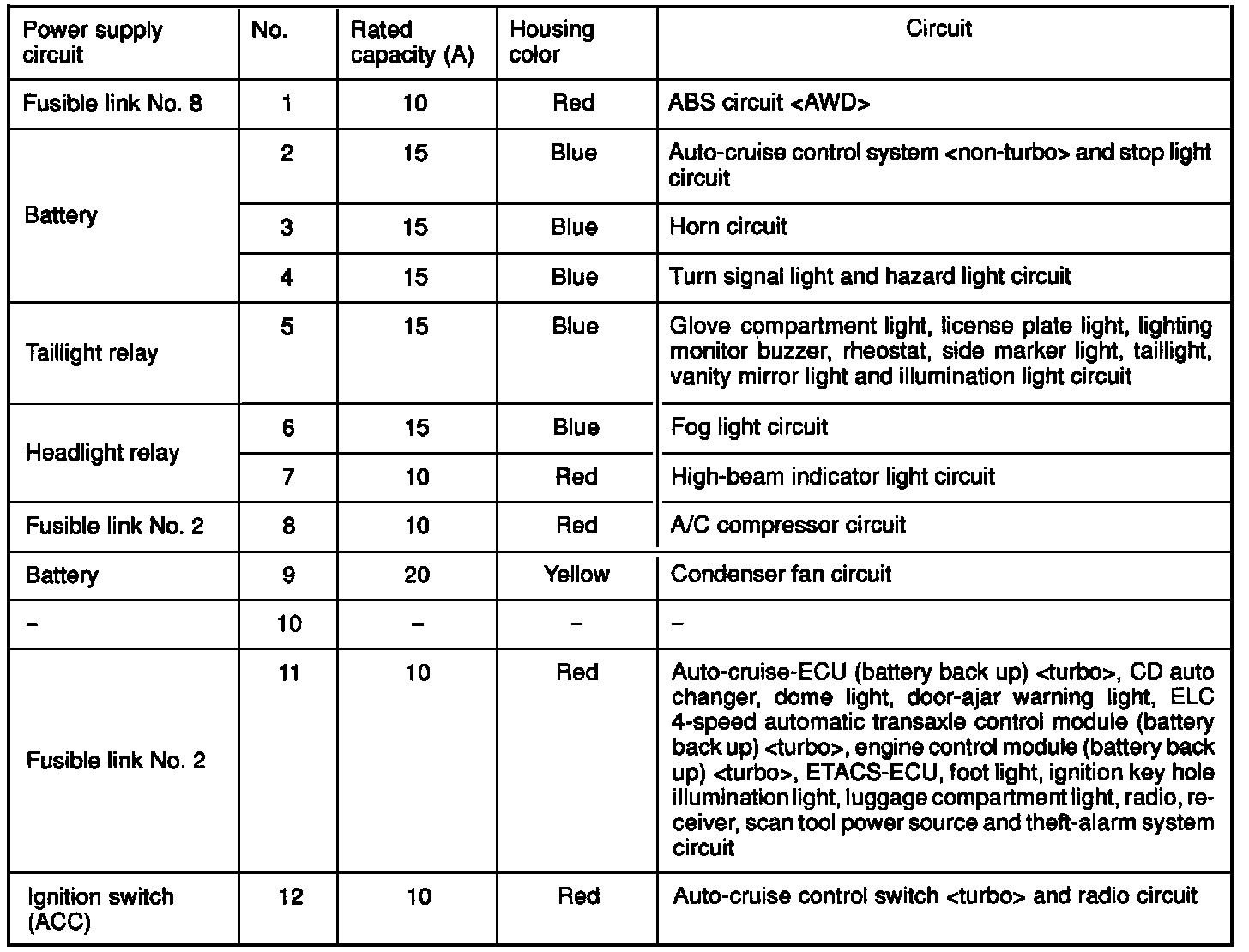

Dedicated Fuses (Relay Box In Engine Compartment):
Dedicated Fuses (Relay Box In Engine Compartment):
Dedicated Fuses (Interior Relay Box):

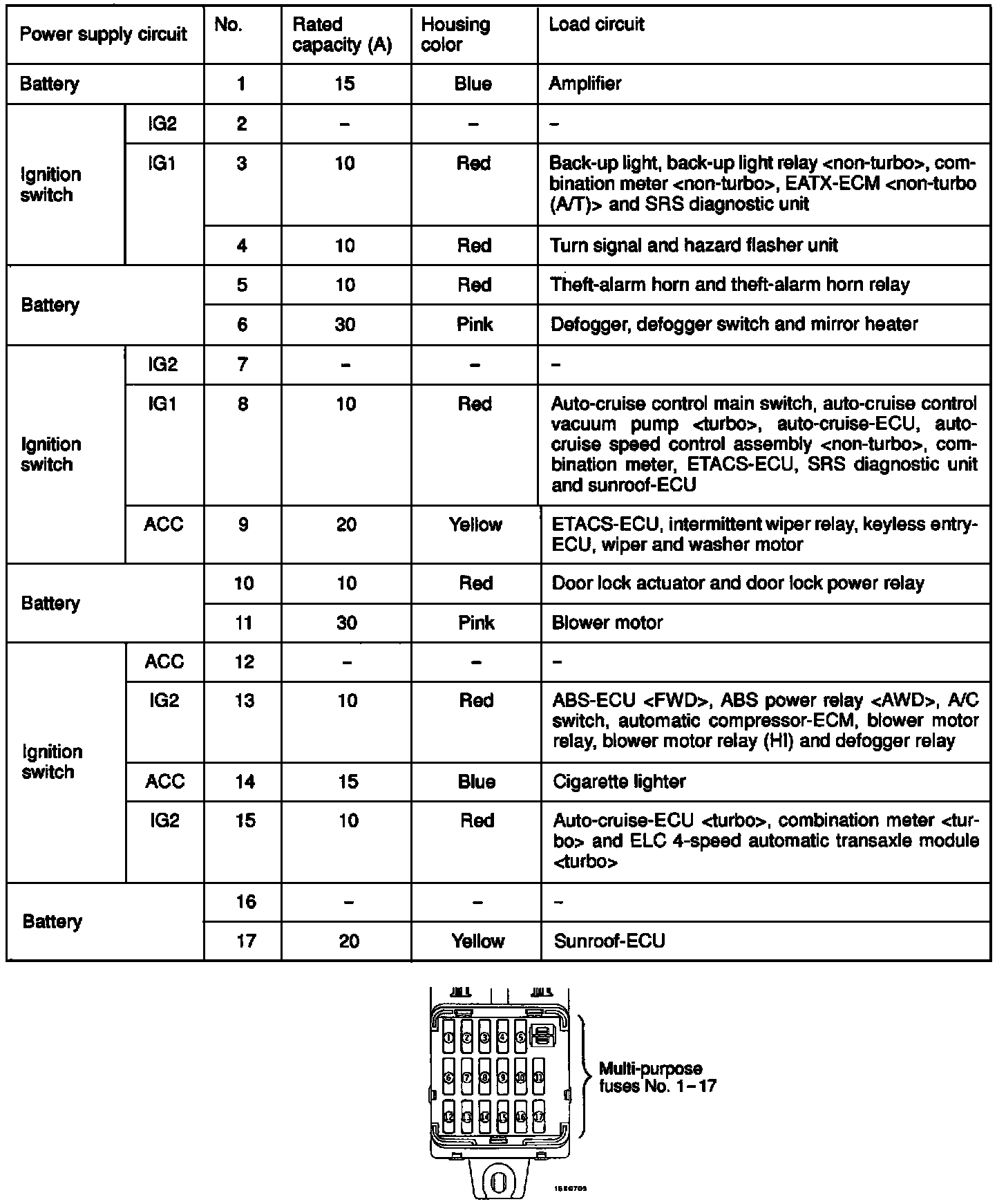

Multi Purpose Fuse (In Junction Block):
