Generator Replacement

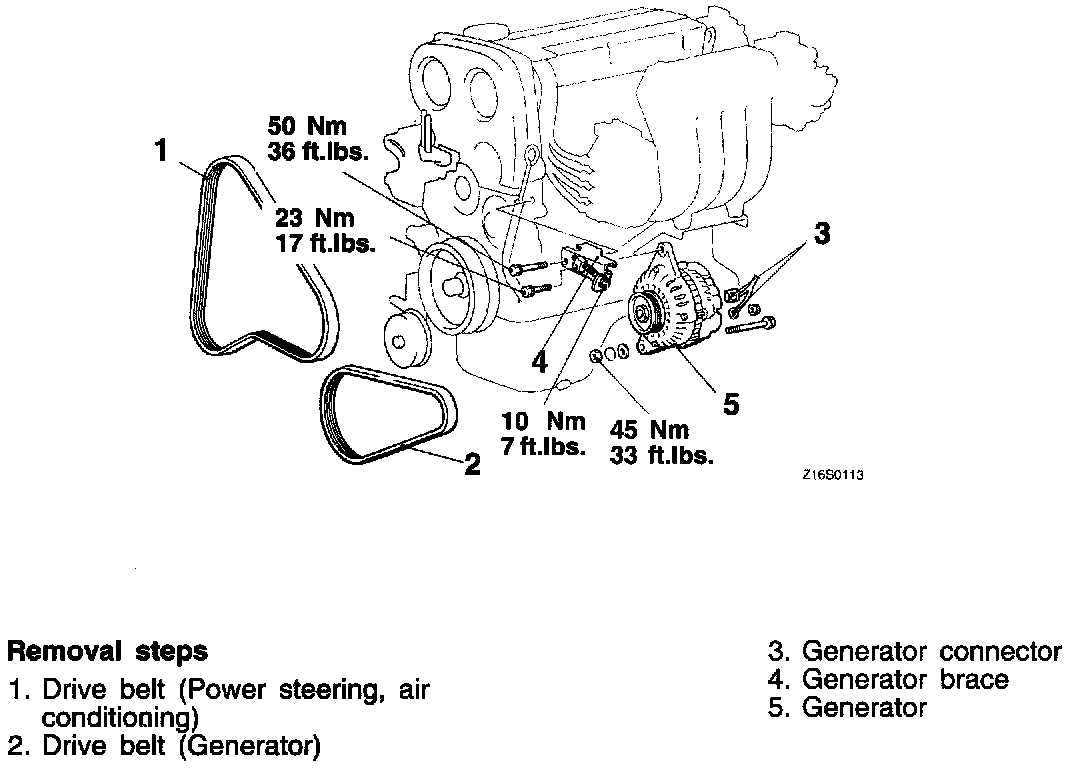

Generator - Removal And Installation:

REMOVE
1. Drive belt (Power steering, air conditioning)
2. Drive belt (Generator)
3. Generator connector
4. Generator brace
5. Generator


INSTALL
1. Generator
2. Generator brace
3. Generator connector
4. Drive belt (Generator)
5. Drive belt (Power steering, air conditioning)
