Transmission Control Systems: Locations

Component Locations:

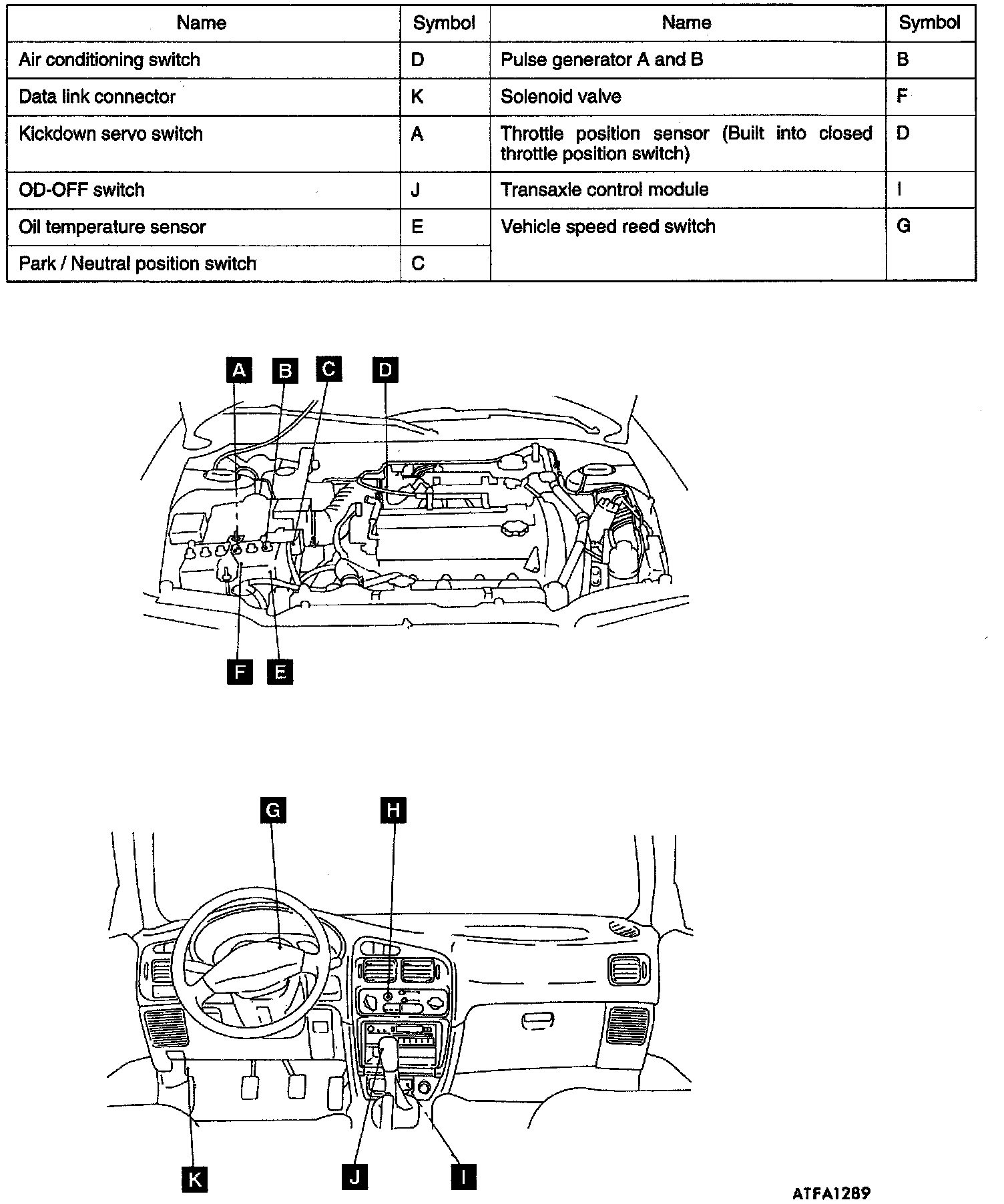

Index

Component Locations:

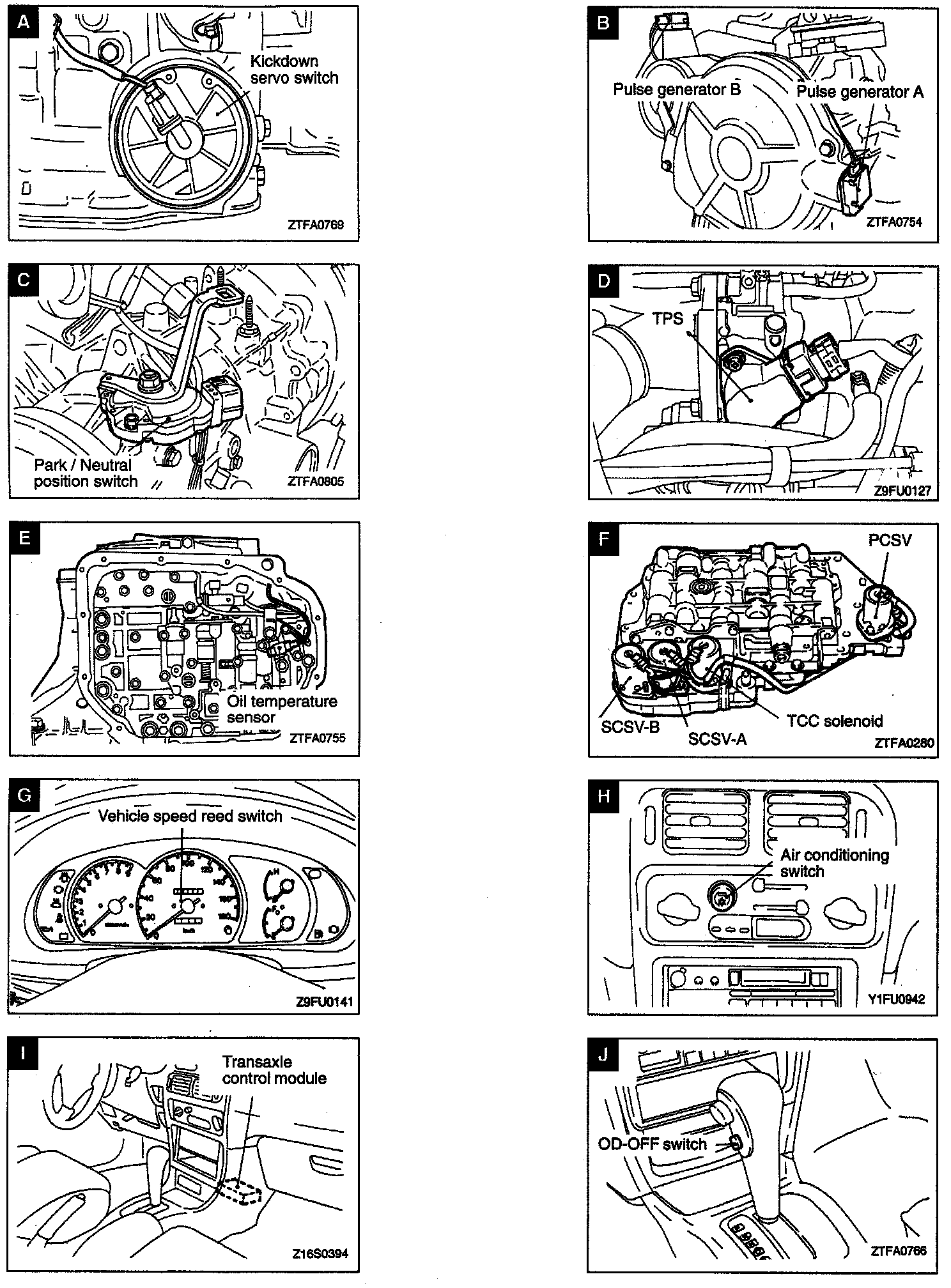

Close-up views A - J

Component Locations:





Close-up view K
