Generator Replacement

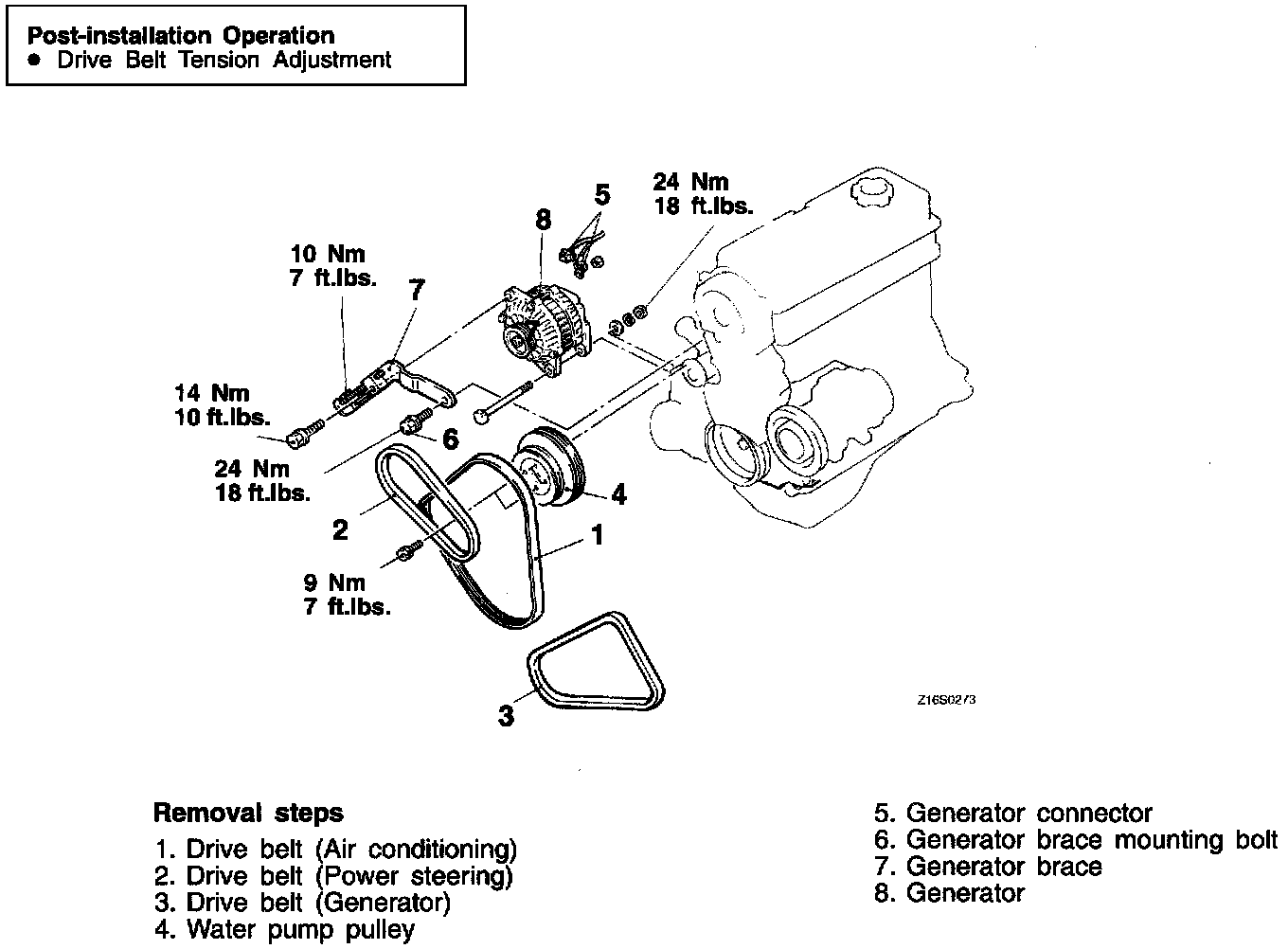

Generator - Removal And Installation:

REMOVE
1. Drive belt (Air conditioning)
2. Drive belt (Power steering)
3. Drive belt (Generator)
4. Water pump pulley
5. Generator connector
6. Generator brace mounting bolt
7. Generator brace
8. Generator


INSTALL
1. Generator
2. Generator brace
3. Generator brace mounting bolt
4. Generator connector
5. Water pump pulley
6. Drive belt (Generator)
7. Drive belt (Power steering)
8. Drive belt (Air conditioning)
