Eagle
>>
1994
>>
Vision V6-201 3.3L
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Diagrams
>>
Electrical Diagrams
>>

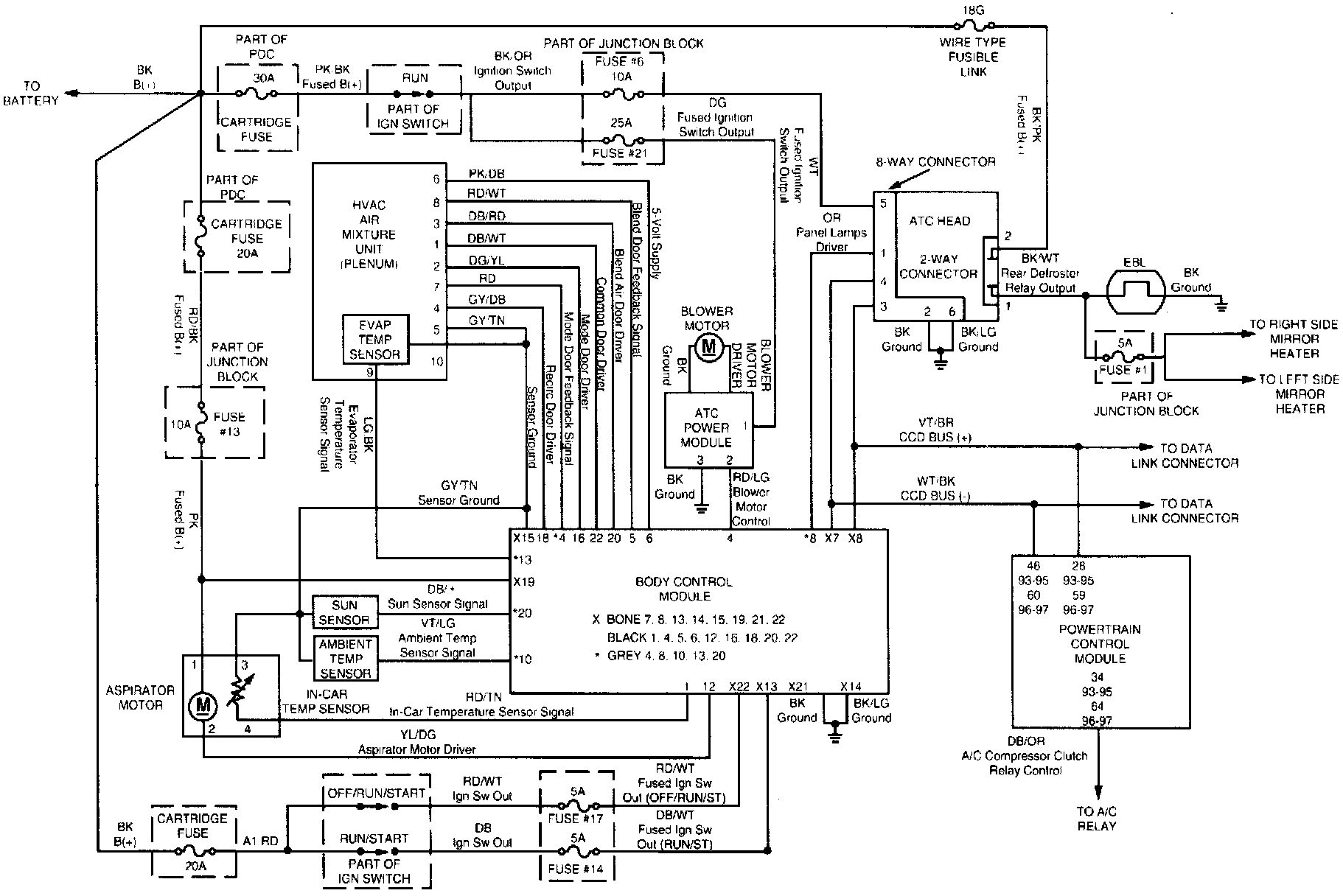

System Schematic
>>
Automatic Temperature Control System
Automatic Temperature Control System
