LEMON Manuals
: Even more car manuals for everyone
Home
>>
Eagle
>>
1994
>>
Vision V6-201 3.3L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Amplifier, Sound System
Amplifier, Sound System

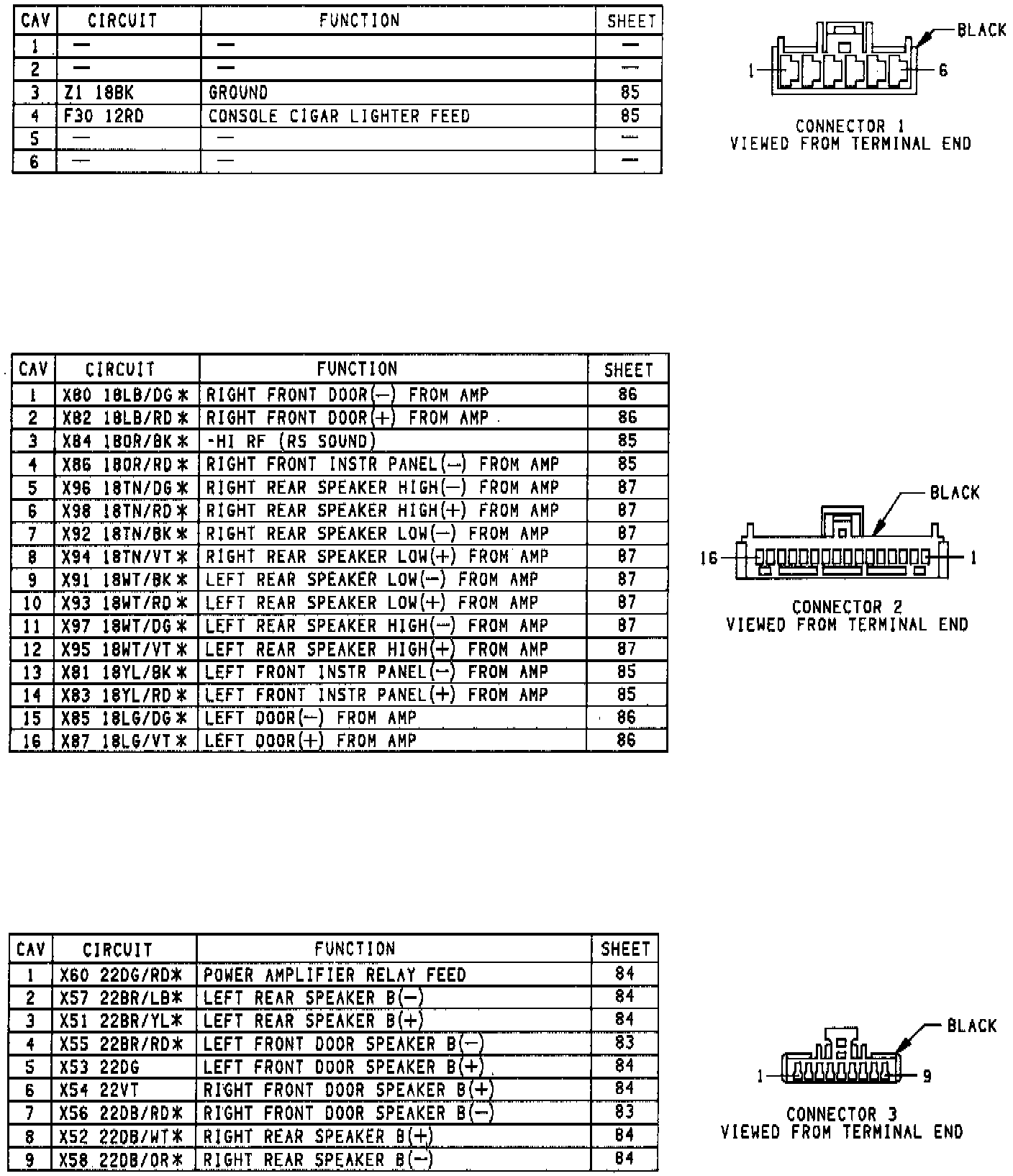

RS Amplifier Connectors:
