Component Locations

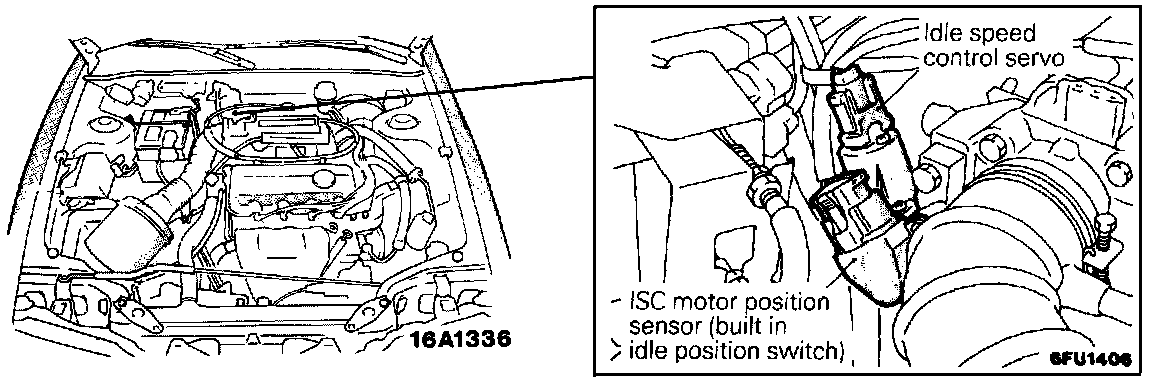

Idle Speed Control Servo, ISC Motor Position Sensor:






Mounted on the throttle chamber, on the firewall side.
