Data Link Connector: Description and Operation

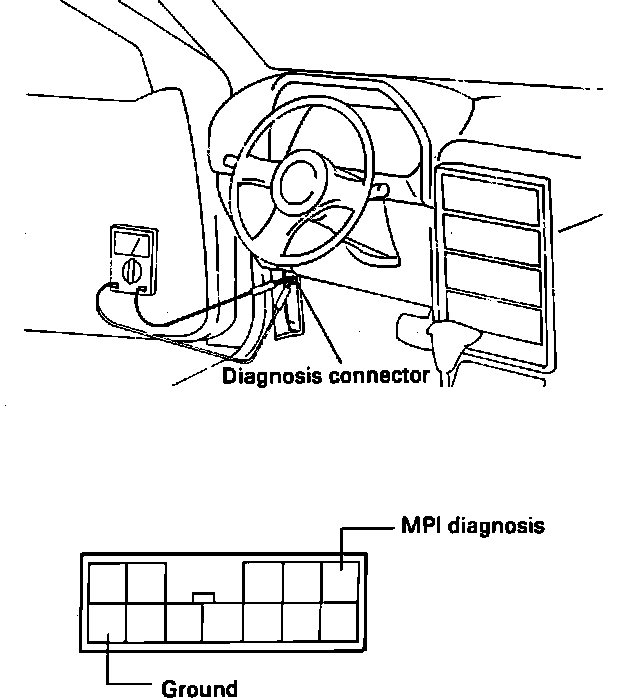

Diagnostic Connector Location:

The diagnostic check connector, located in the left kick panel, is used to extract fault code information. See ON-BOARD DIAGNOSTICS.
