Starter Motor

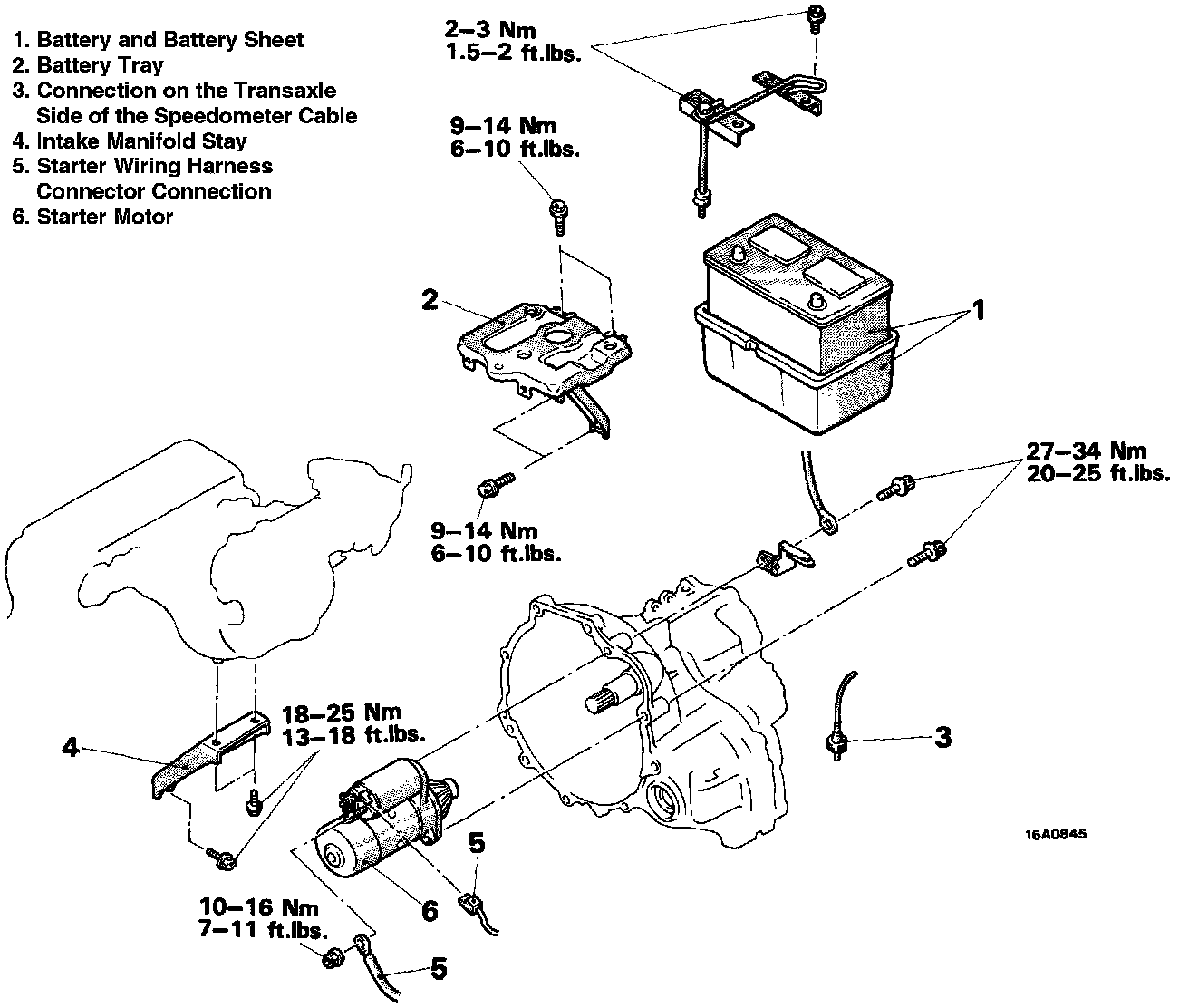

Starter Motor Removal And Installation:

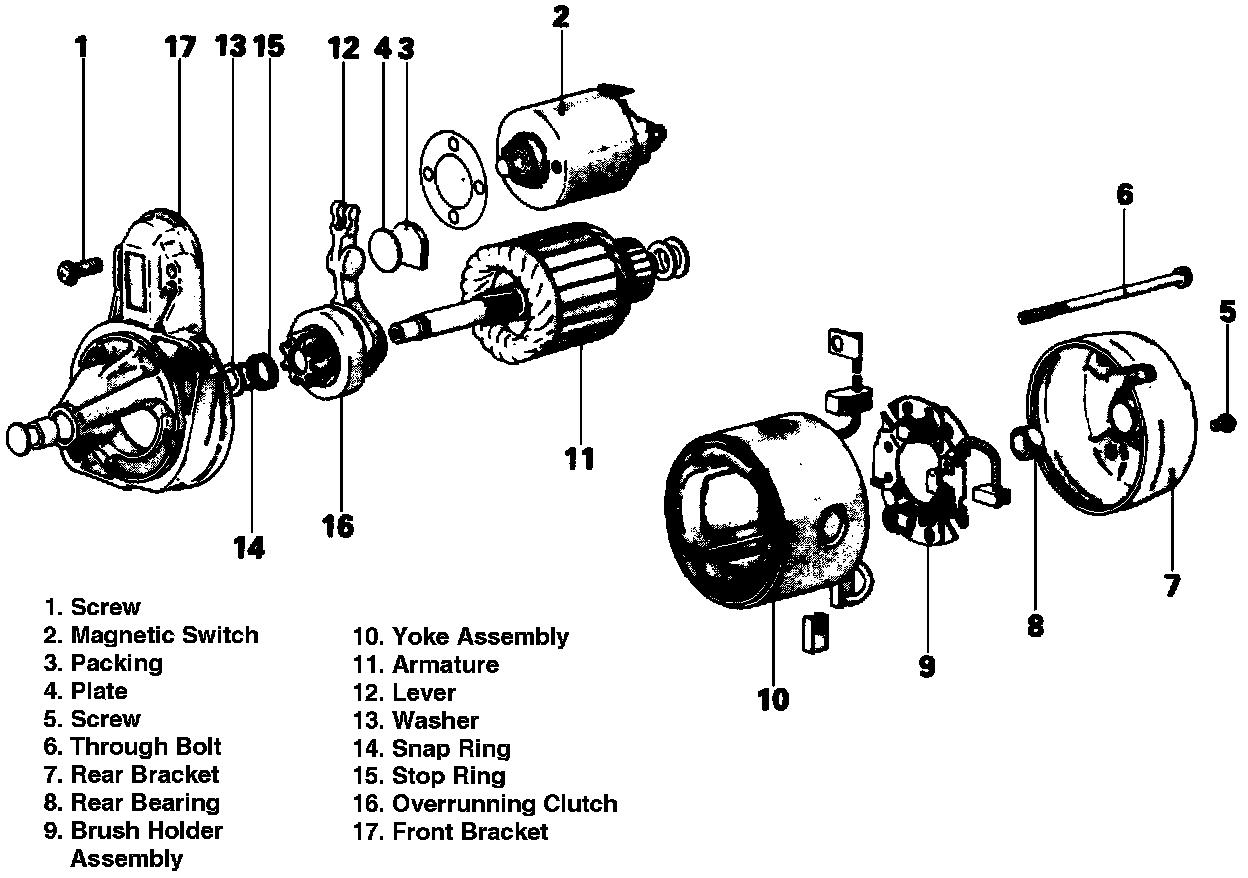

Starter Motor (Direct Drive Type) Disassembly And Reassembly:

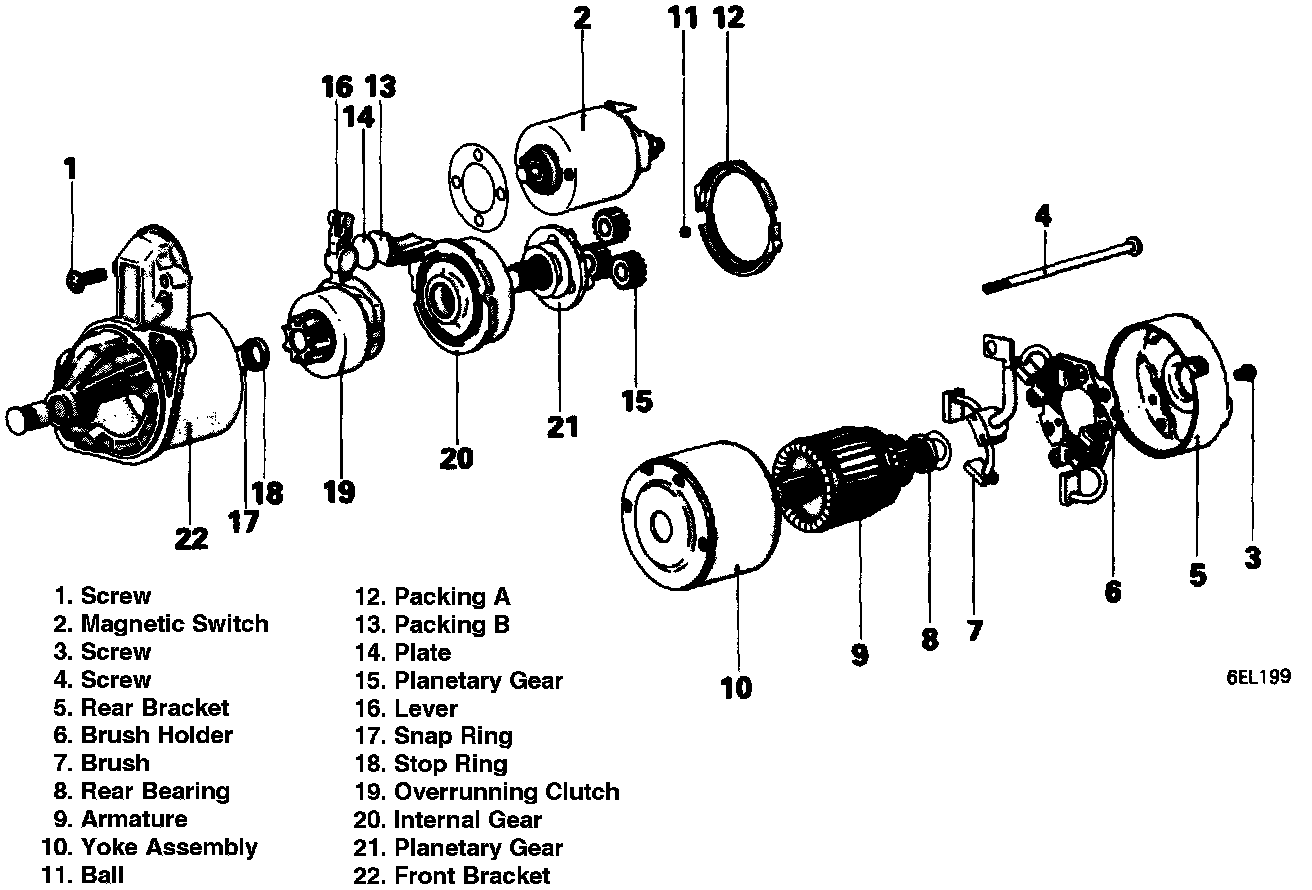

Starter Motor (Reduction Drive Type):
