Standard Waveform Observation Conditions

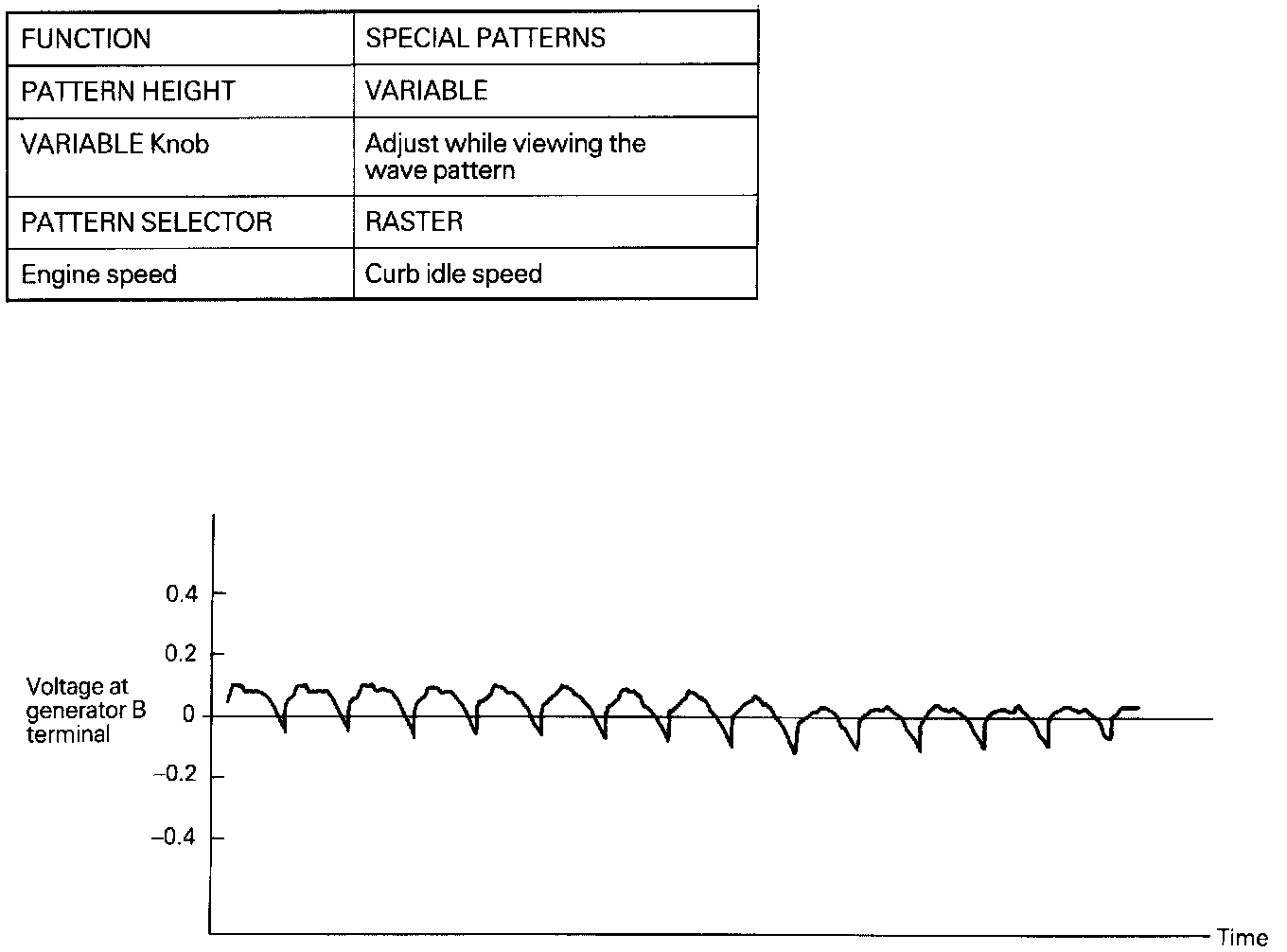

Standard Waveform - Observation Conditions:

Standard Waveform

Standard Waveform - Wave Undulation - Normal:

NOTE:
Furthermore, the voltage waveform of the generator B terminal can undulate as shown at left. This waveform is produced when the regulator operates according to fluctuations in the generator load (current), and is normal for the generator.
