Home >> Eagle >> 1994 >> Summit L4-1795cc 1.8L SOHC >> Repair and Diagnosis >> Powertrain Management >> Transmission Control Systems >> Locations

Transmission Control Systems: Locations

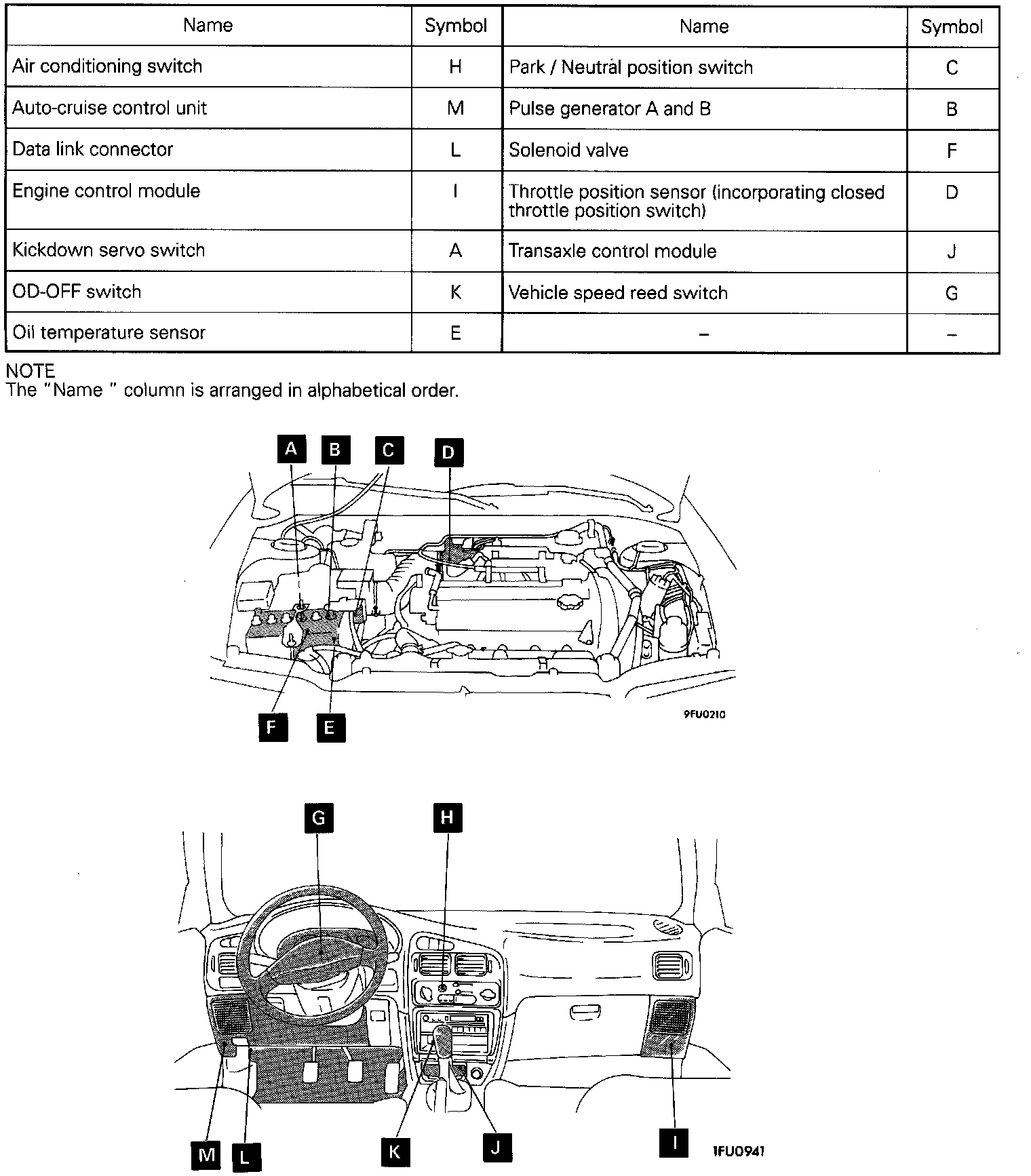

Transmission Control Components






Component A






Component B

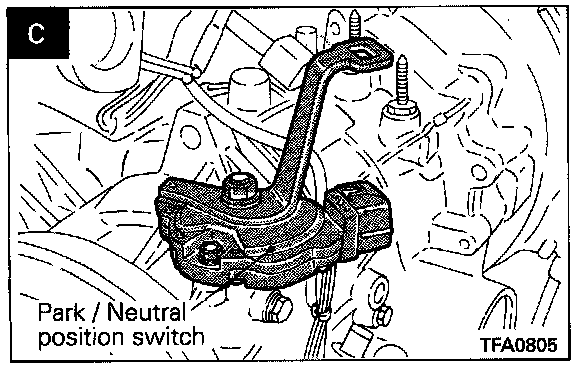

Component C






Component D






Component E






Component F






Component G






Component H






Component I






Component J






Component K






Component L






Component M
