Home >> Eagle >> 1994 >> Summit L4-1795cc 1.8L SOHC >> Repair and Diagnosis >> Power and Ground Distribution >> Fuse >> Locations >> Multi-Purpose Fuse

Multi-Purpose Fuse

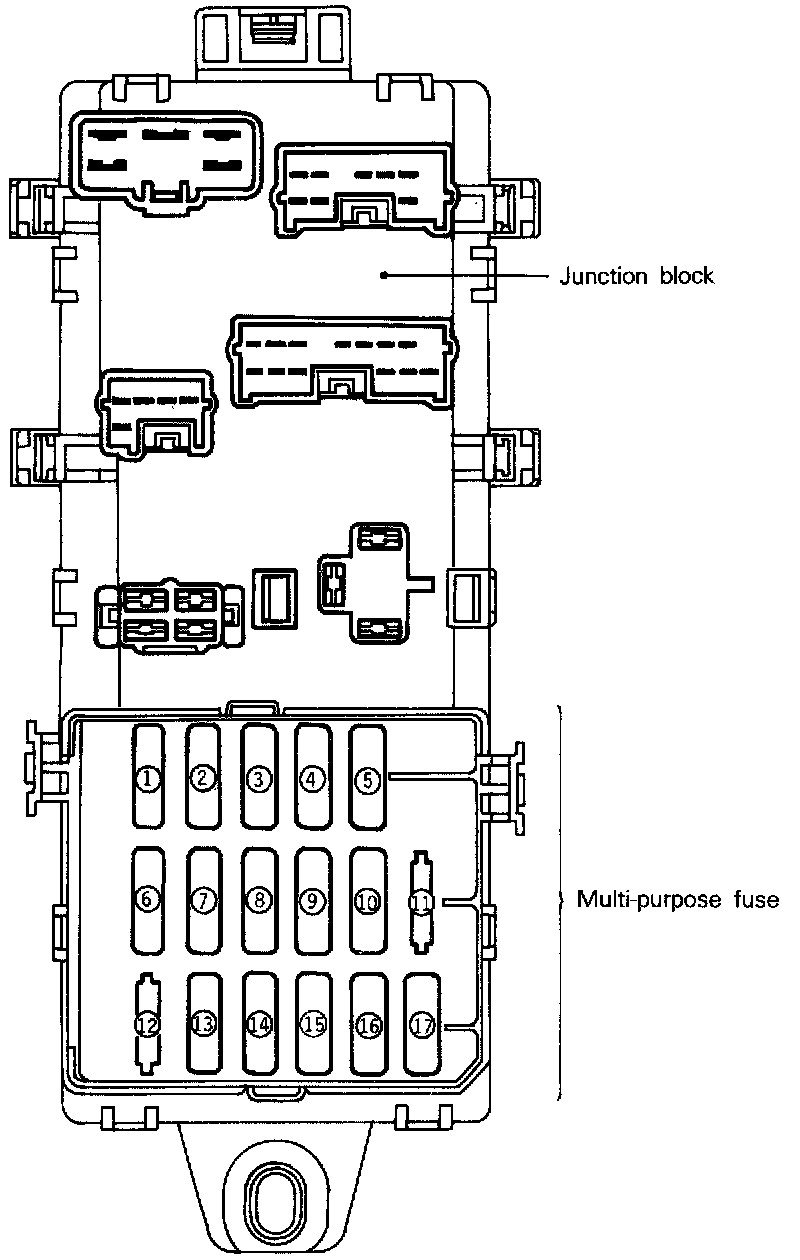

Multi-Purpose Fuse (In Junction Block):

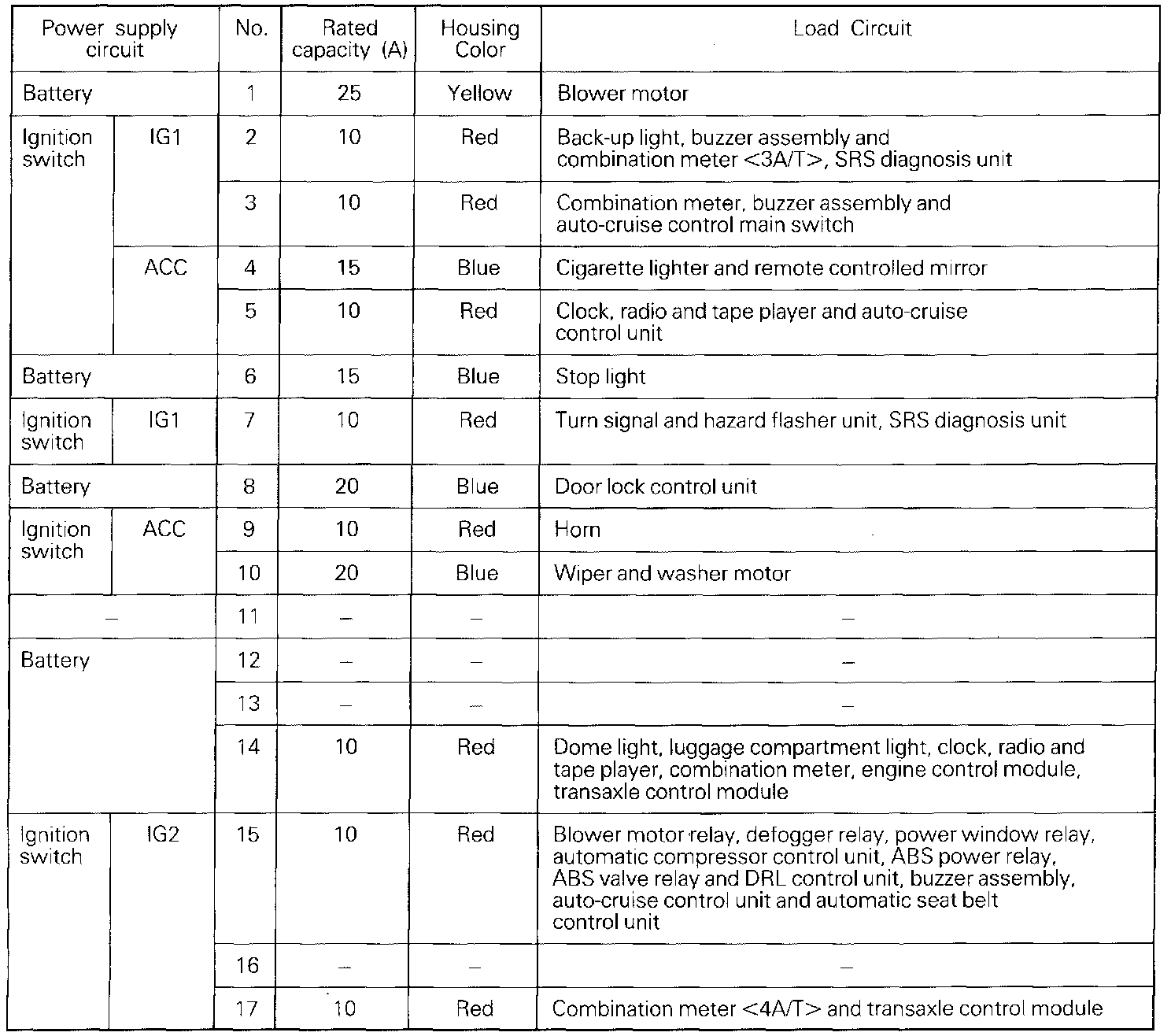

Multi-Purpose Fuse:
