Engine Coolant Temperature Sensor
Engine Coolant Temperature Sensor

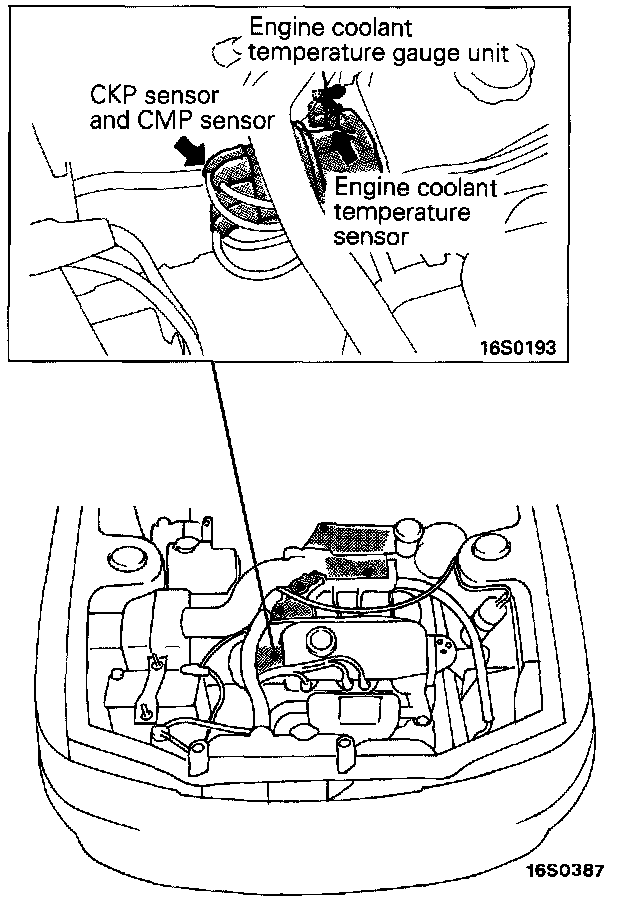

CKP & CMP Sensor, And Engine Coolant Temperature Sensor:
