Transmission Control Systems: Locations

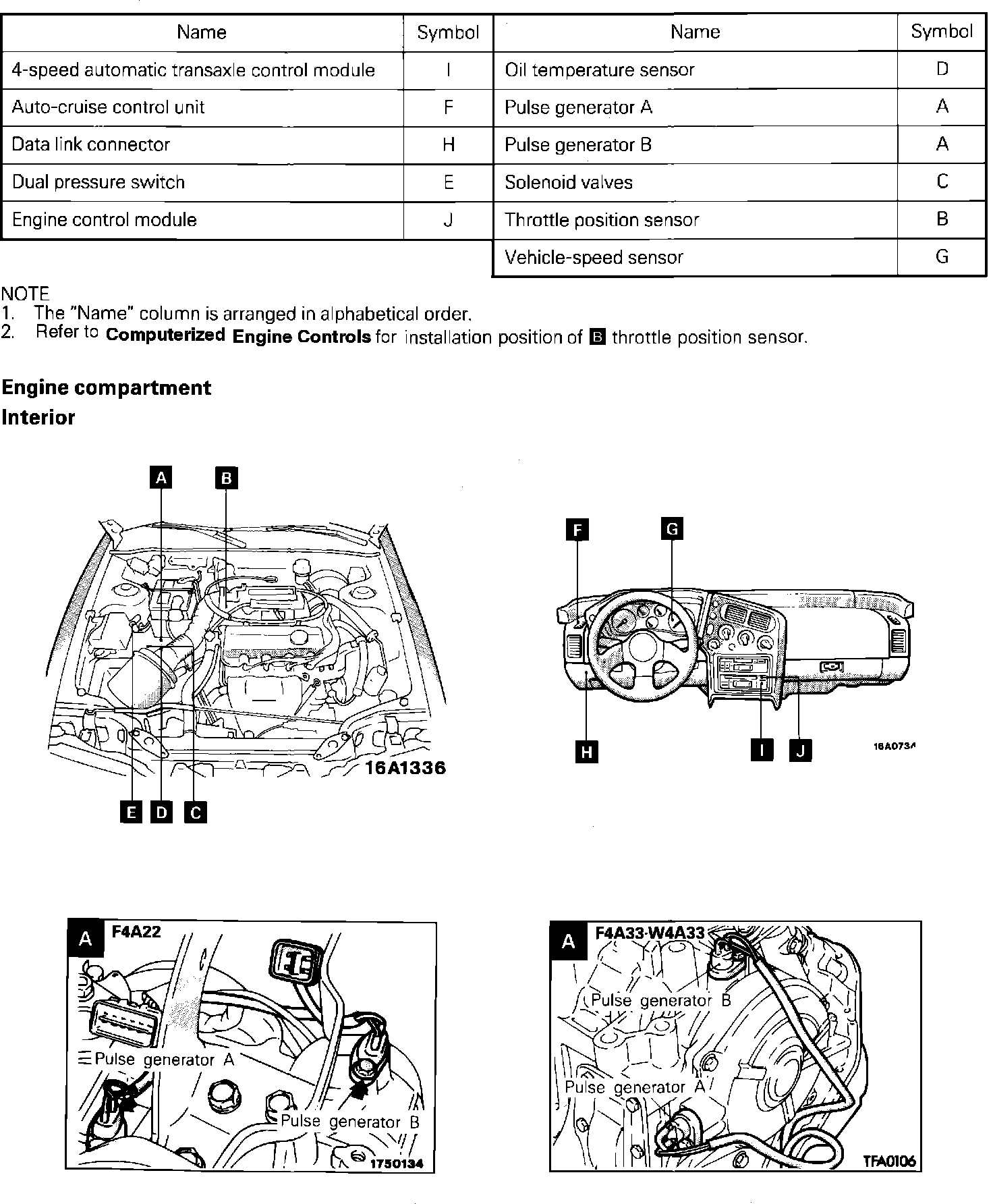

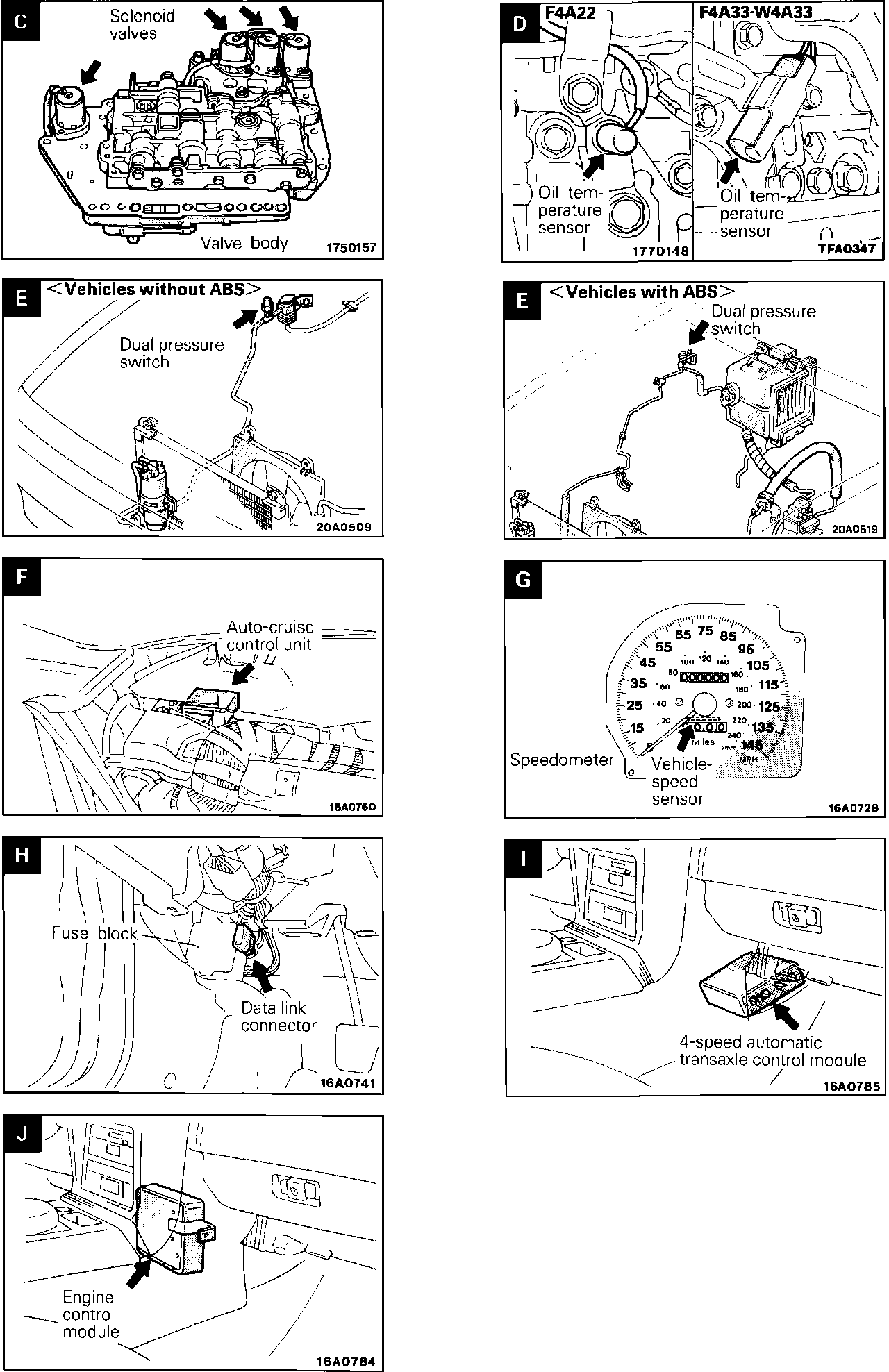

Automatic Transaxle Component Locations:
Automatic Transaxle Component Locations:
