Transmission Control Systems: Locations

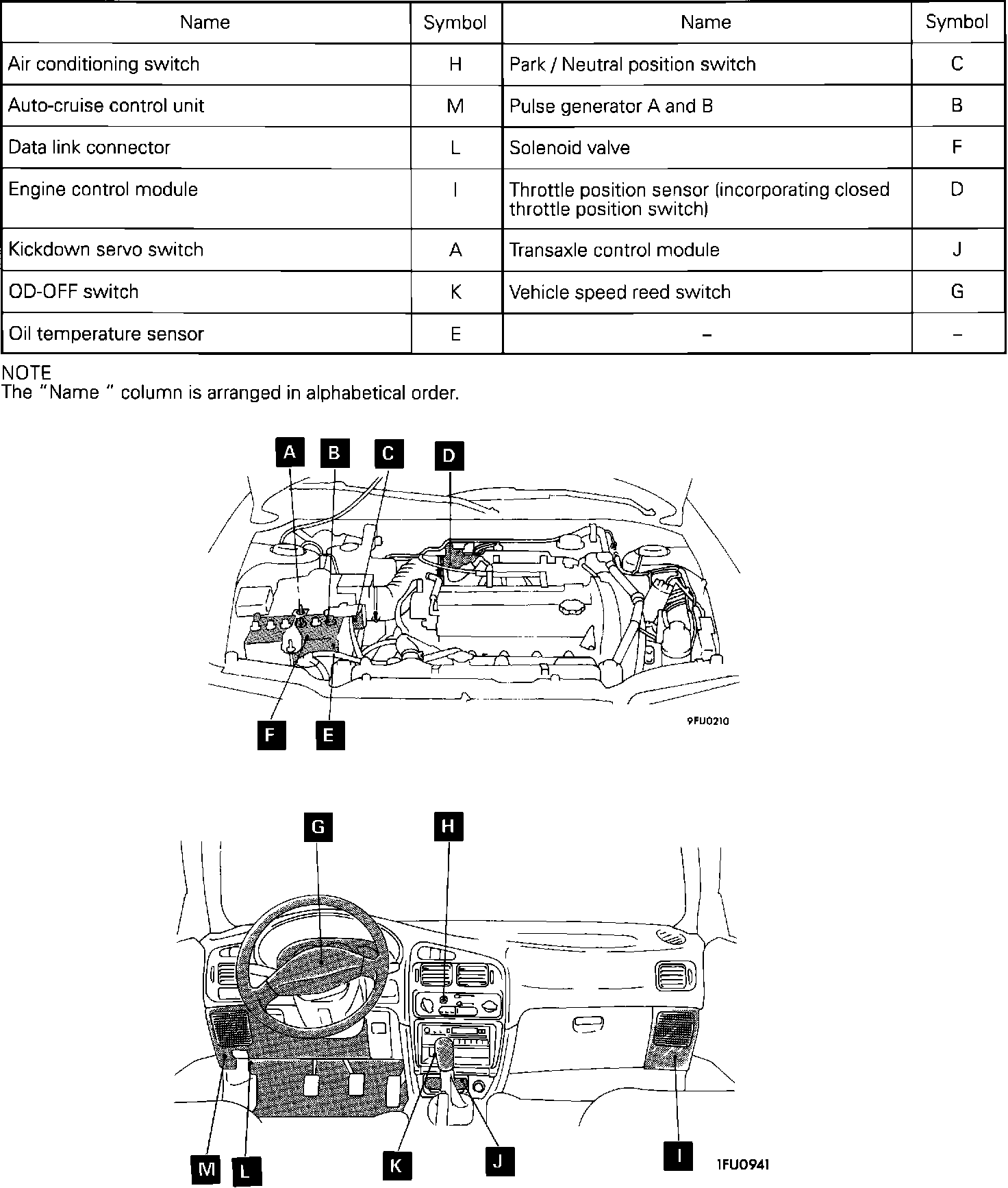

4 Speed Automatic Trans Controls:

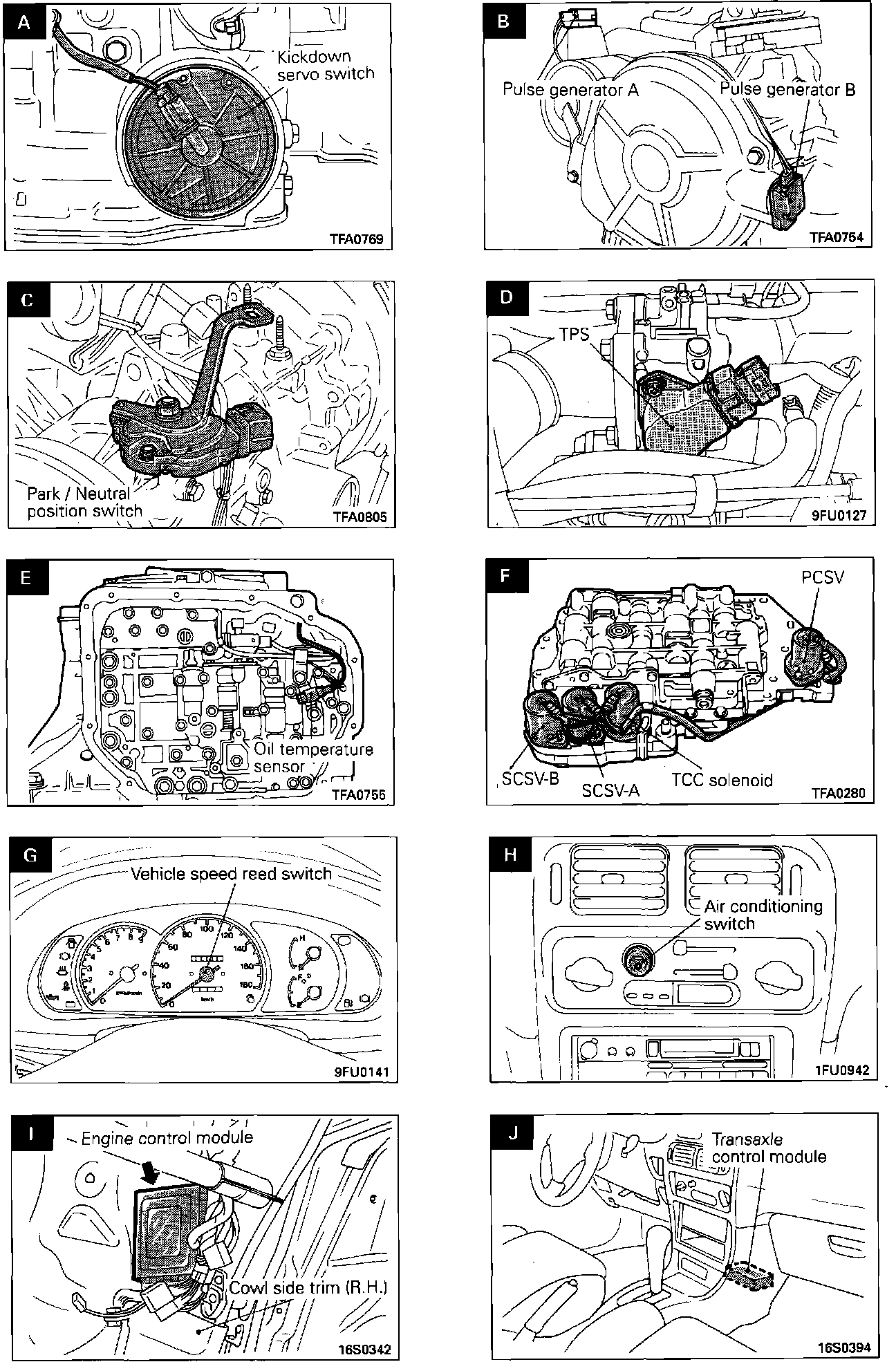

4 Speed Automatic Trans Controls:

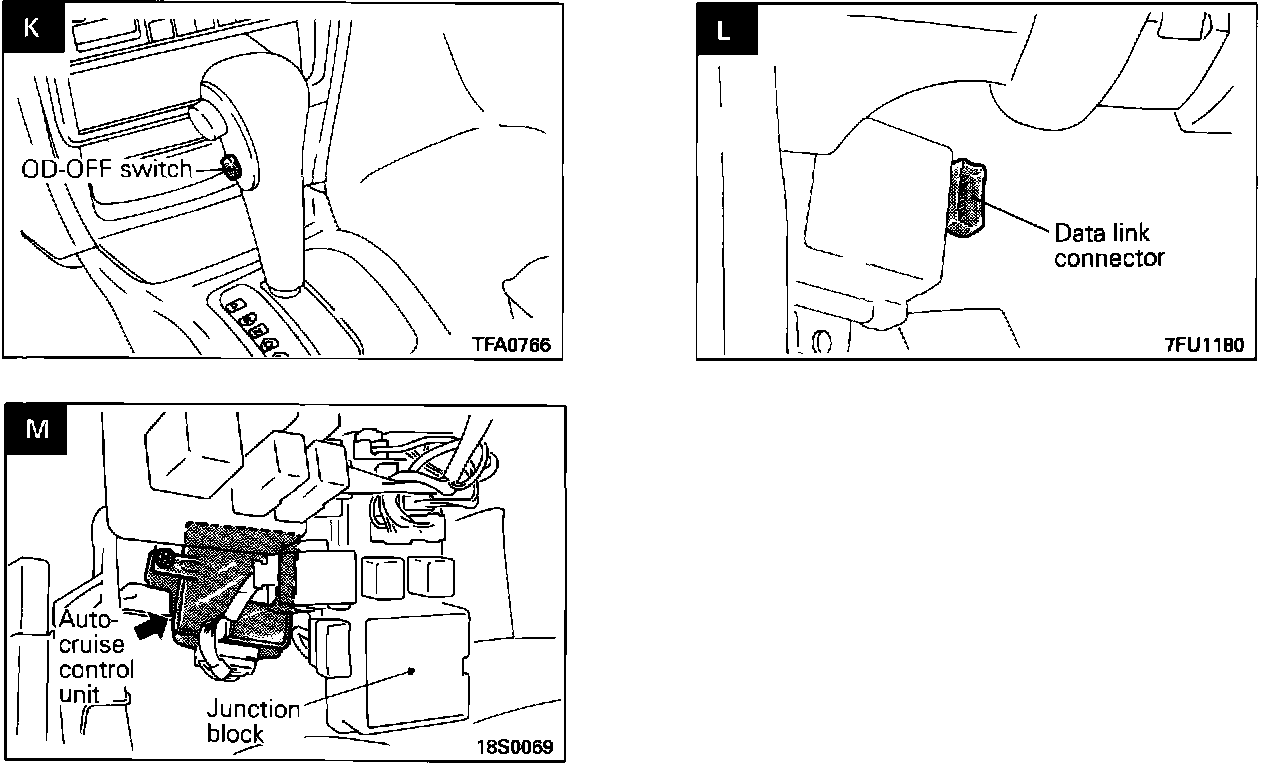

4 Speed Automatic Trans Controls:
