Home >> Eagle >> 1993 >> Summit L4-1468cc 1.5L SOHC >> Repair and Diagnosis >> Powertrain Management >> Transmission Control Systems >> Locations

Transmission Control Systems: Locations

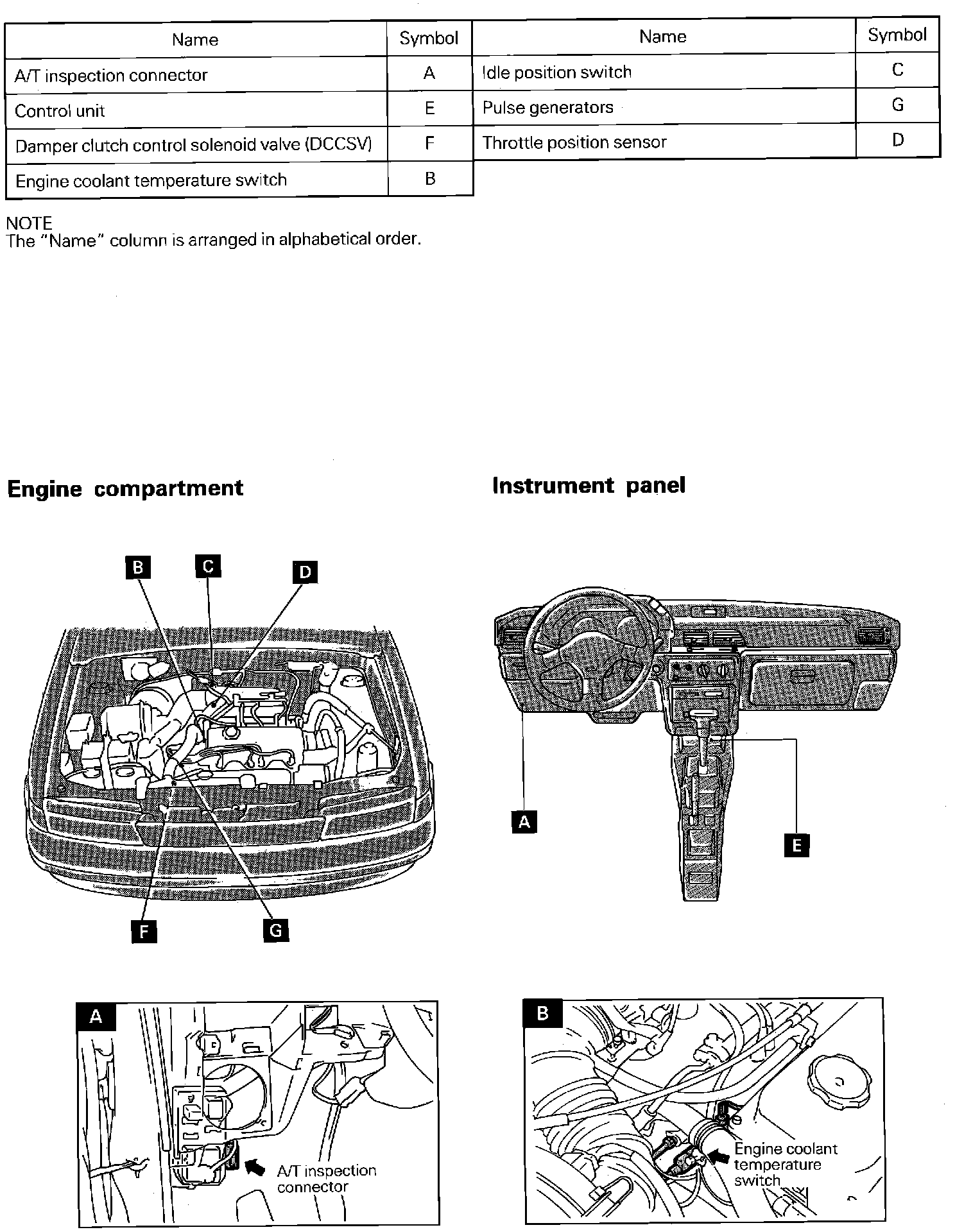

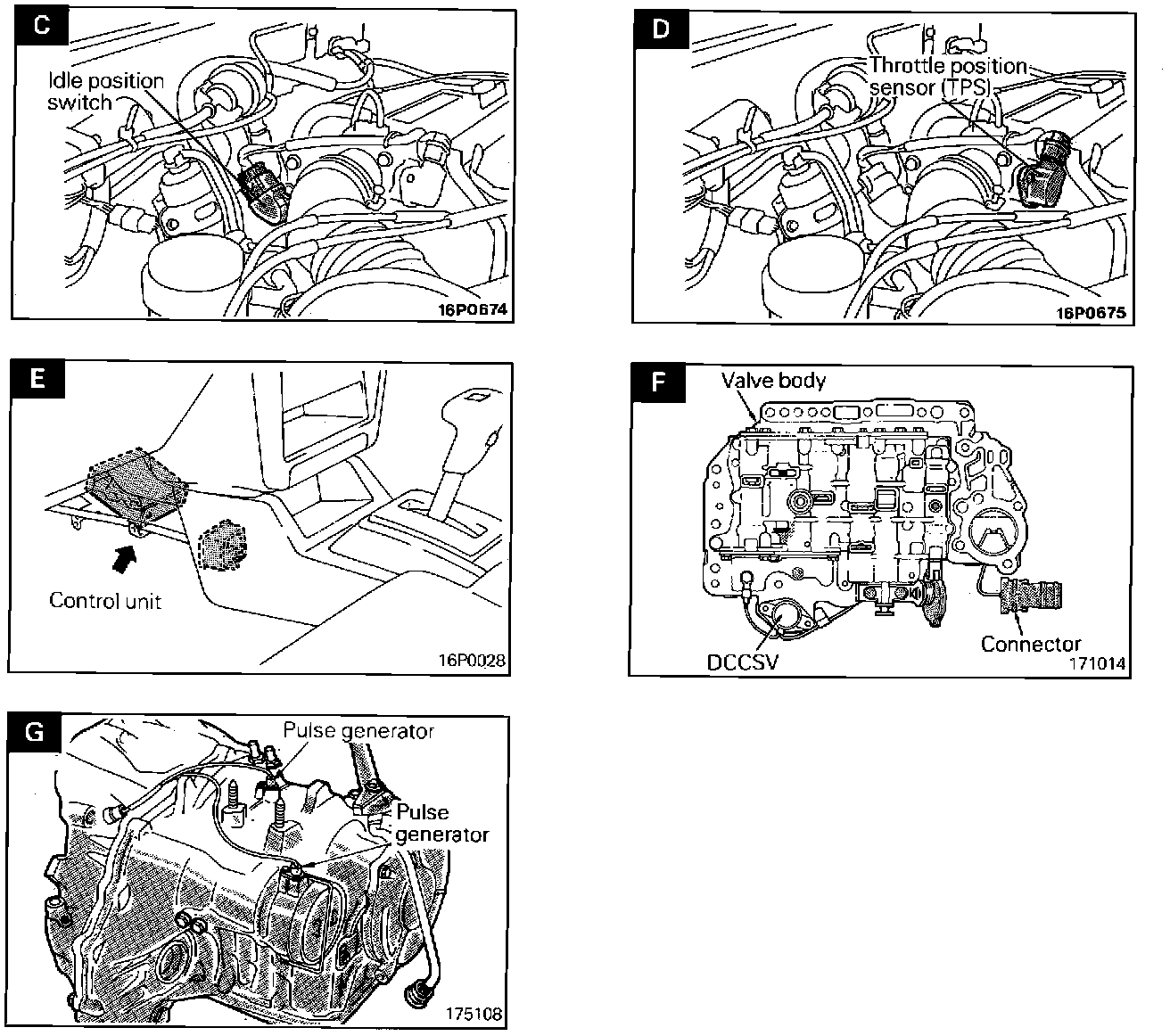

Component/Relay/Switch Locations (Automatic Transaxle, 3-Speed):



Component/Relay/Switch Locations (Automatic Transaxle, 3-Speed):
