Home >> Eagle >> 1993 >> Summit L4-1468cc 1.5L SOHC >> Repair and Diagnosis >> Heating and Air Conditioning >> Control Module HVAC >> Locations

Control Module HVAC: Locations

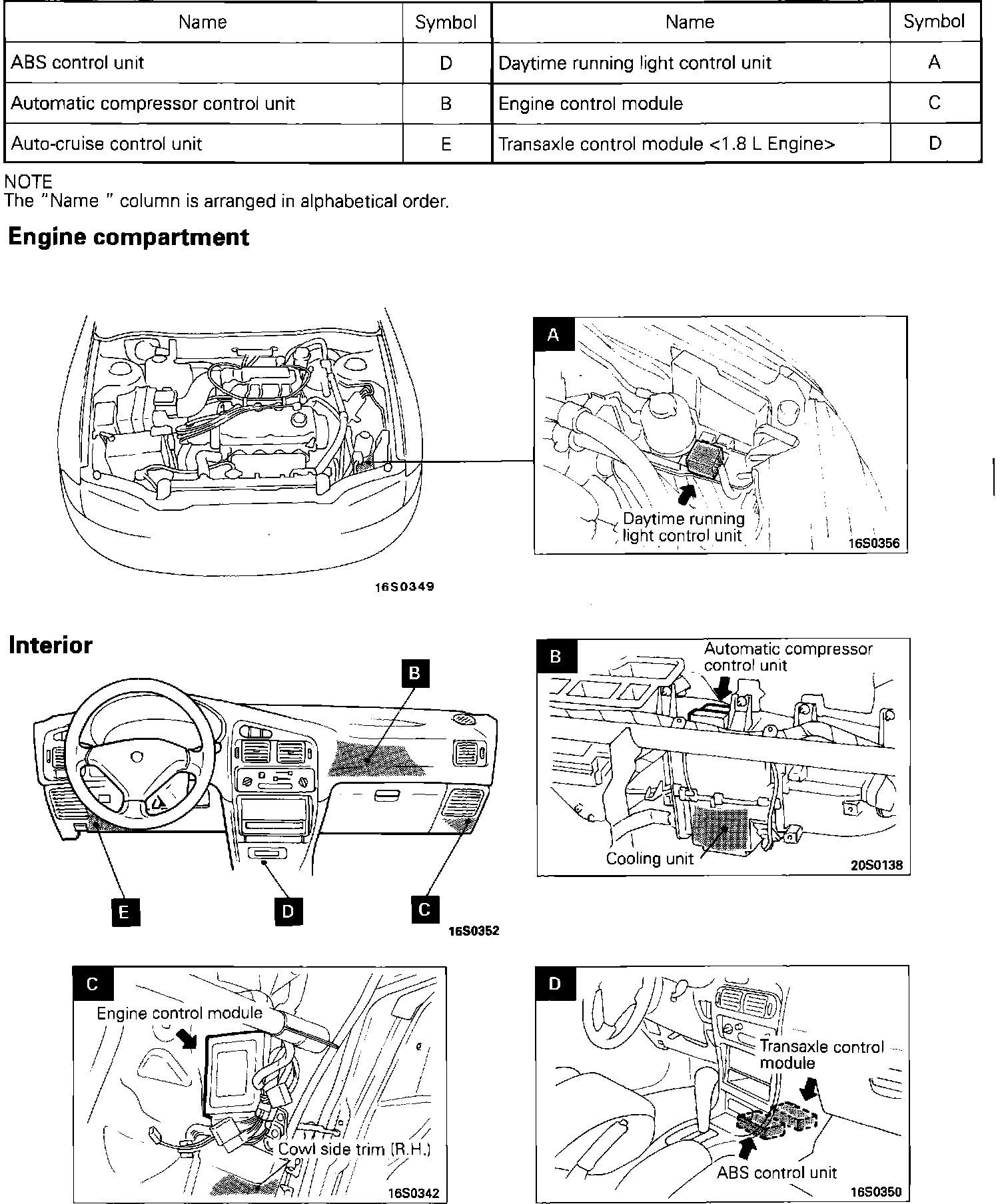

Control Unit Locations:

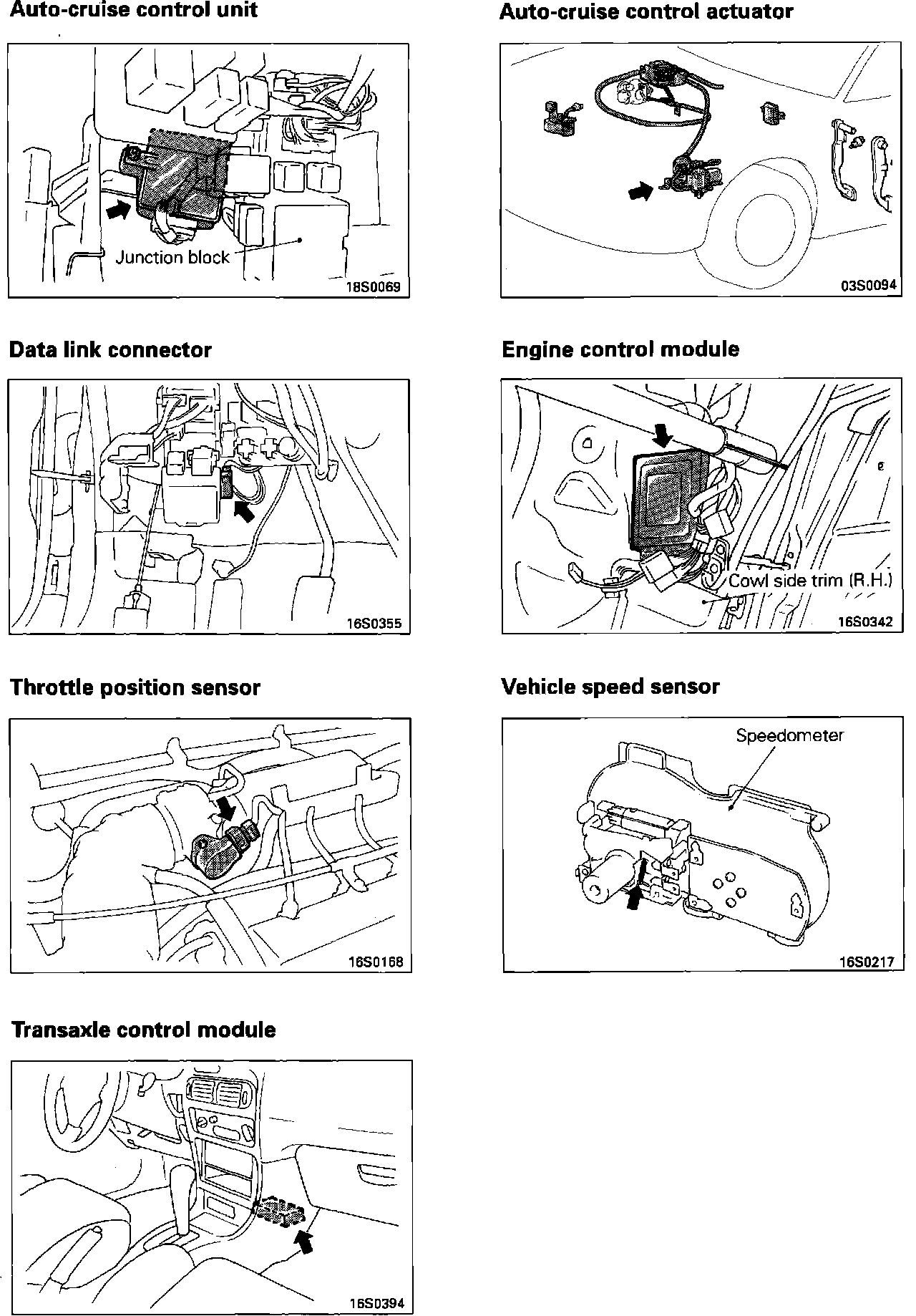

Auto-cruise Control Component Locations:
