Home >> Eagle >> 1993 >> Summit L4-1468cc 1.5L SOHC >> Repair and Diagnosis >> Diagrams >> Connector Views >> Fuse Block

Fuse Block

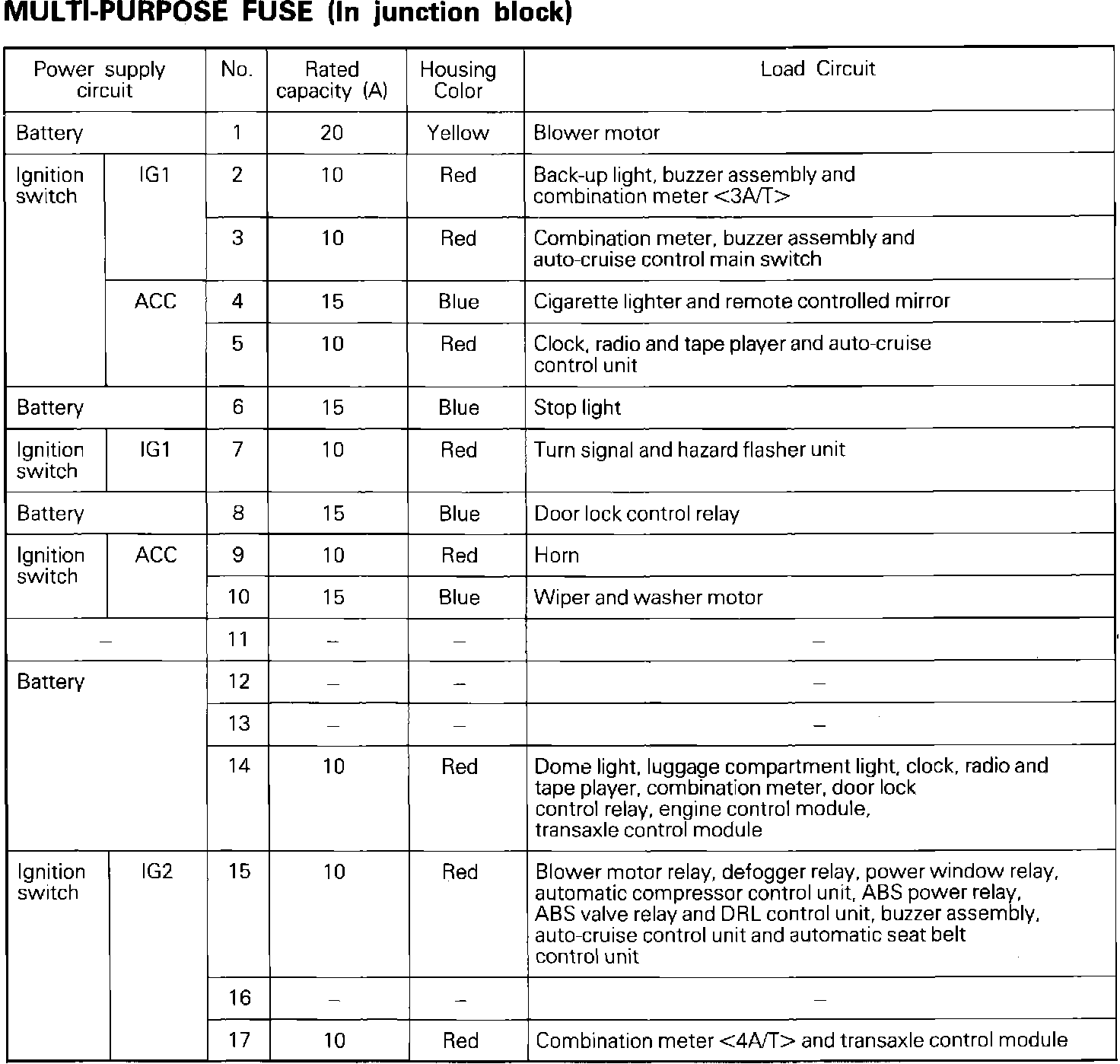

Multi-purpose Fuses:
