Transmission Control Systems: Locations

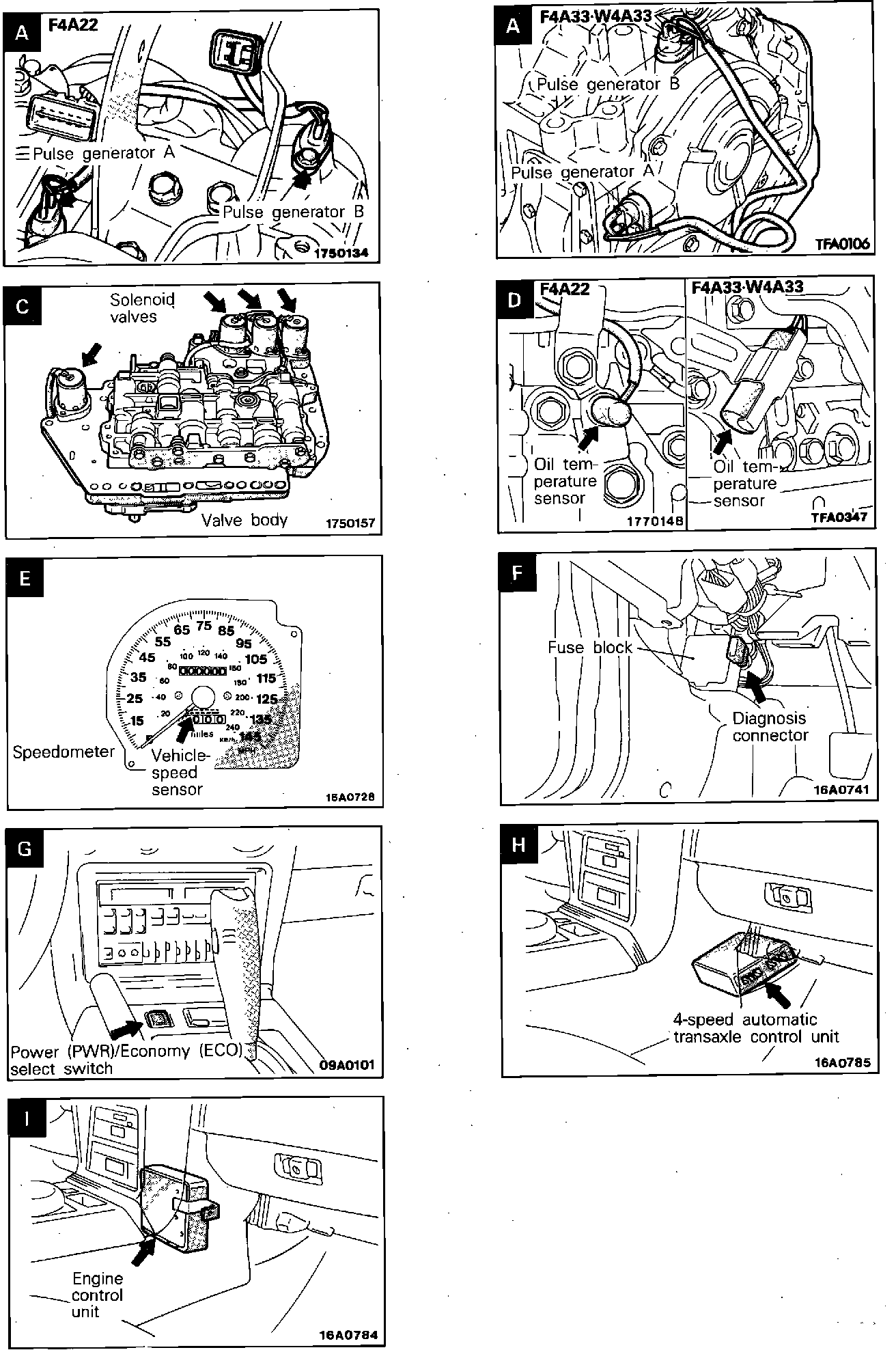

Component/Relay/Switch Locations (Automatic Transaxle):

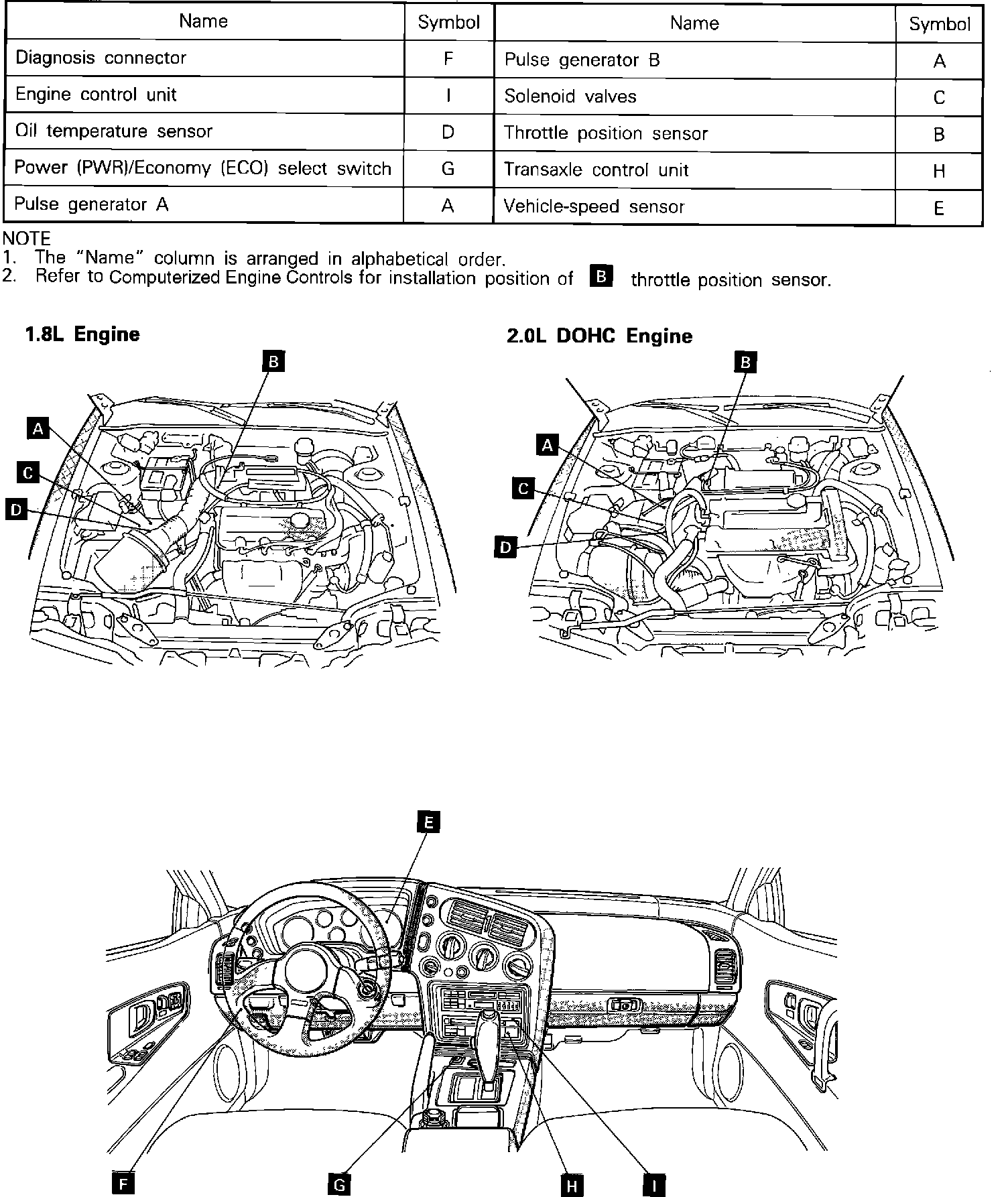

Component/Relay/Switch Locations (Automatic Transaxle):
