Eagle
>>
1992
>>
Summit L4-1468cc 1.5L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Control Module, A/T
>>
With 4-Speed Transmission
With 4-Speed Transmission

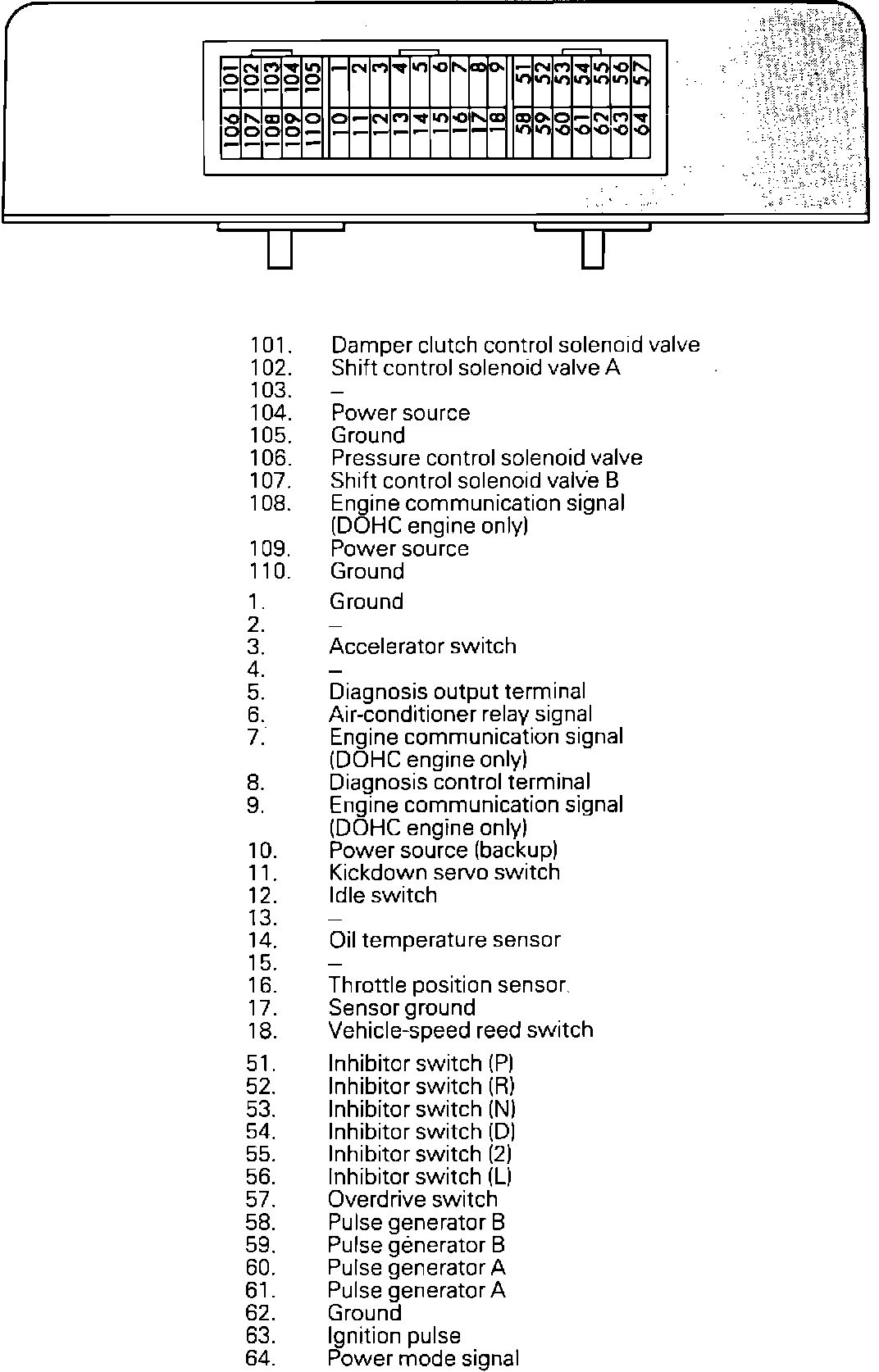

Transmission Control Unit Pin-out:
