Home >> Eagle >> 1992 >> Premier V6-182 3.0L SOHC >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Locations >> Engine Wiring/Components

Engine Wiring/Components

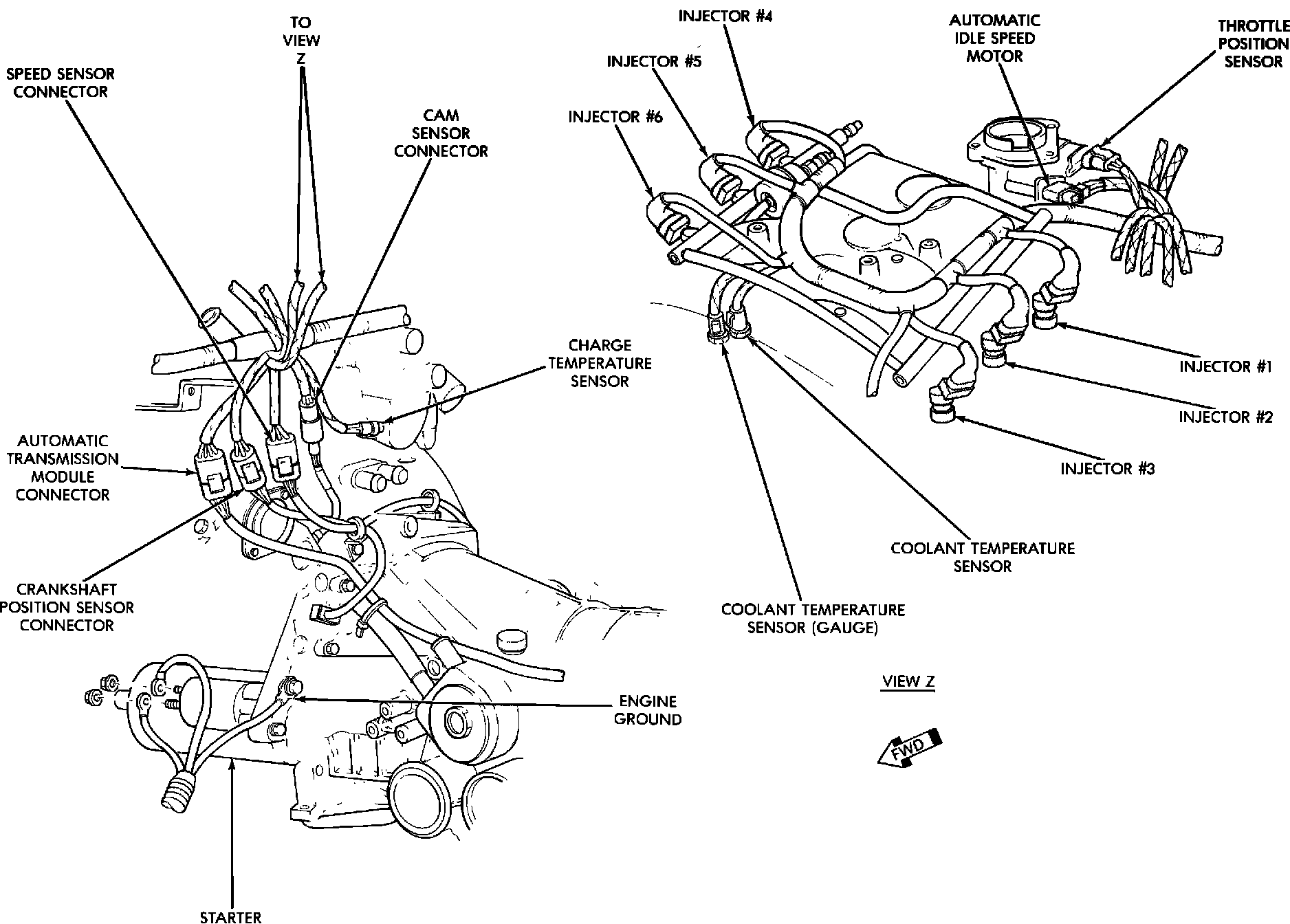

Engine Wiring:

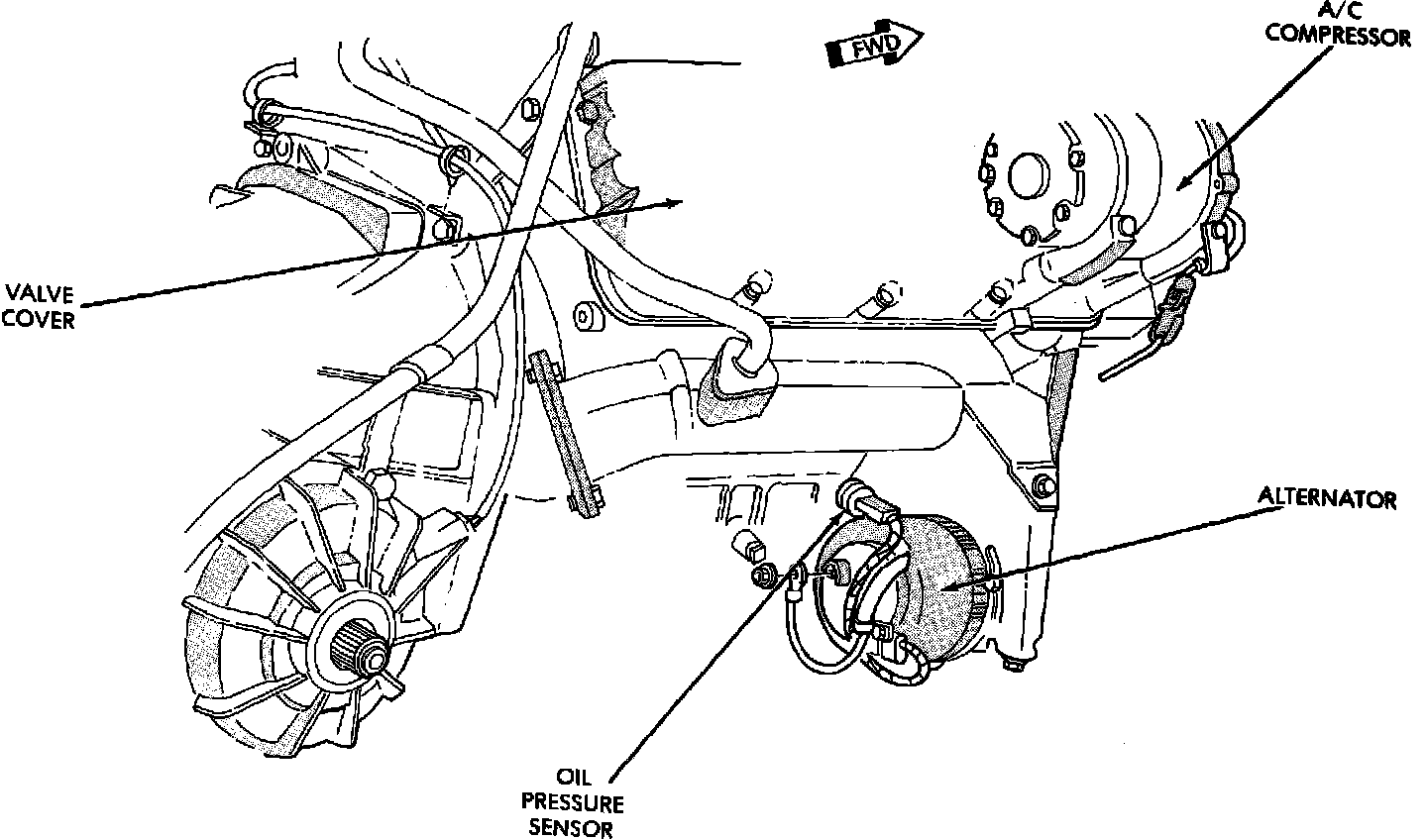

Engine Wiring:
