Home >> Eagle >> 1991 >> Talon FWD L4-1997cc 2.0L DOHC >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Barometric Pressure Sensor >> Locations

Barometric Pressure Sensor: Locations

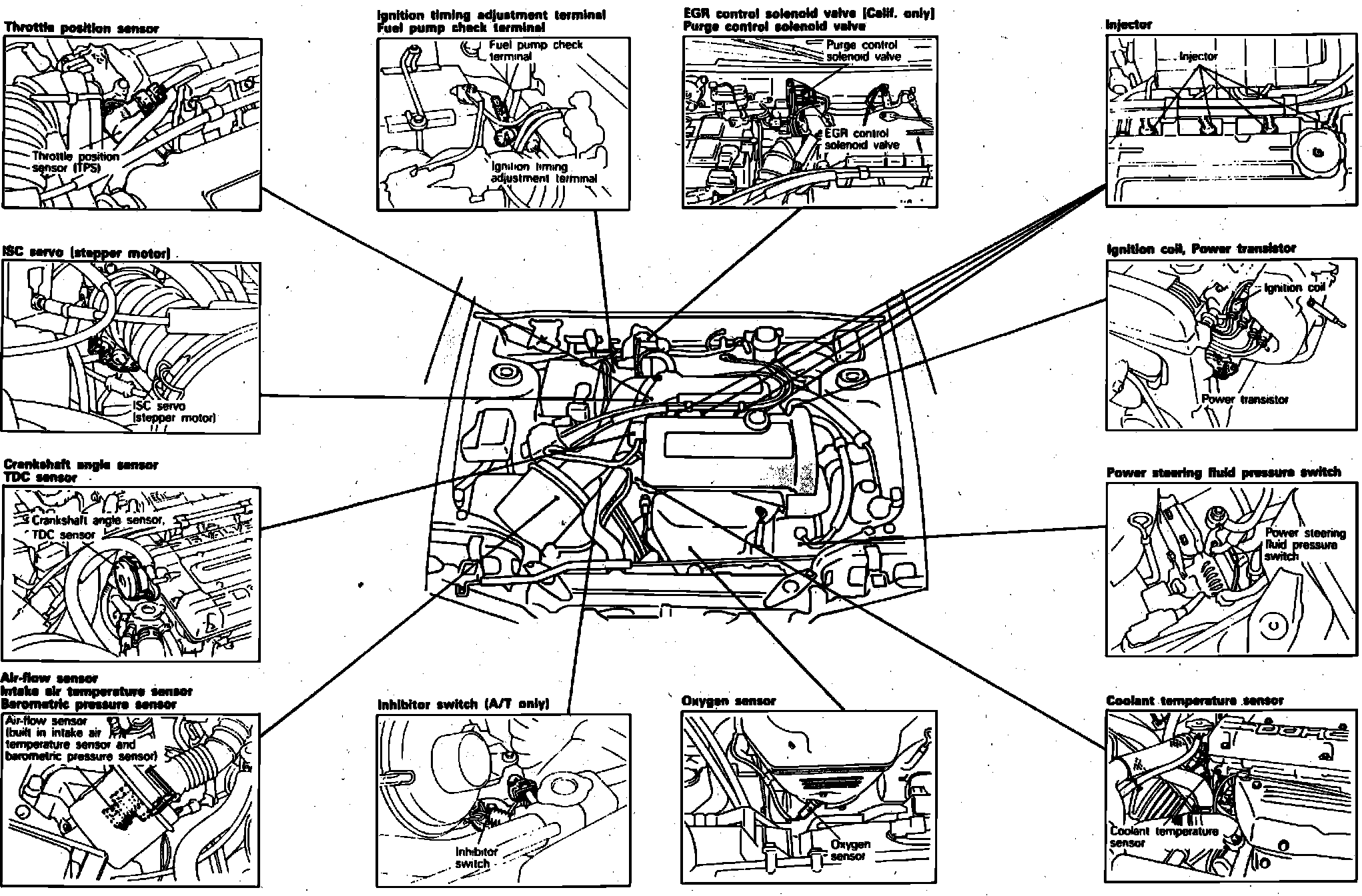

Engine Compartment Component Locations.:




Front RH Side Of Engine Compartment

Applicable to: 2.0L/4-122 Non-Turbo
