Engine Control Module

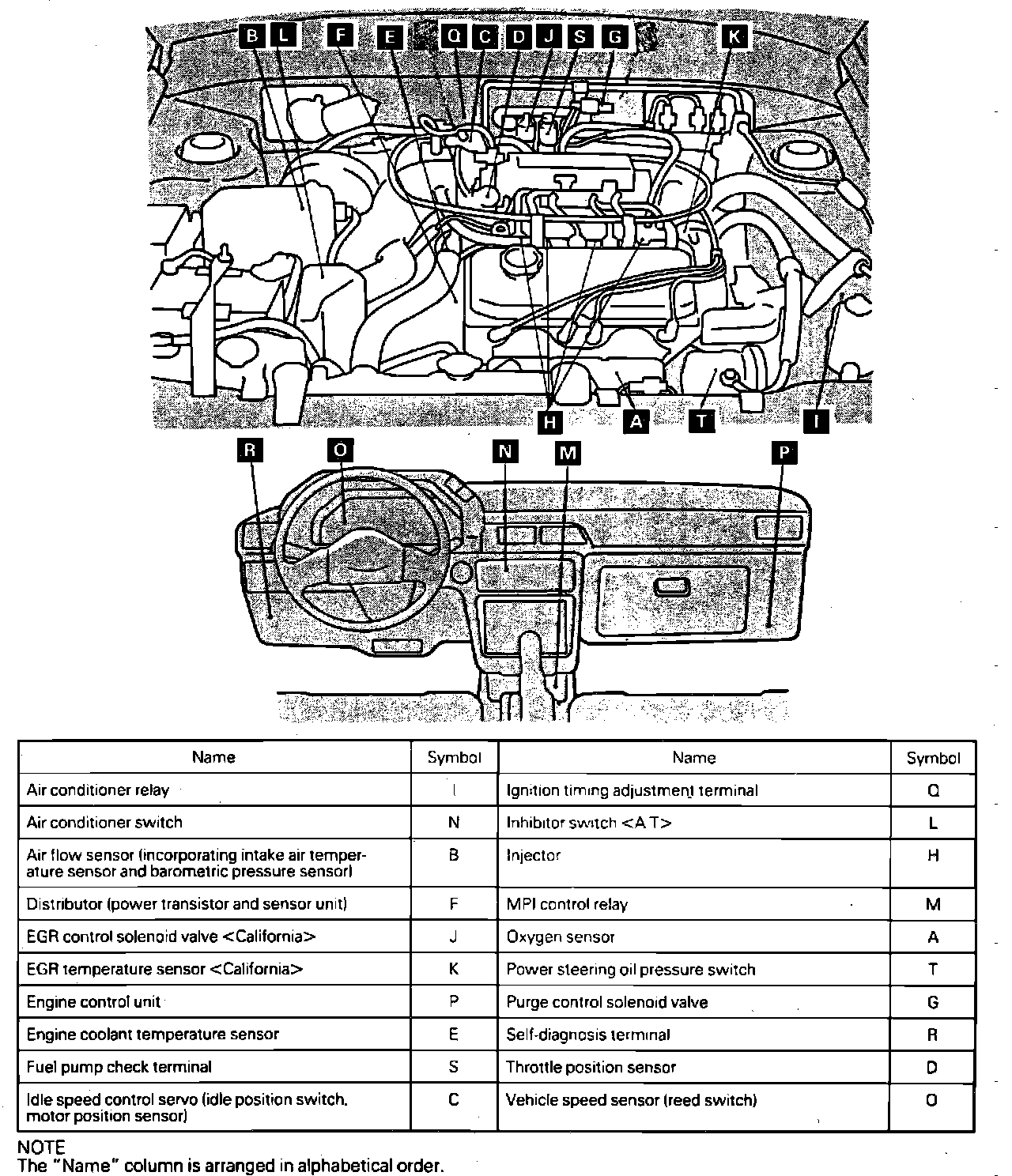

Multi-Point Fuel Injection Components.:

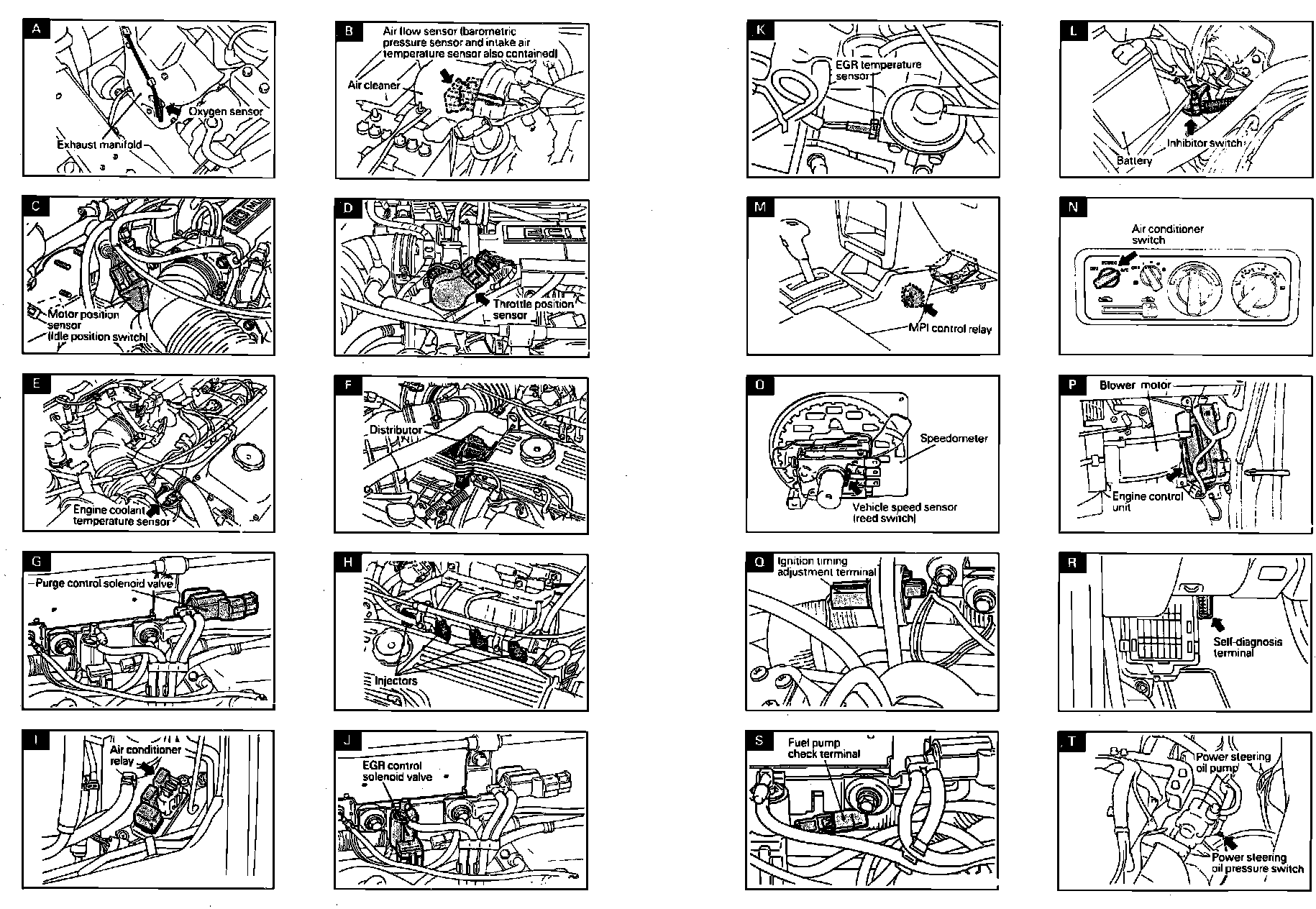

Multi-Point Fuel Injection Components Detail Locations.:




Behind RH Side Of I/P

Applicable to: Colt & Summit
