Junction Block

���"Fuse Panel Details. Junction Block Schematic:

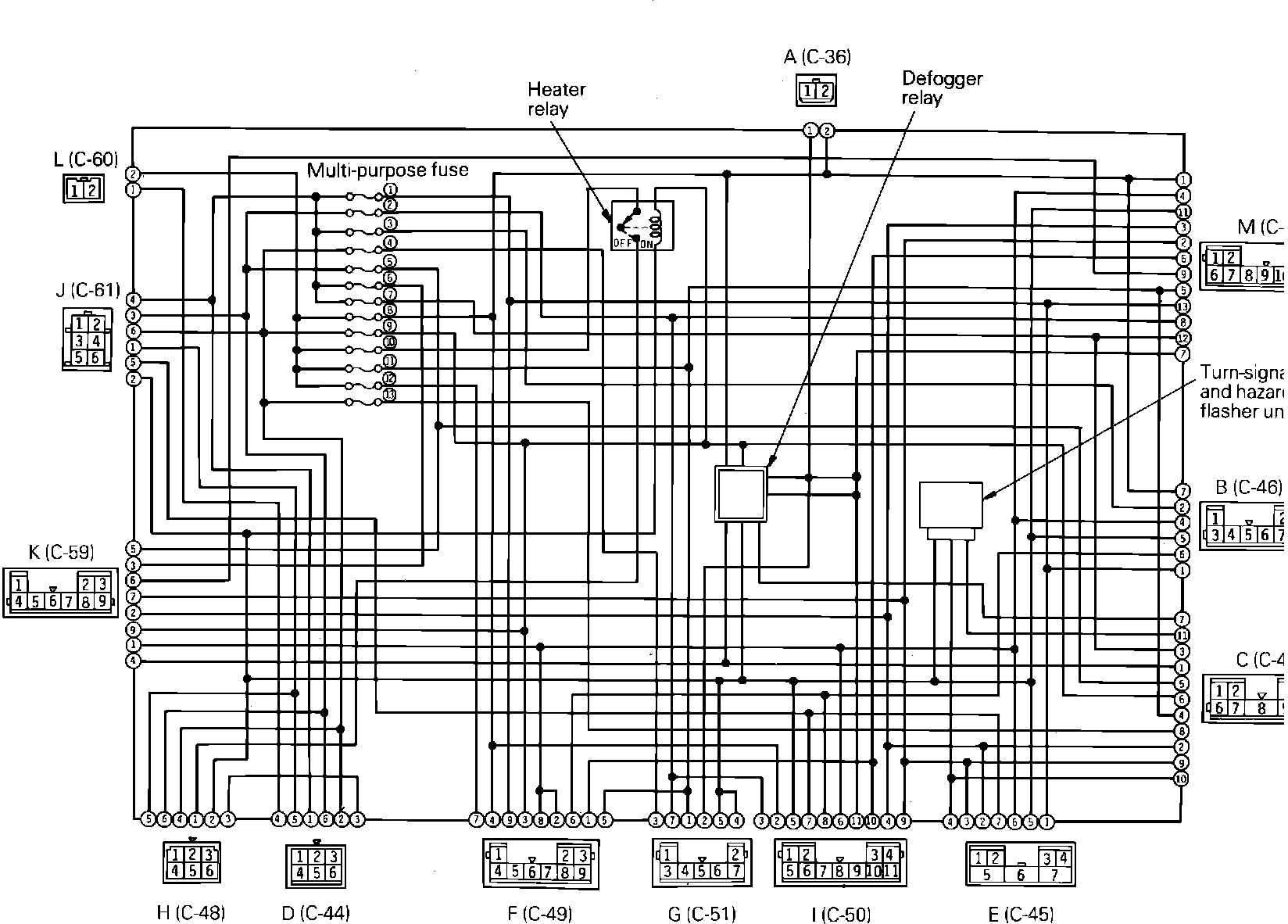

Fuse Panel Details. Junction Block Schematic:

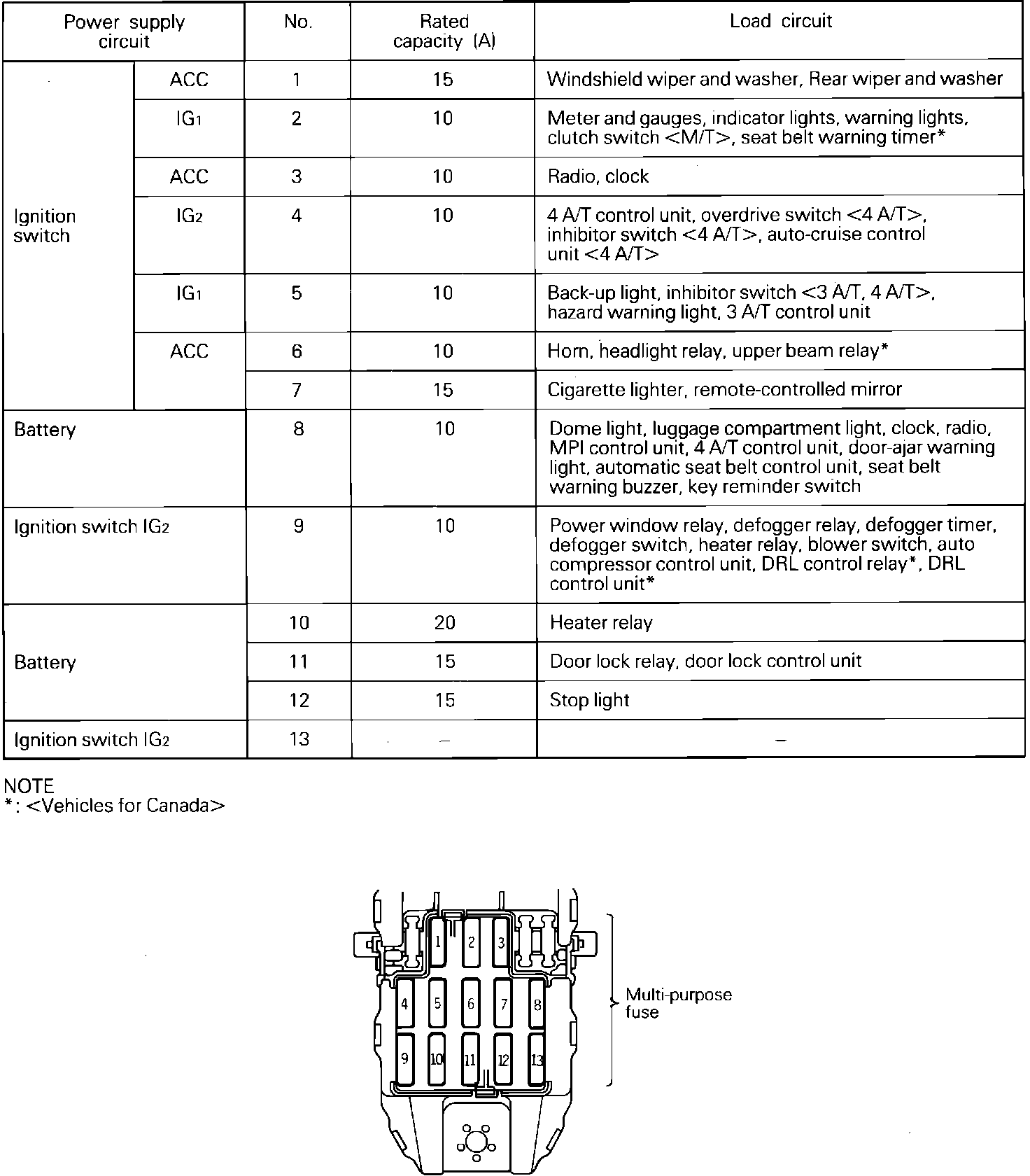

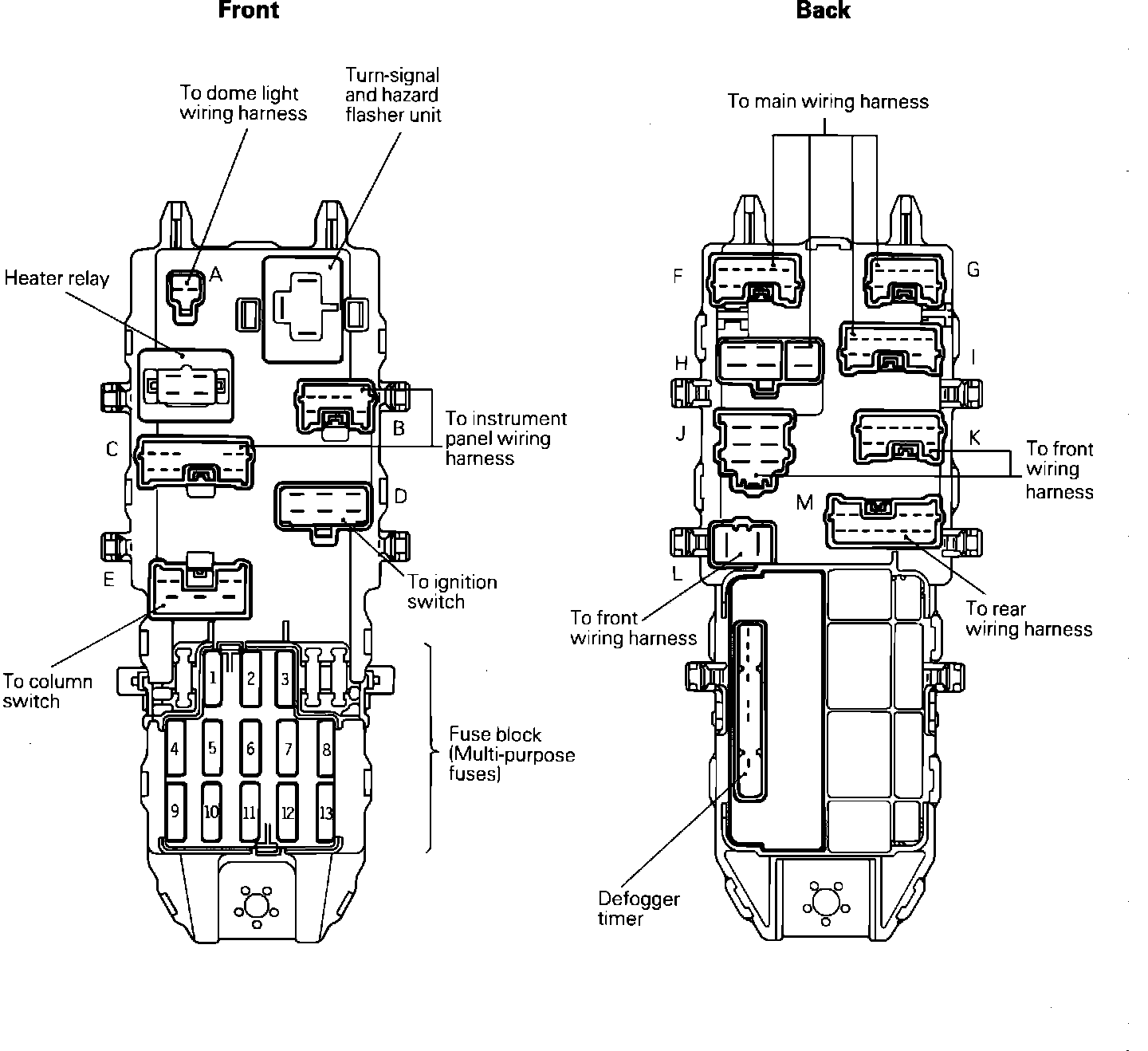

Fuse Panel:
