Clearance and Design Specifications

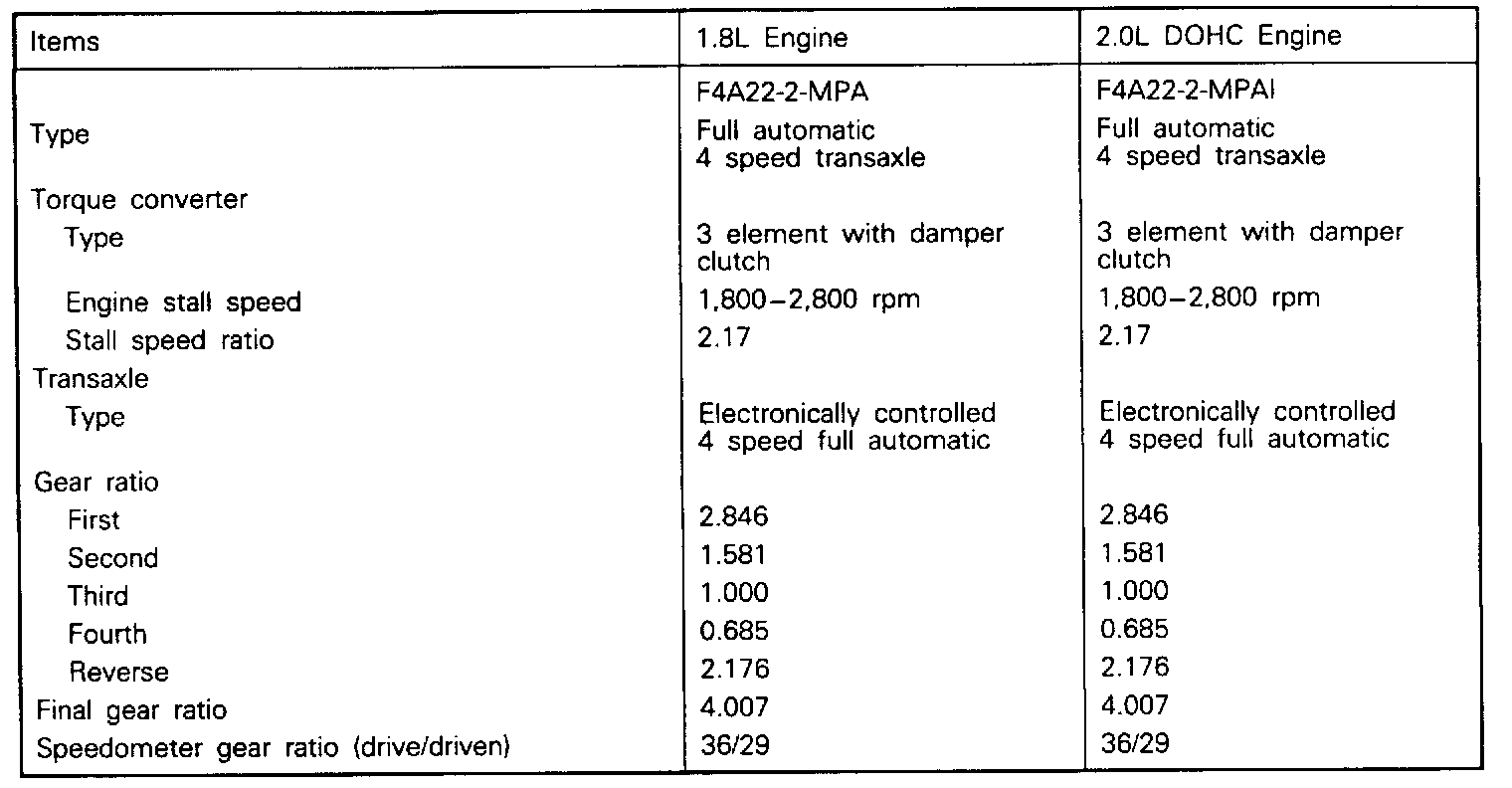

General Specifications:

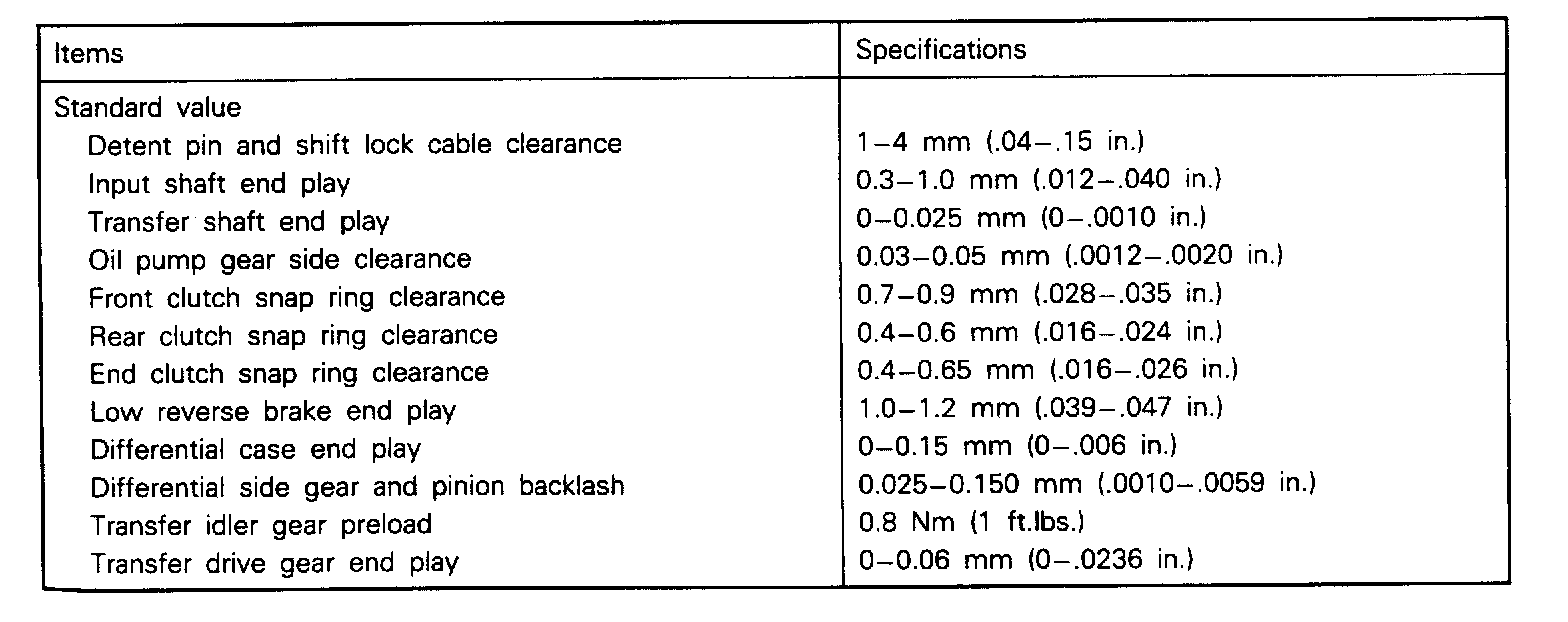

Service Specifications:

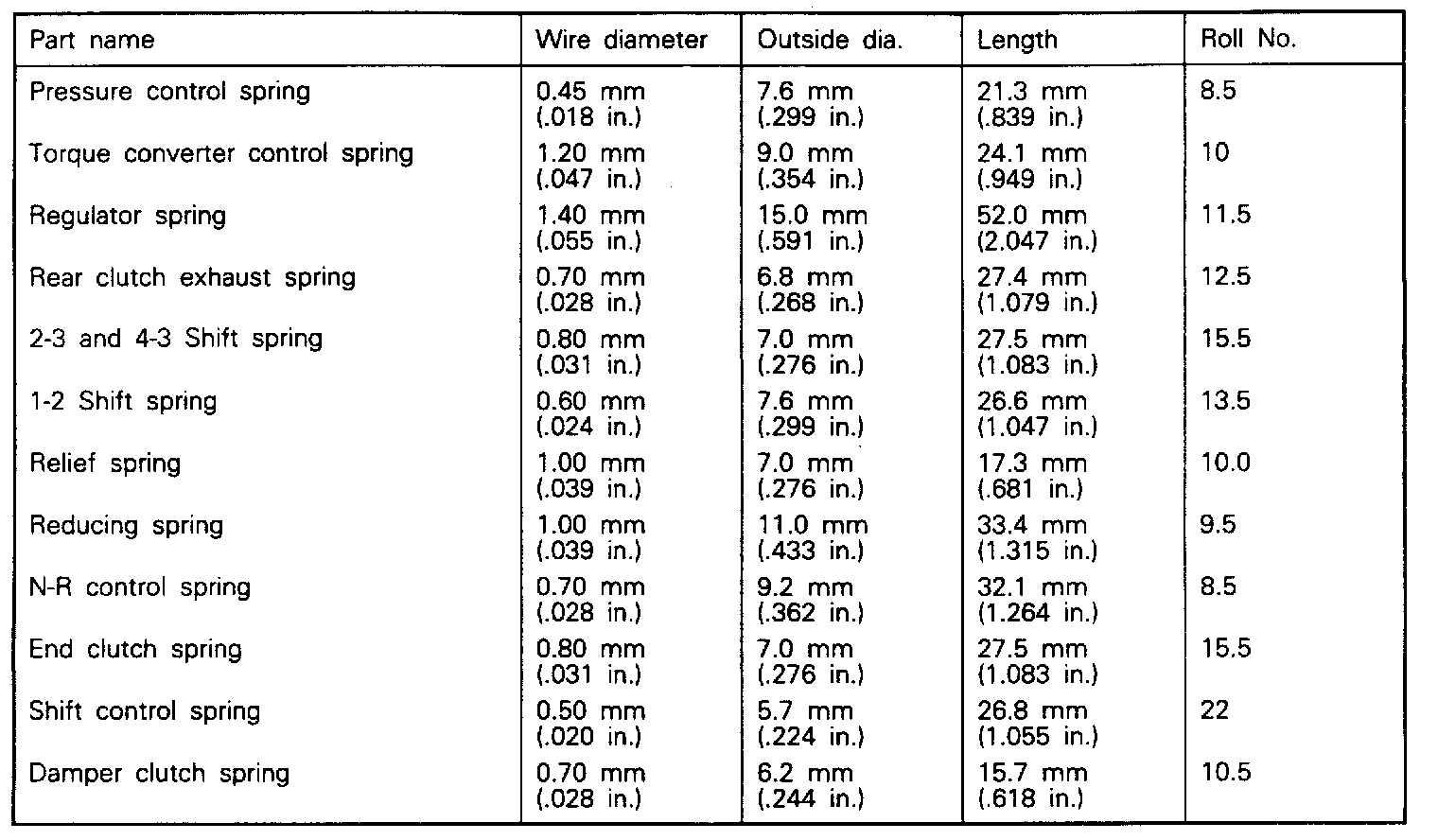

Valve Body Spring Identification Chart:

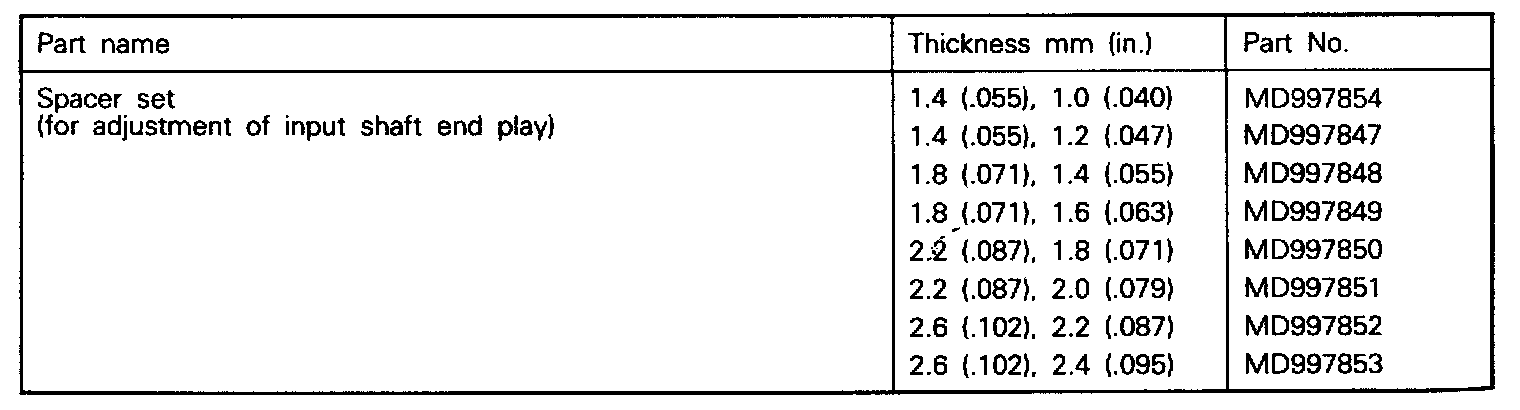

Spacer Set (Input Shaft):

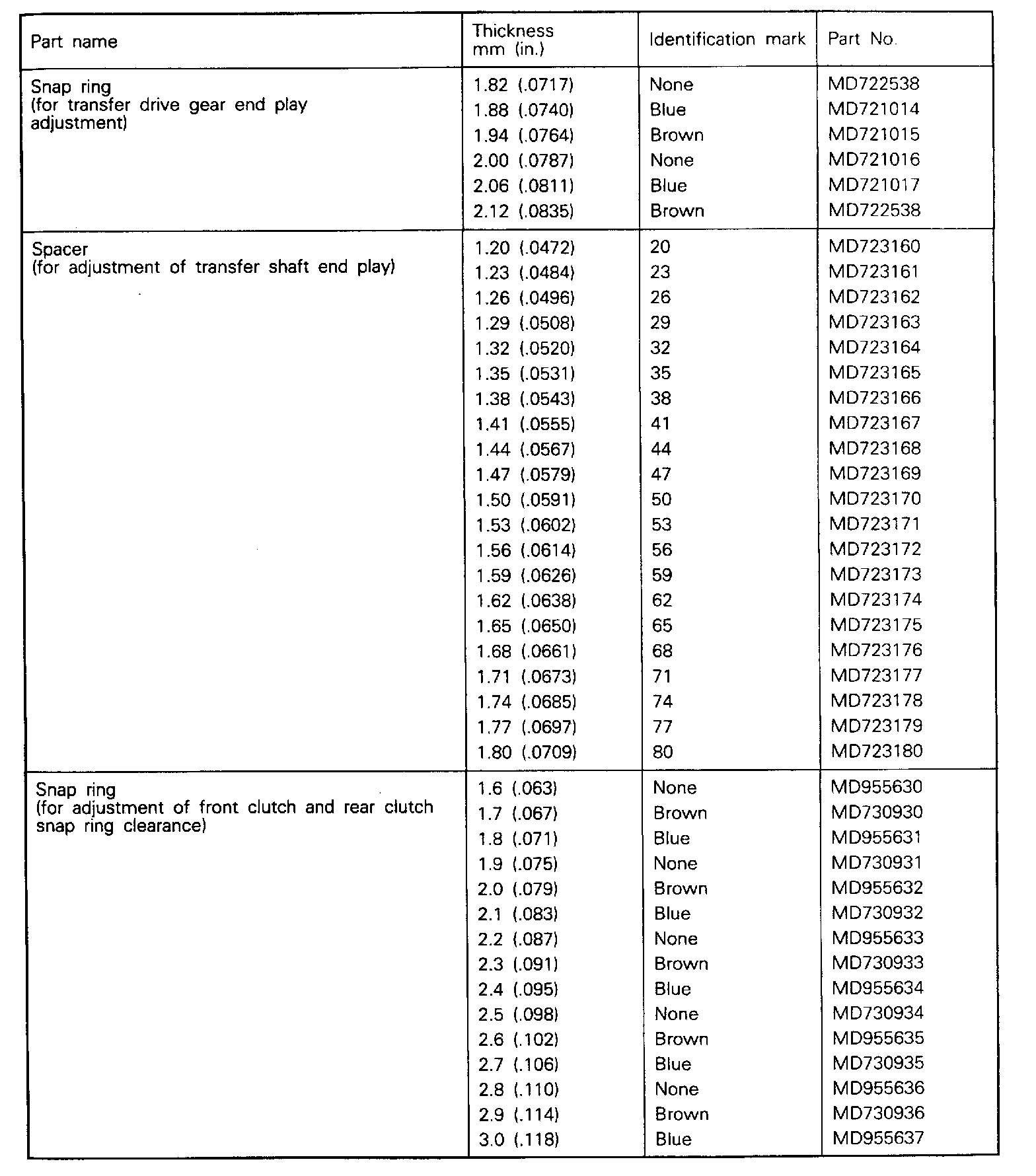

Spacer And Snap Ring Chart:

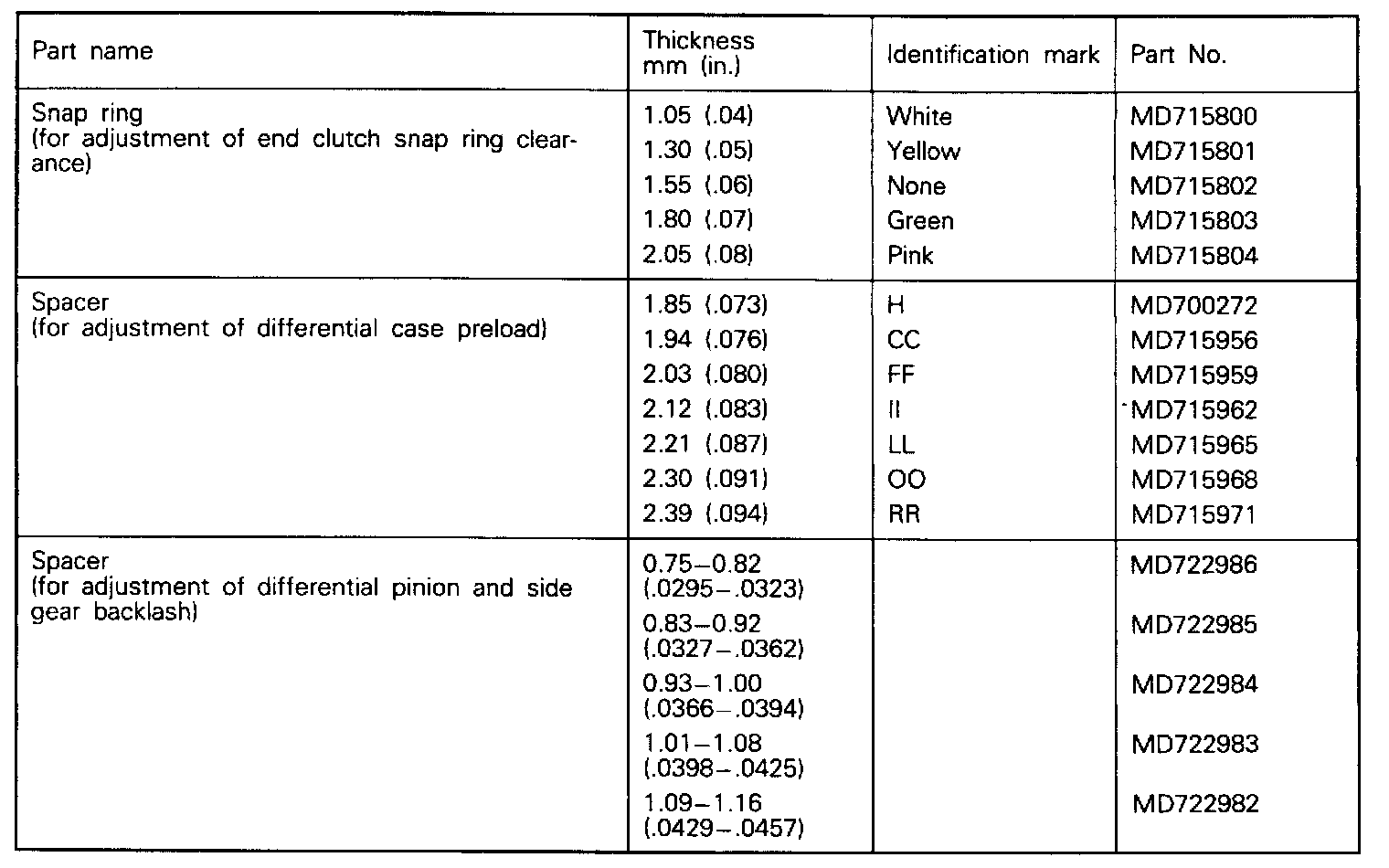

Continued:

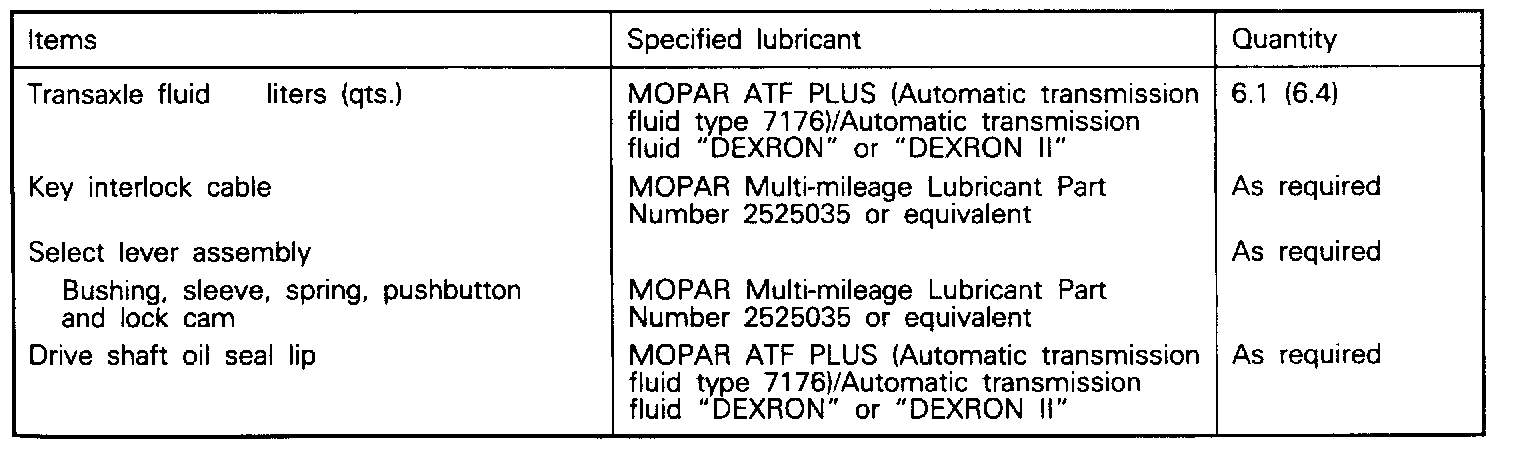

Lubricants:
