Coolant Temperature Sensor/Switch (For Computer)
>>
Locations
>>
Coolant Temperature Sensor
Coolant Temperature Sensor

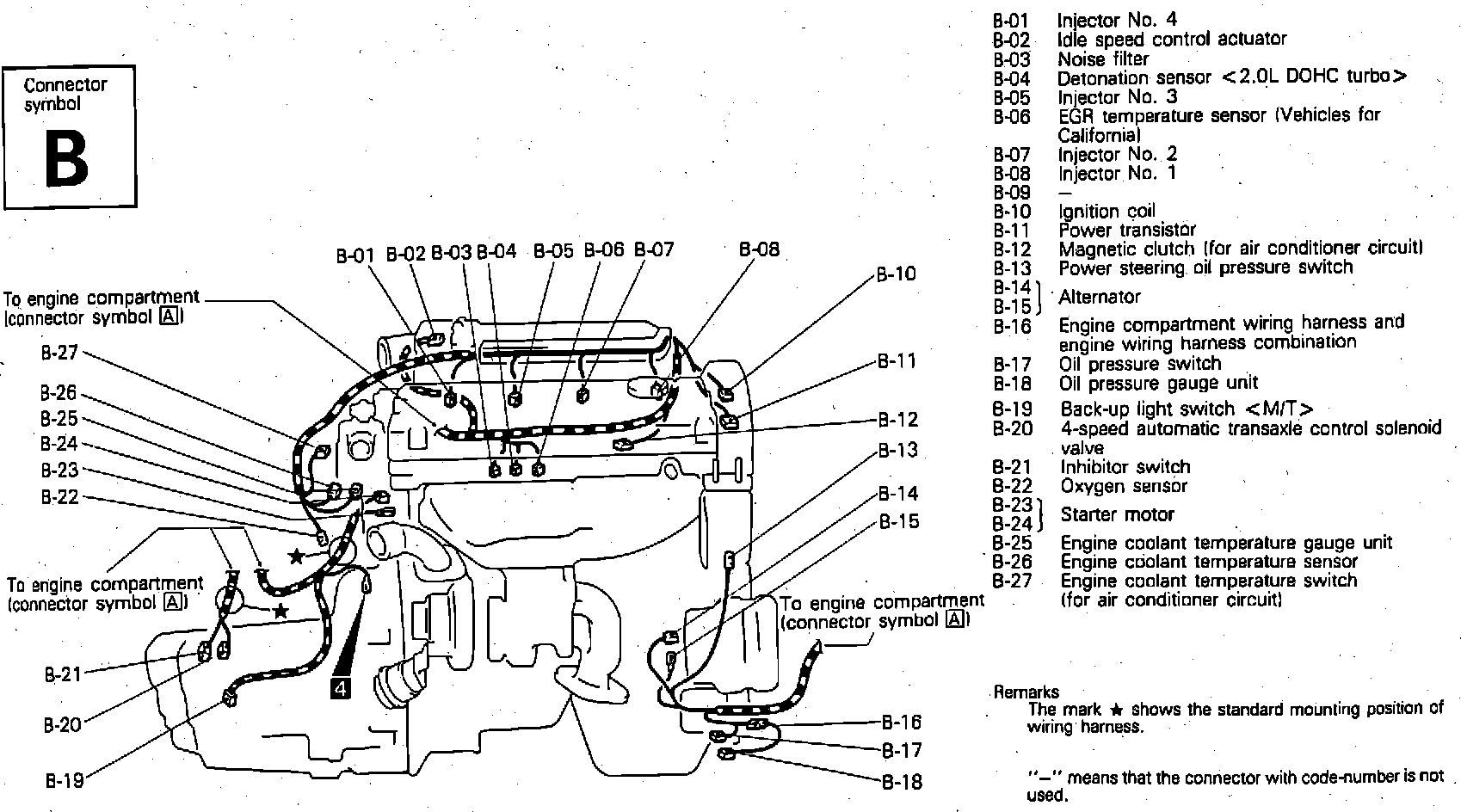

Engine & Transaxle Component Locations.:
Upper RH Side Of Engine, Near Thermostat Housing
Applicable to: 2.0L Engine
