Summit L4-1468cc 1.5L SOHC
>>
Repair and Diagnosis
>>
Specifications
>>
Mechanical Specifications
>>
Manual Transmission/Transaxle
>>
System Specifications
>>
Clearance and Design Specifications
Clearance and Design Specifications
General Specifications:

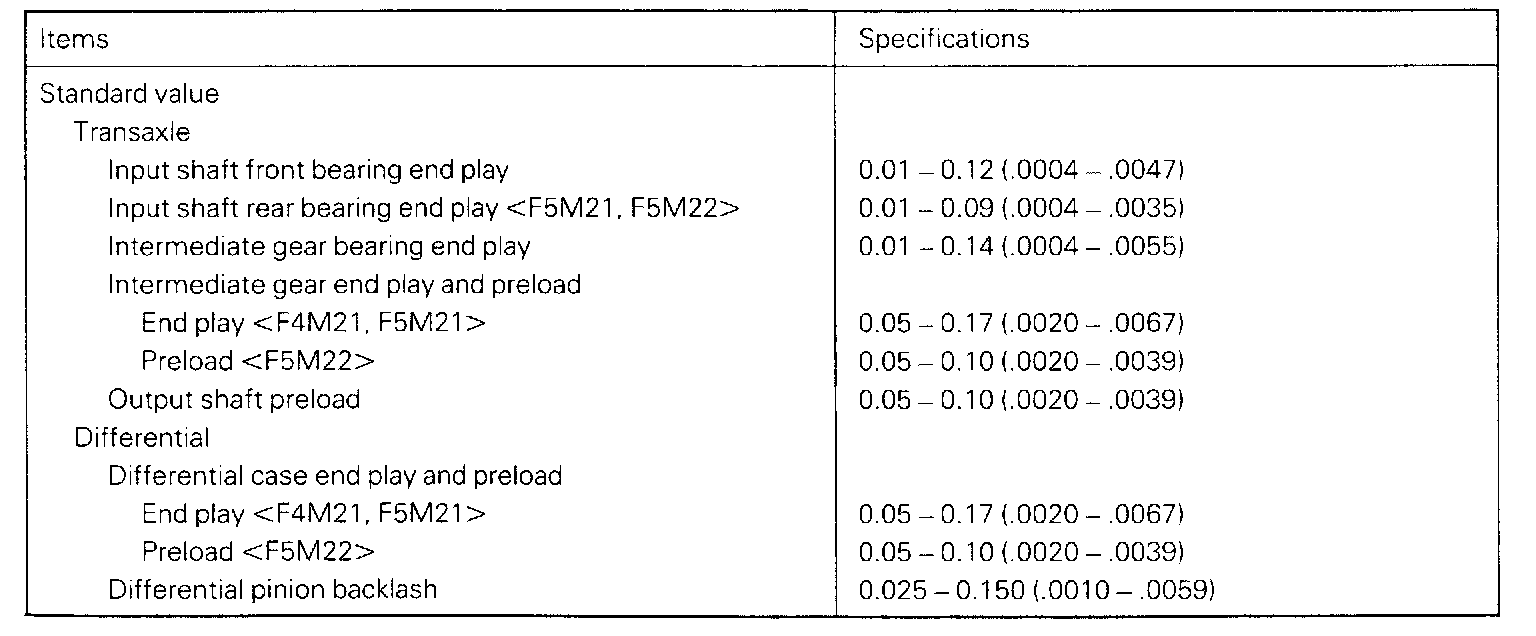

Service Specifications:

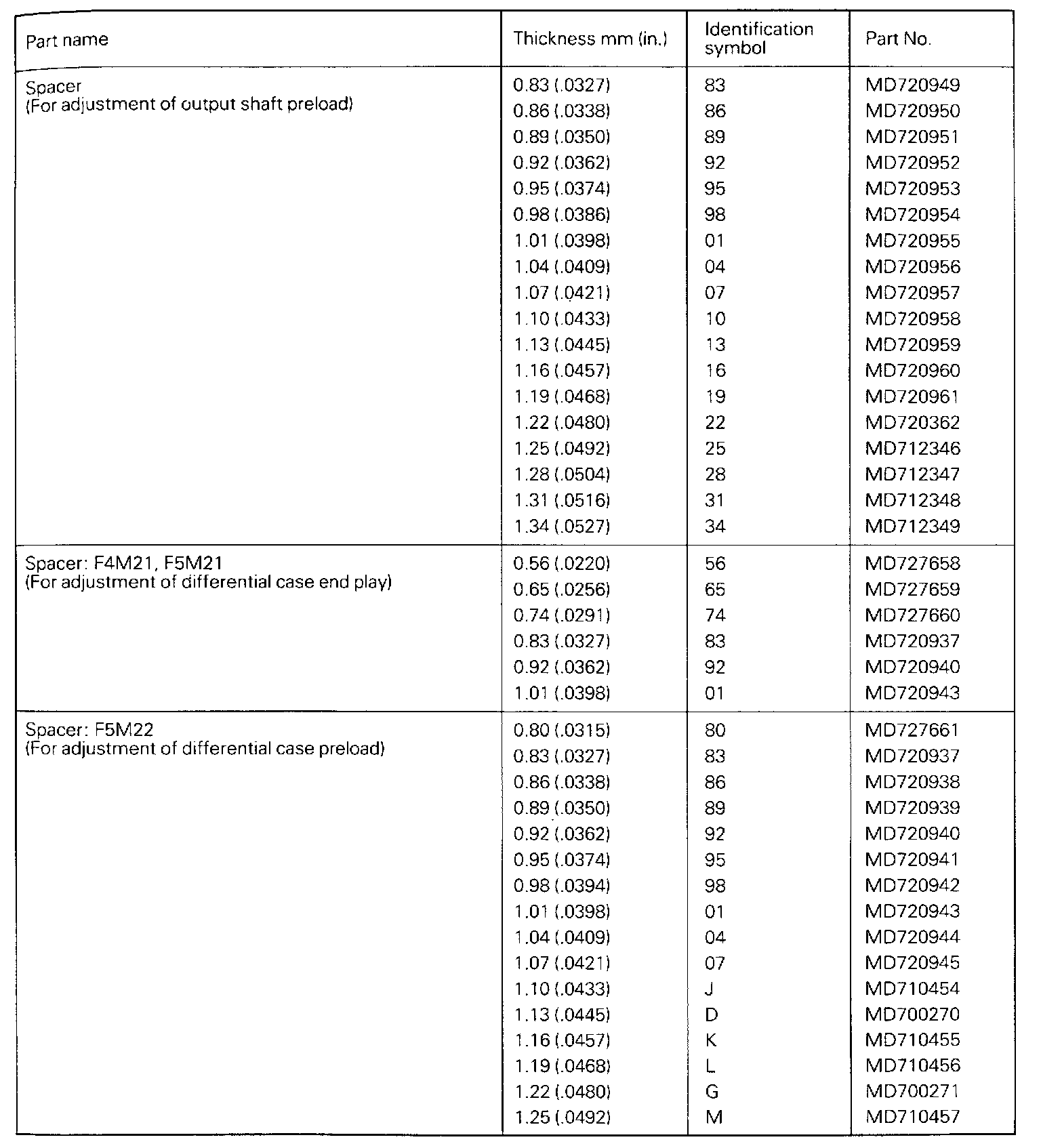

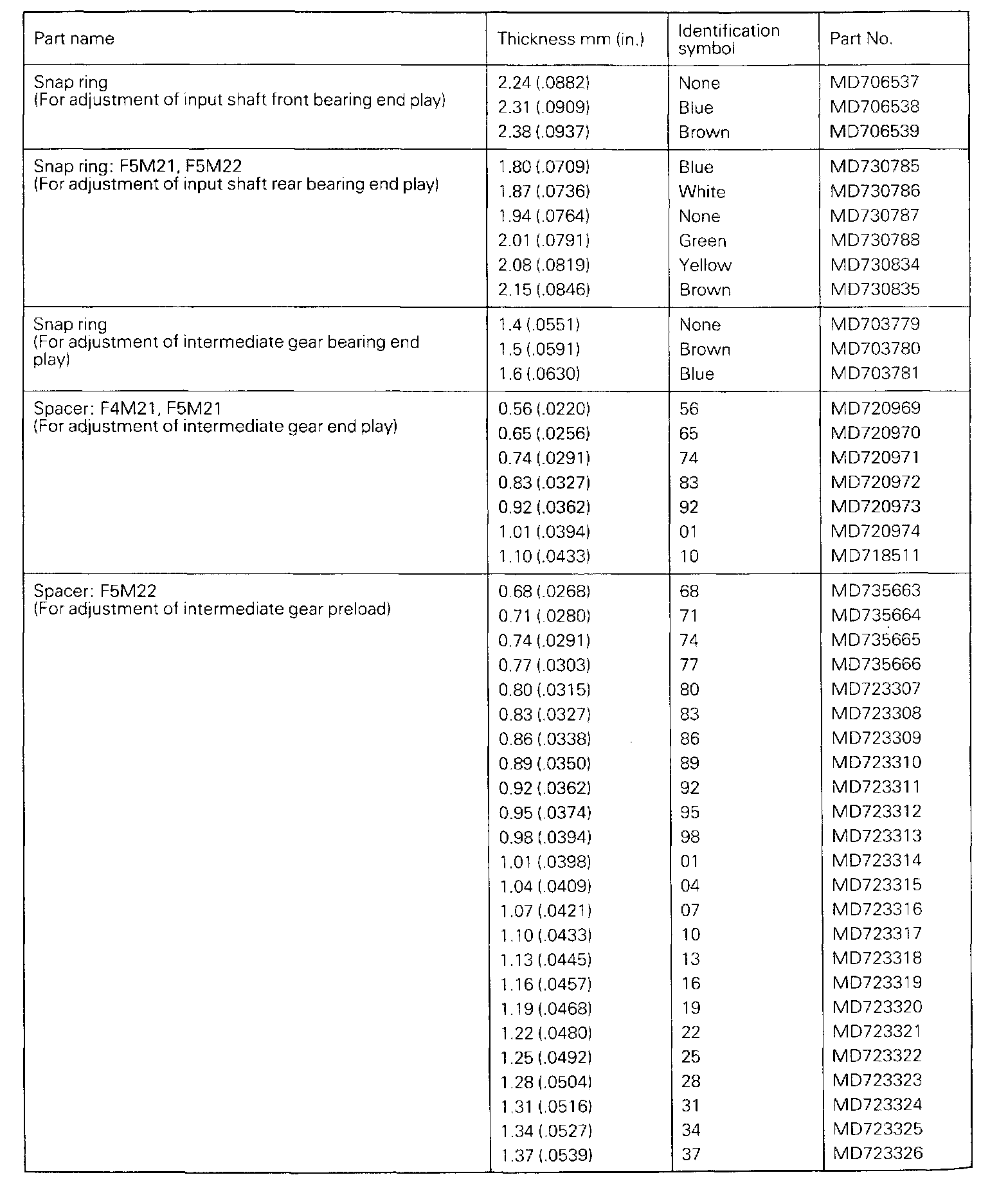

Snap Ring For (Adjustment) And Spacer:
Continued:
Continued:
Lubricants:
