NS-3: Fuel Test

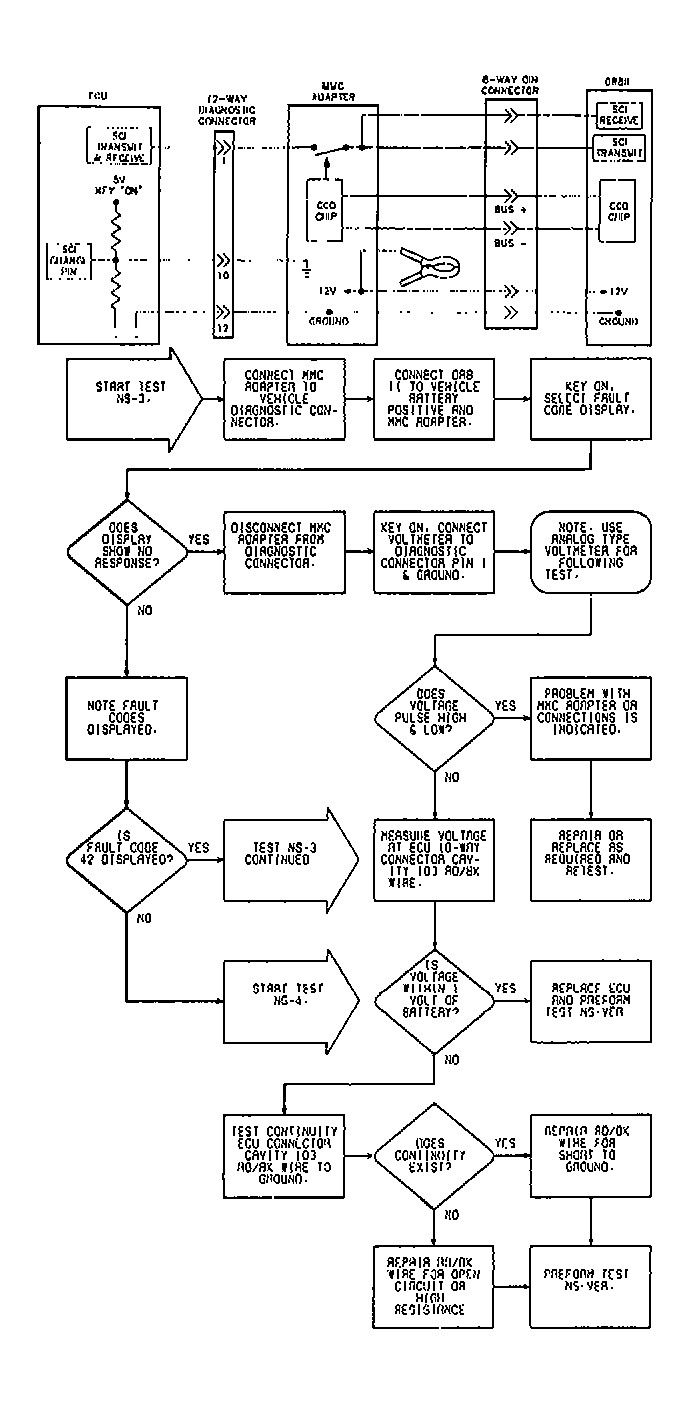

Fig 1: NS-3 Flow Chart & Circuit Diagram (2.0L) (1 of 3)

G90J12657

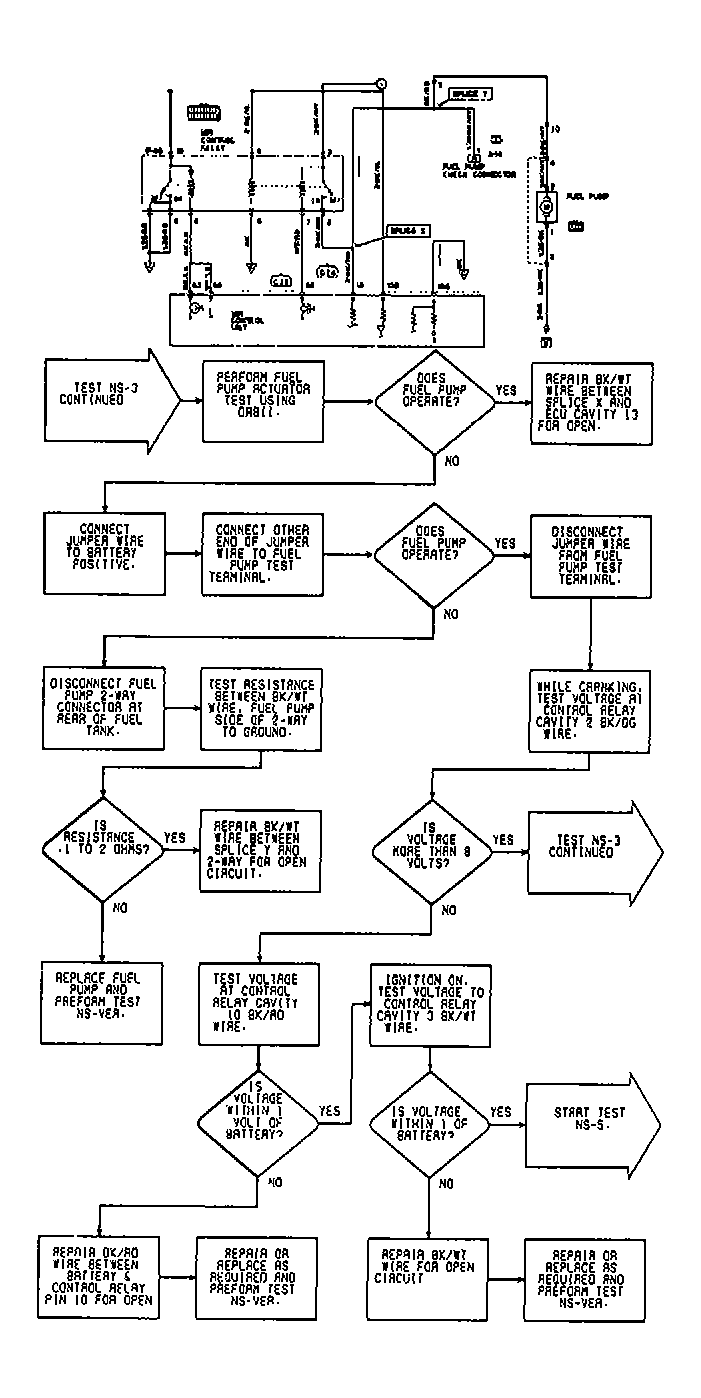

Fig 2: NS-3 Flow Chart & Circuit Diagram (2.0L) (2 of 3)

G90A12658

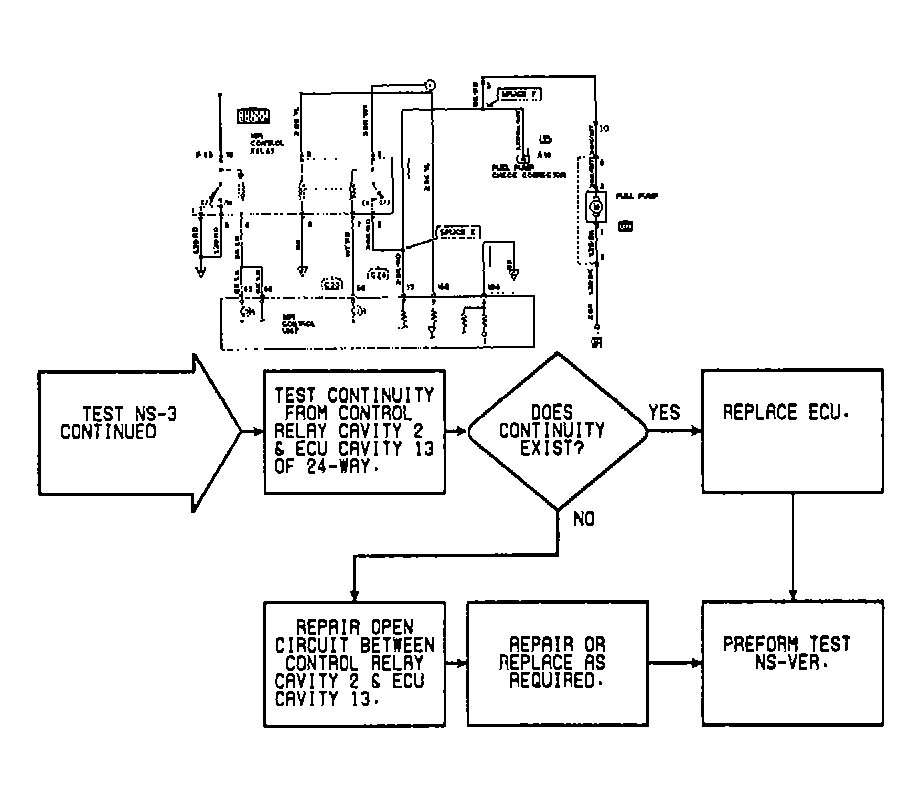

Fig 3: NS-3 Flow Chart & Circuit Diagram (2.0L) (3 of 3)

G90B12659
