Eagle
>>
1990
>>
Summit Base, Automatic
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Engine Controls - Tests W/Codes
>>
Test Charts - 2.0L
>>
Dr-10: Checking TDC Sensor
Dr-10: Checking TDC Sensor

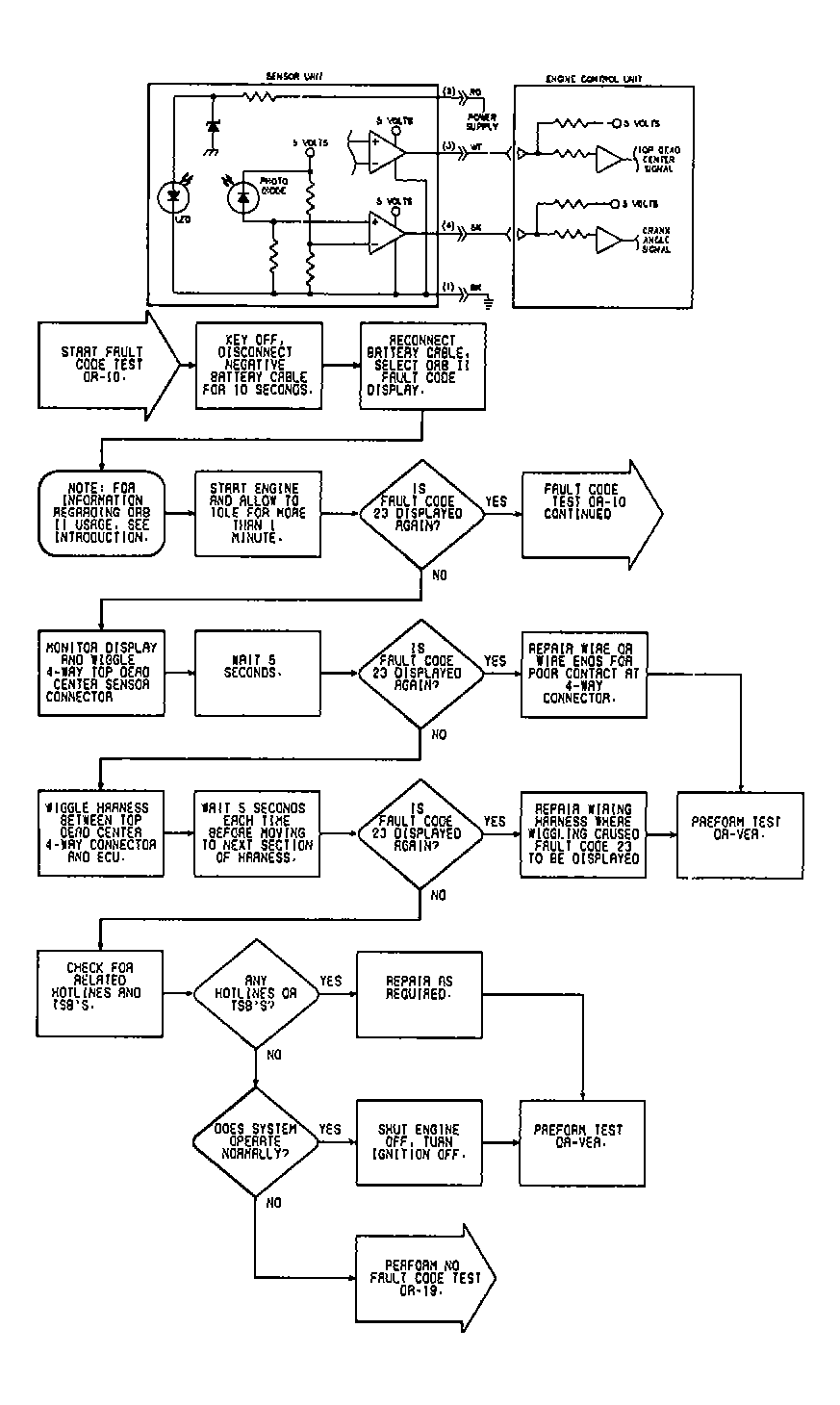

Fig 1: DR-10 Flow Chart & Circuit Diagram (2.0L) (1 of 2)

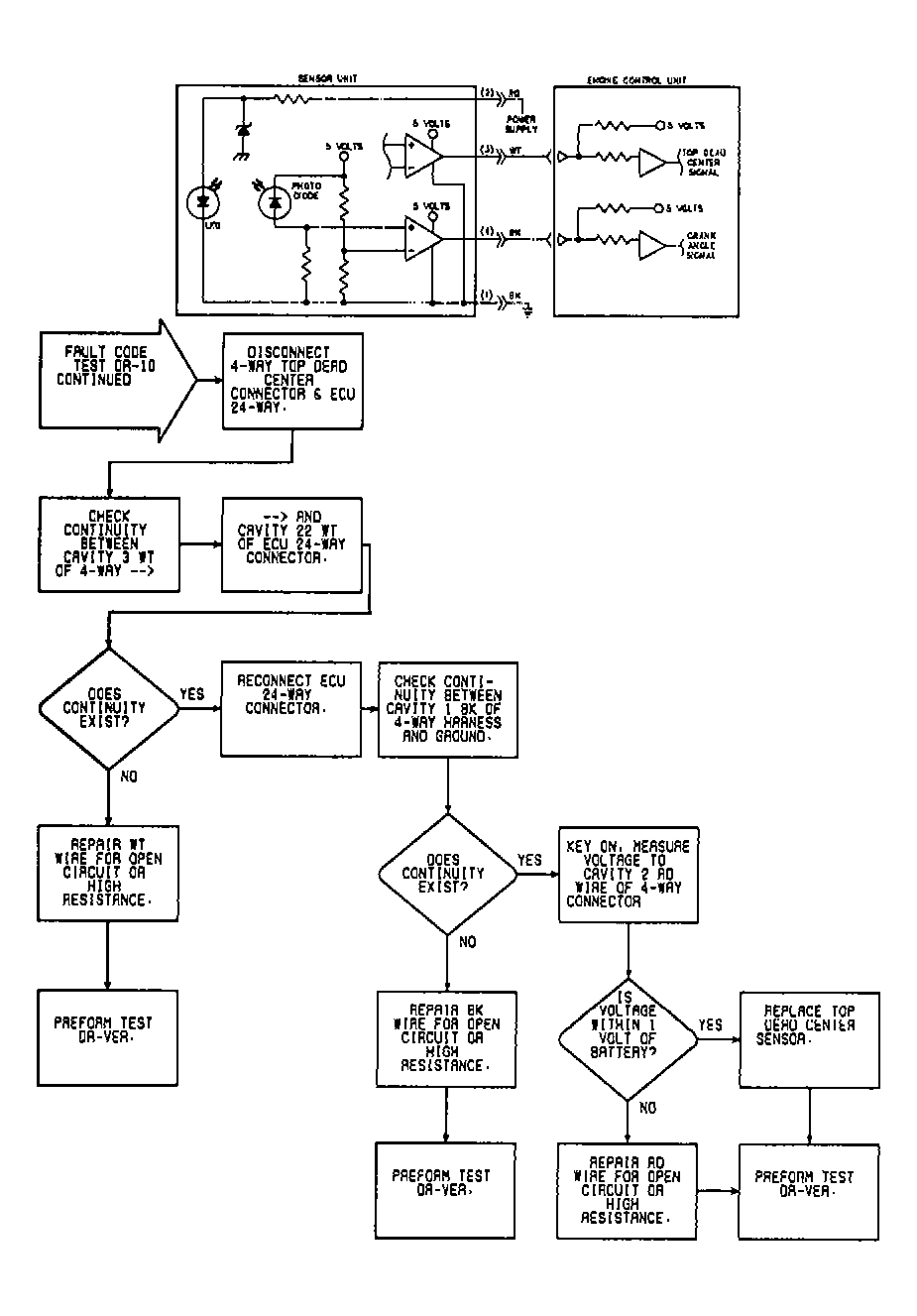

Fig 2: DR-10 Flow Chart & Circuit Diagram (2.0L) (2 of 2)
