Premier L4-153 2.5L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Seat Belt Control Module
Seat Belt Control Module

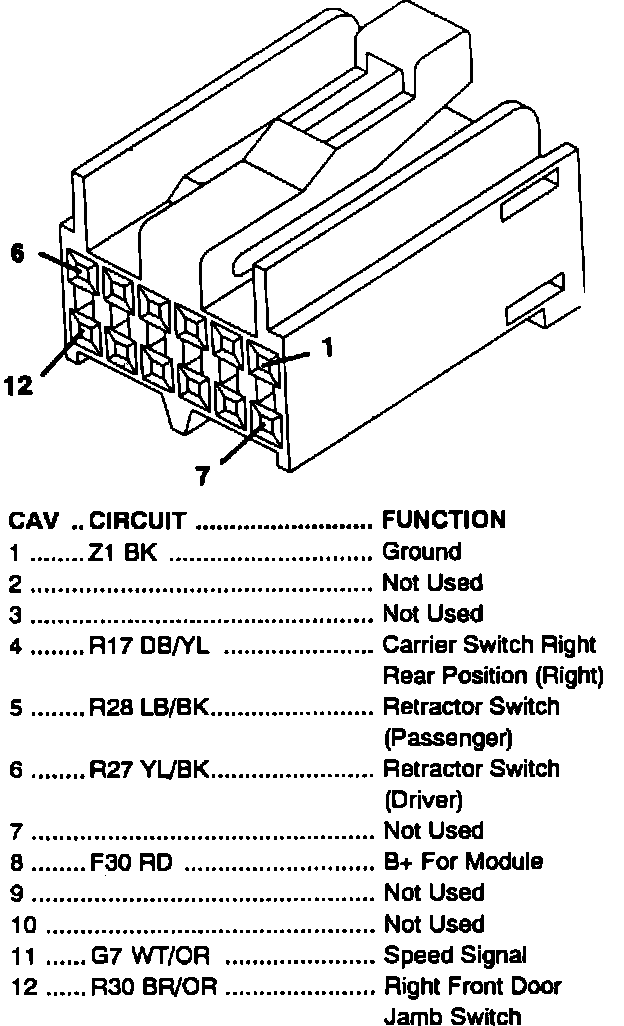

Fig. 75 Passive Restraint Module. Black 12 Way Connector:

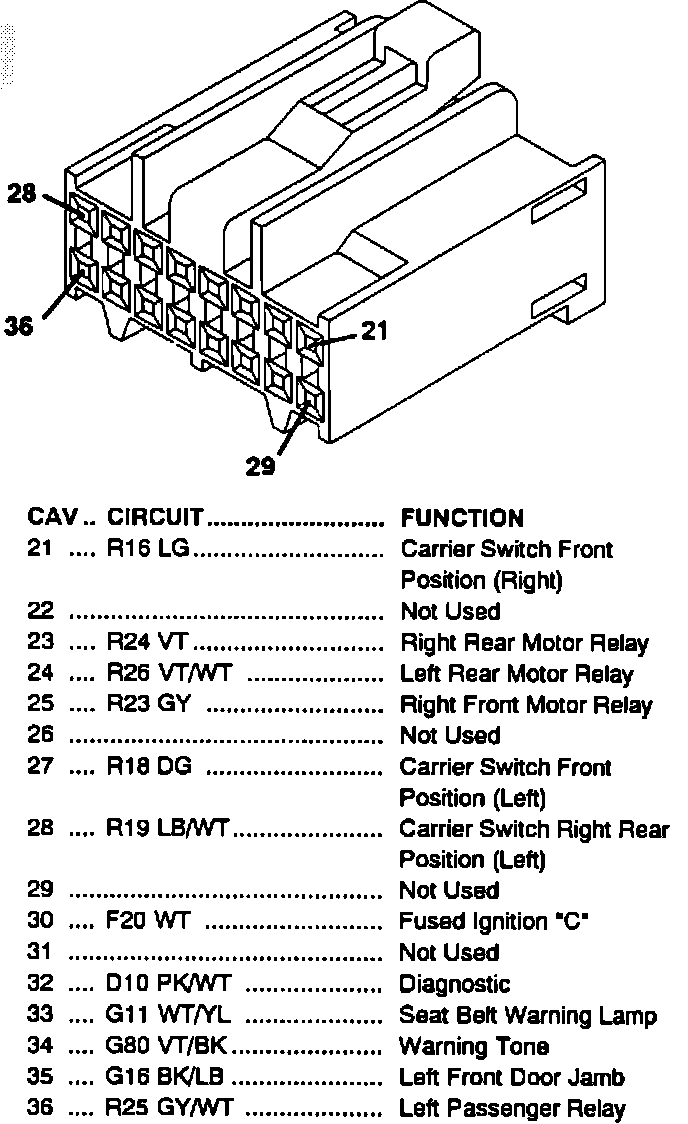

Fig. 76 Passive Restraint Module. Black 16 Way Connector:
Fig. 77 Passive Restraint Module. Diagnostic Connector:
