Clearance and Design Specifications



General Specifications:

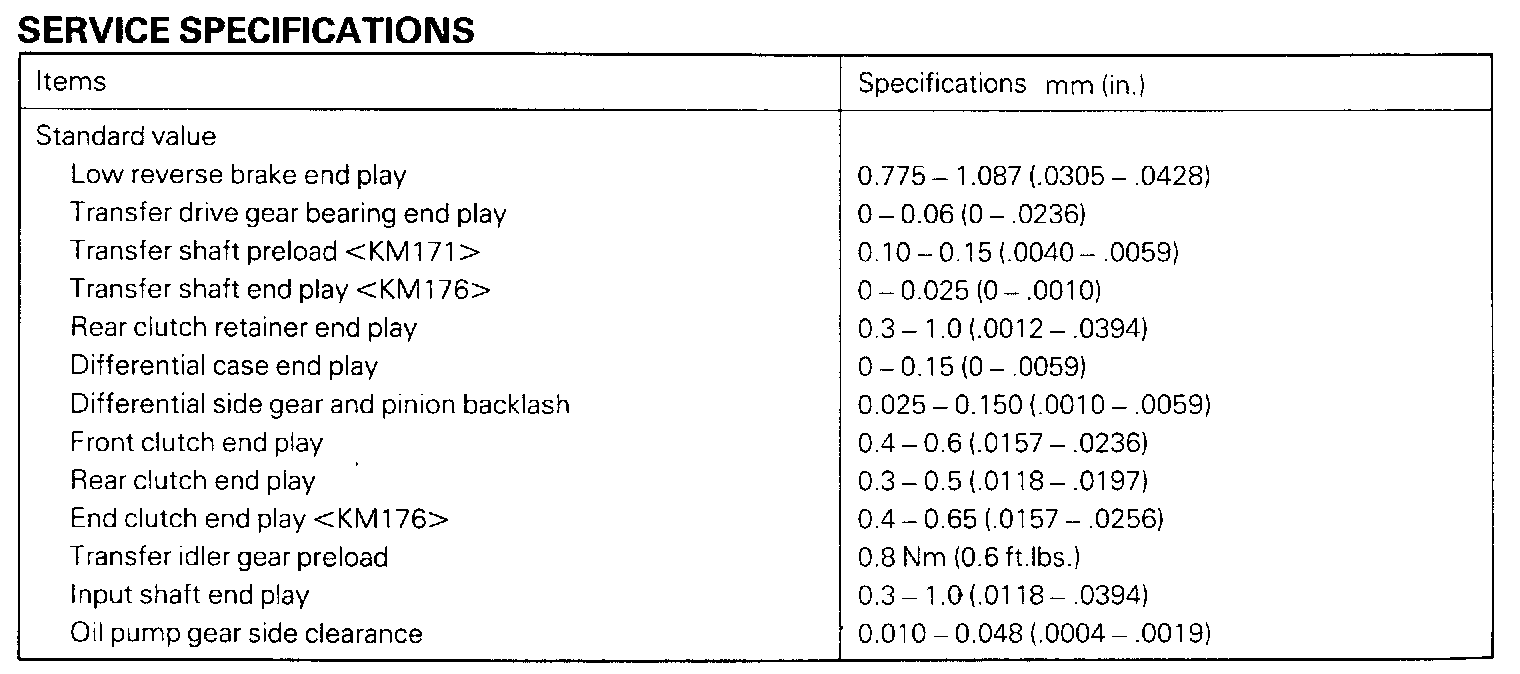

Service Specifications:

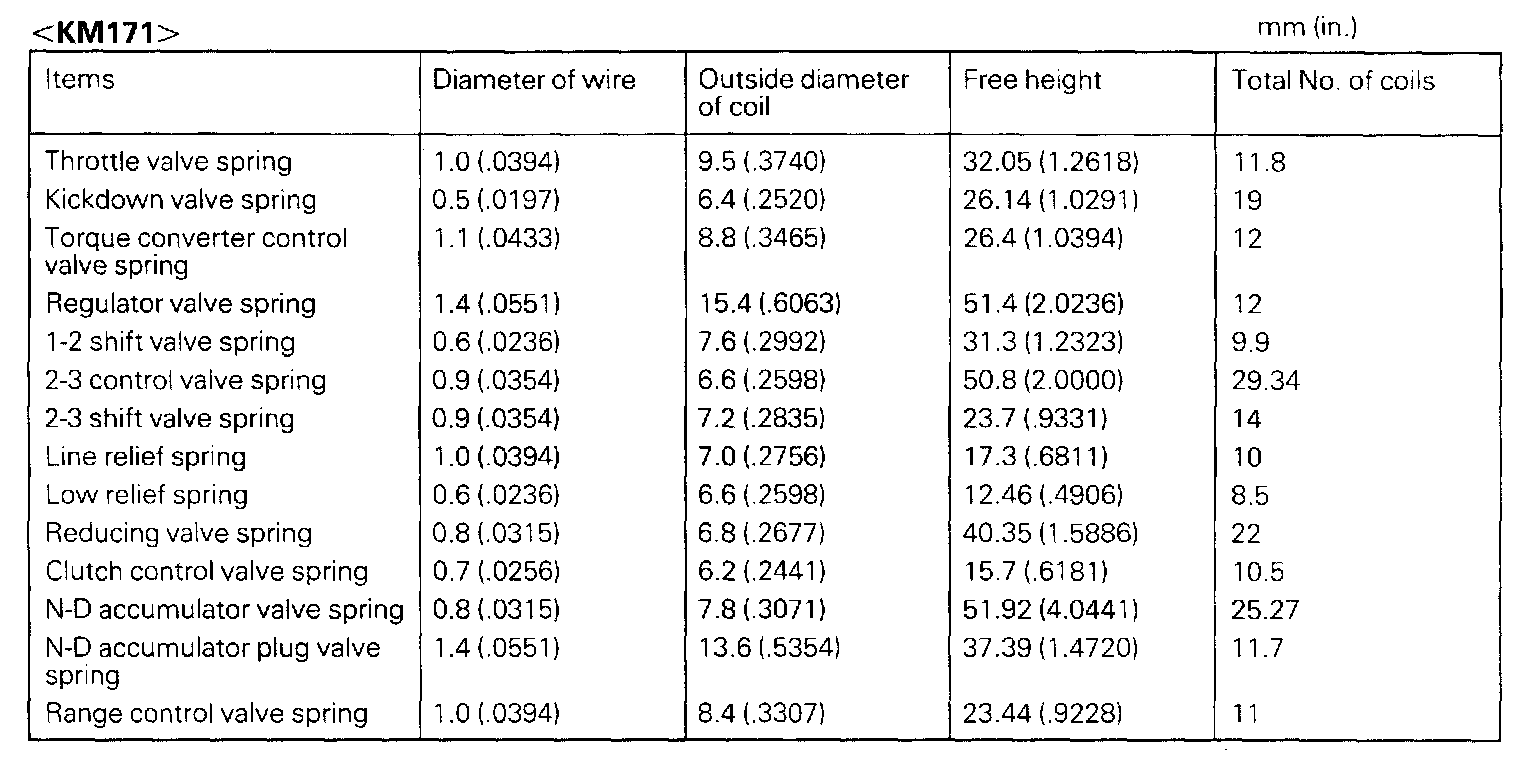

Valve Body Spring Identification Chart Model KM171:

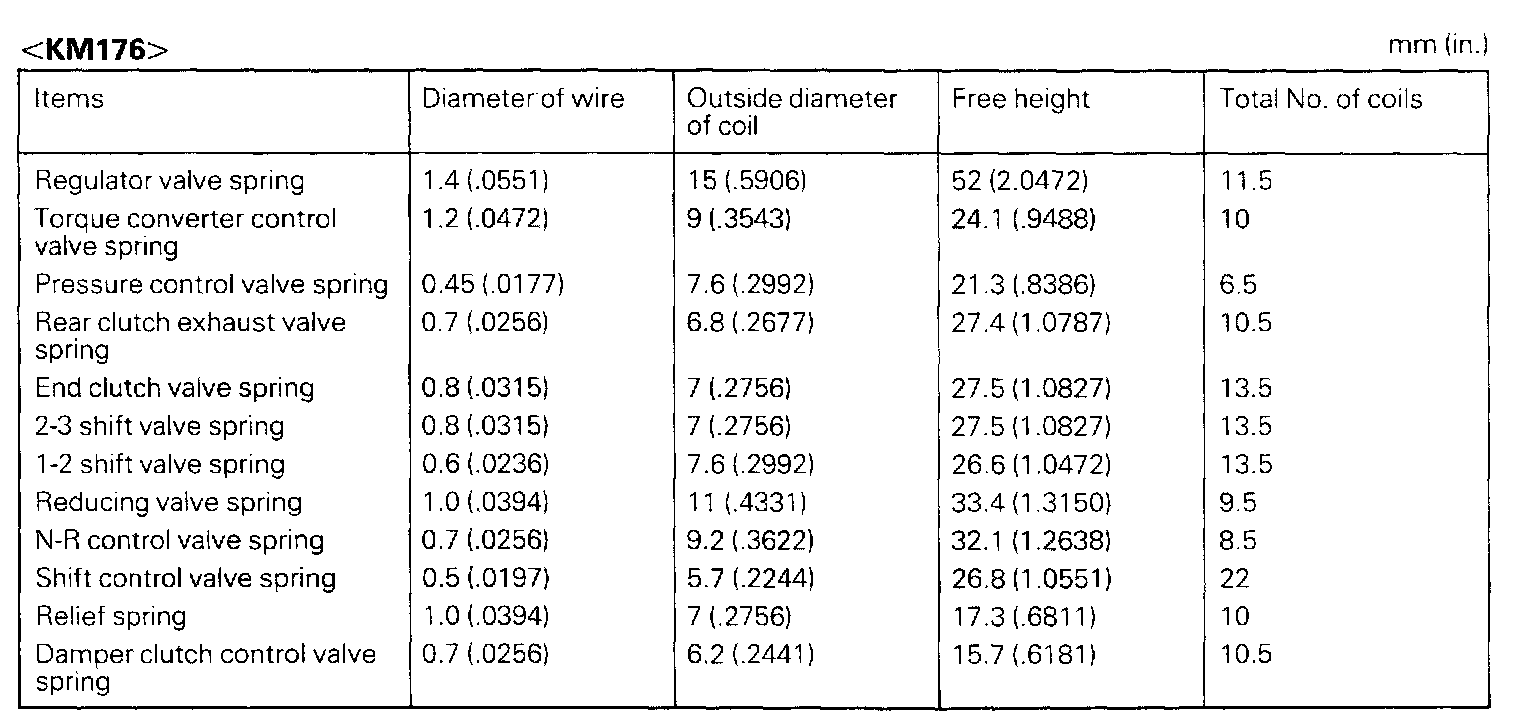

Valve Body Spring Identification Chart Model KM176:

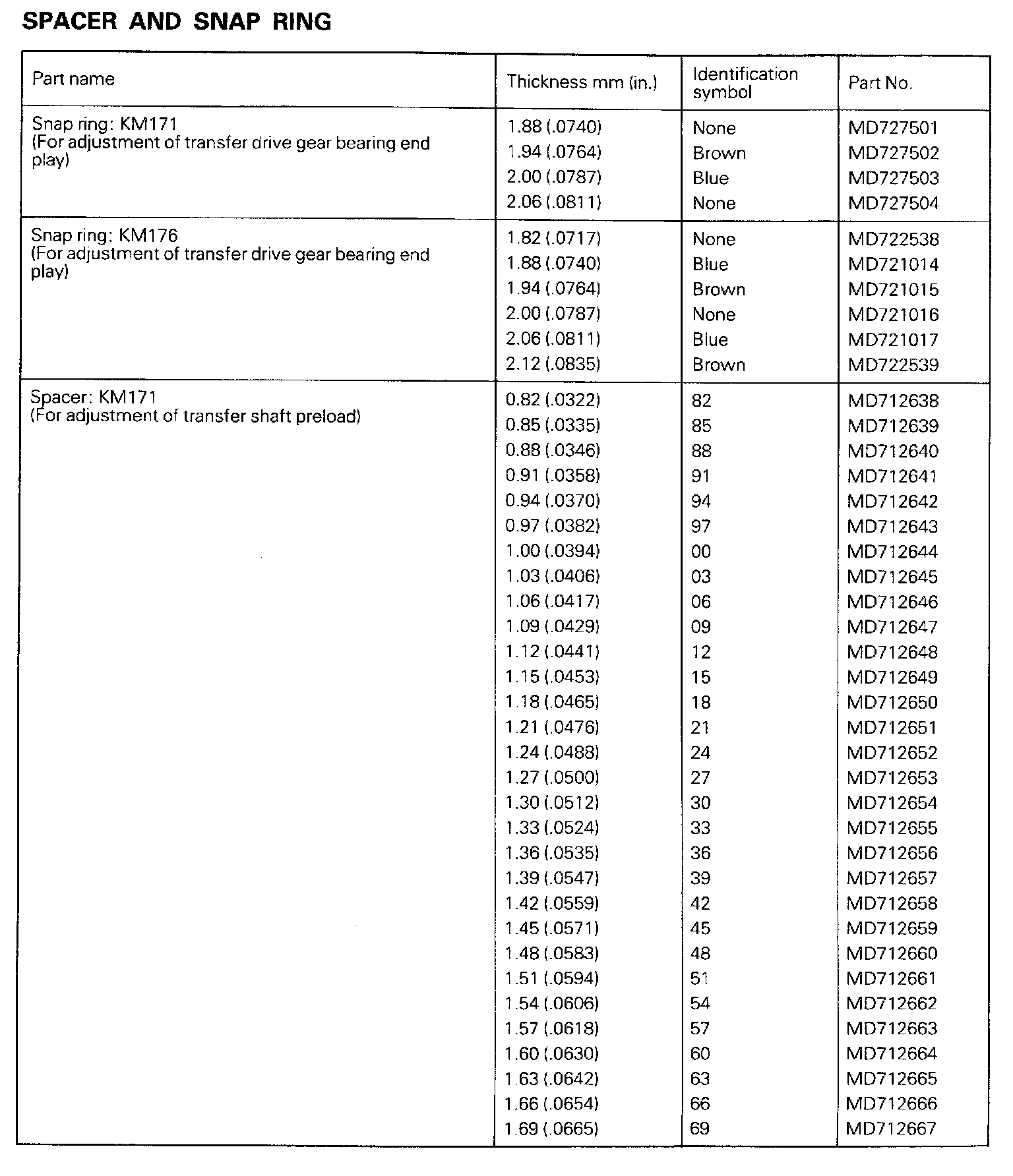

Spacer And Snap Ring Chart:

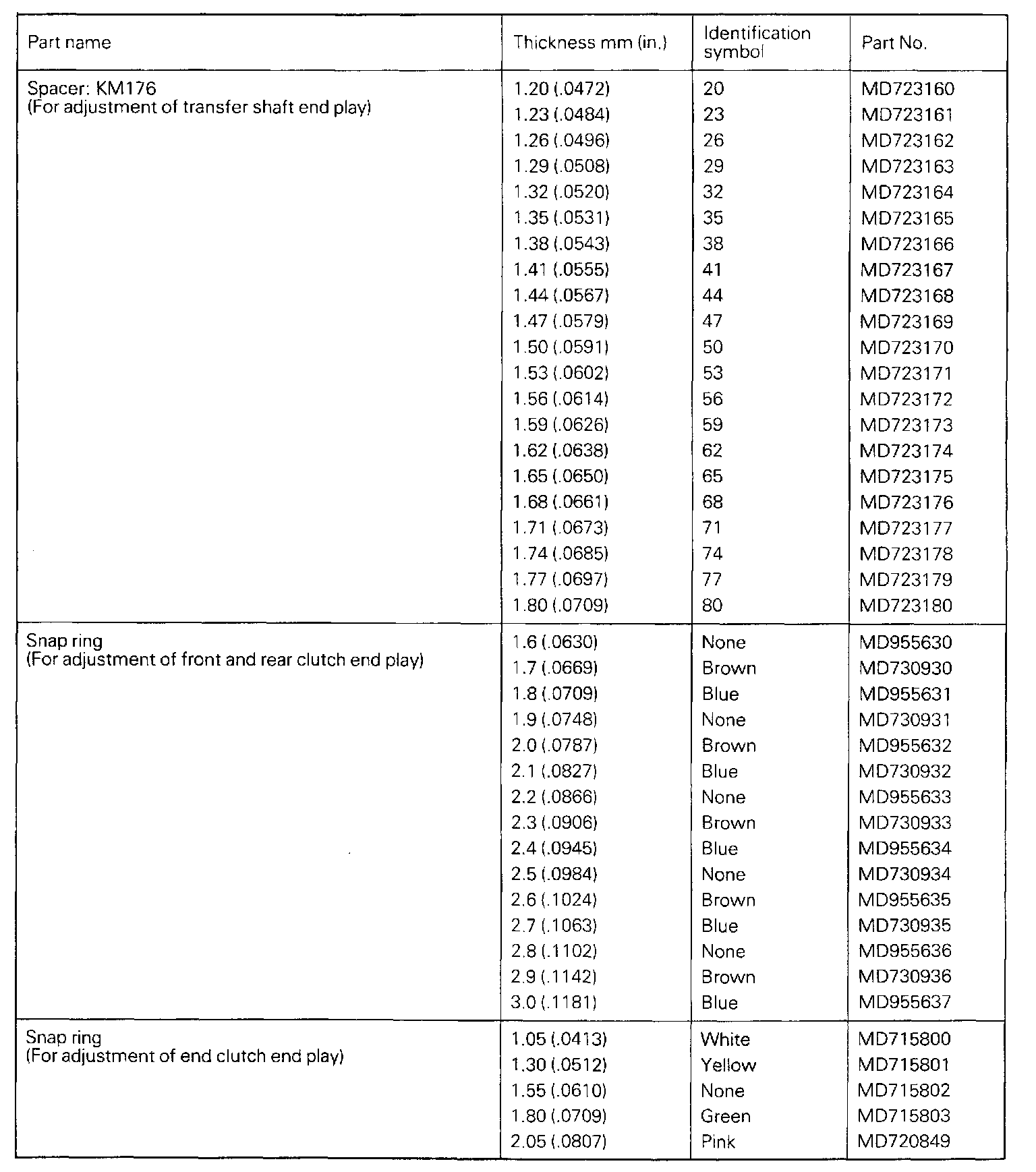

Continued:




Continued:





Lubricants:
