Clearance and Design Specifications

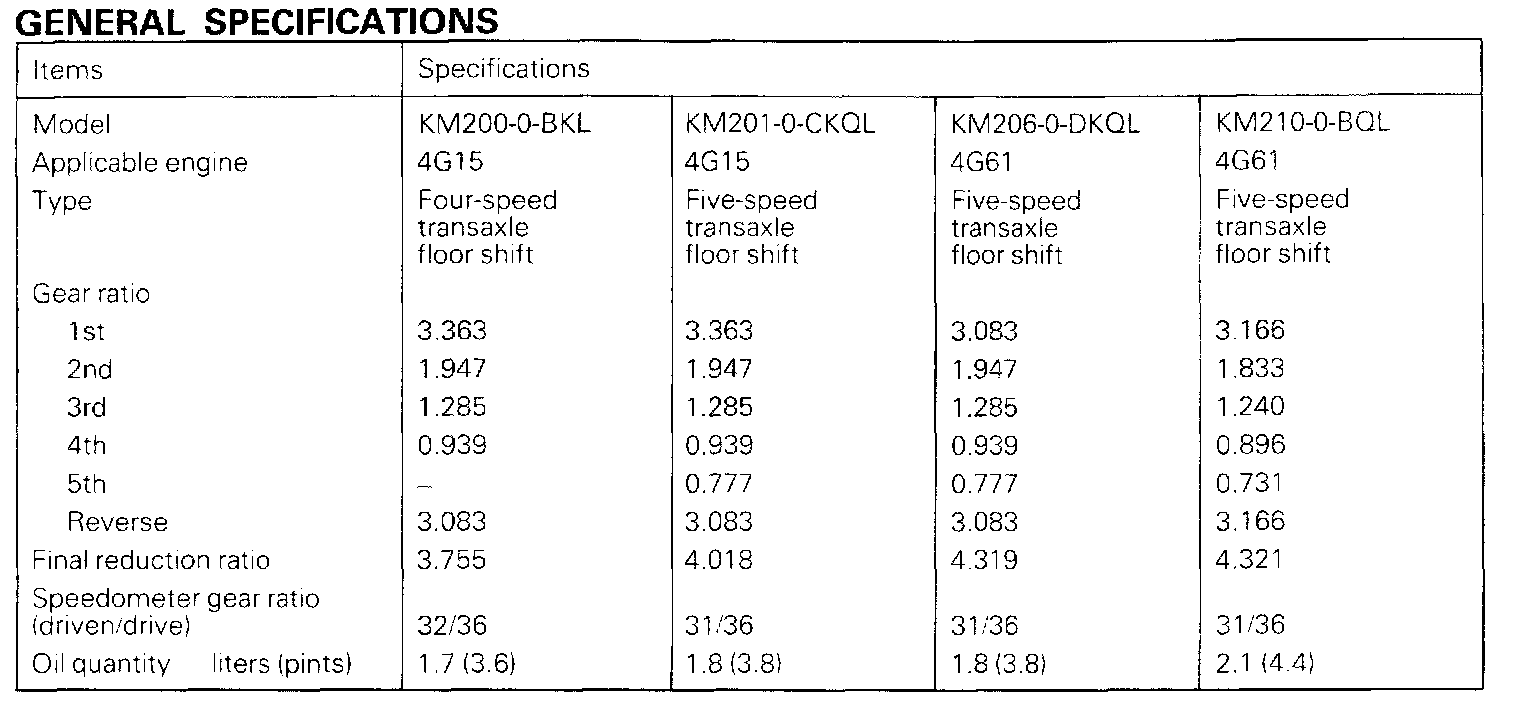

General Specifications:

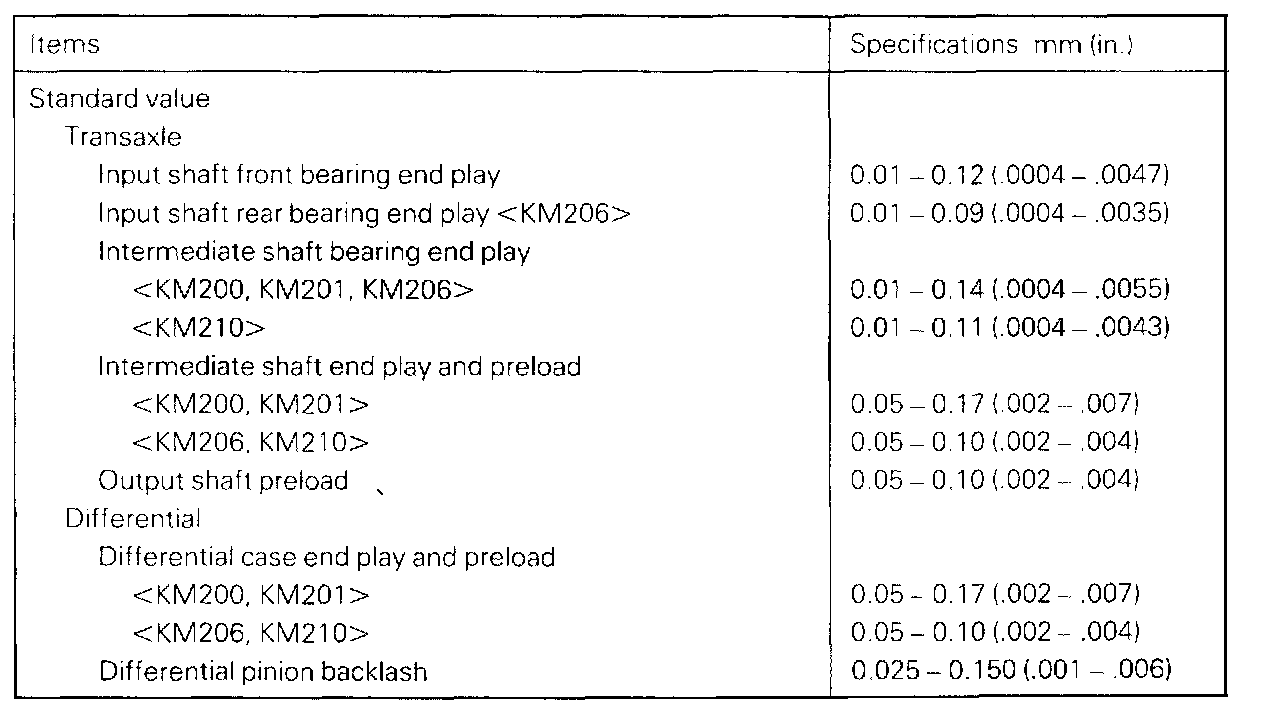

Service Specifications:

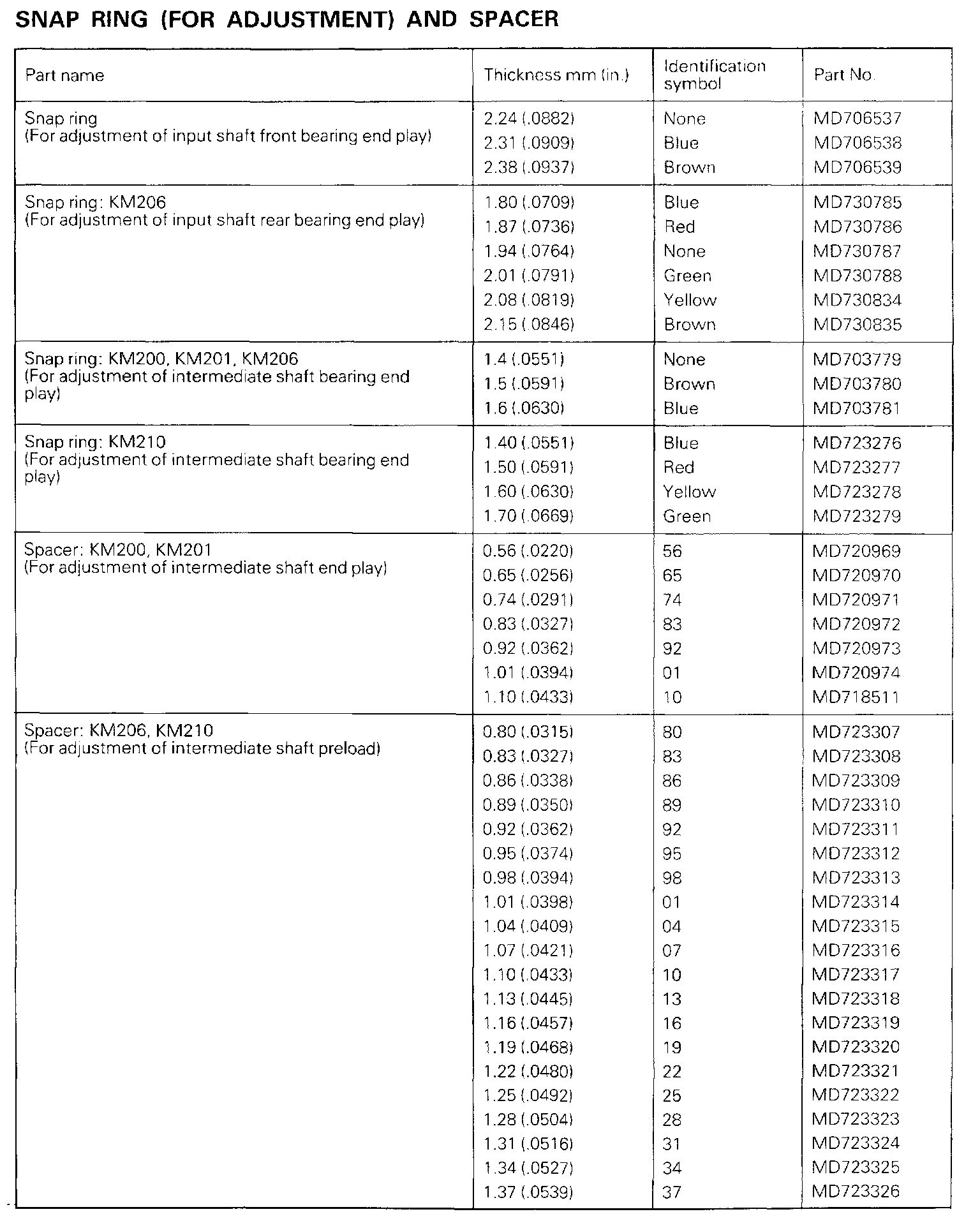

Snap Ring (For Adjustment) And Spacer:

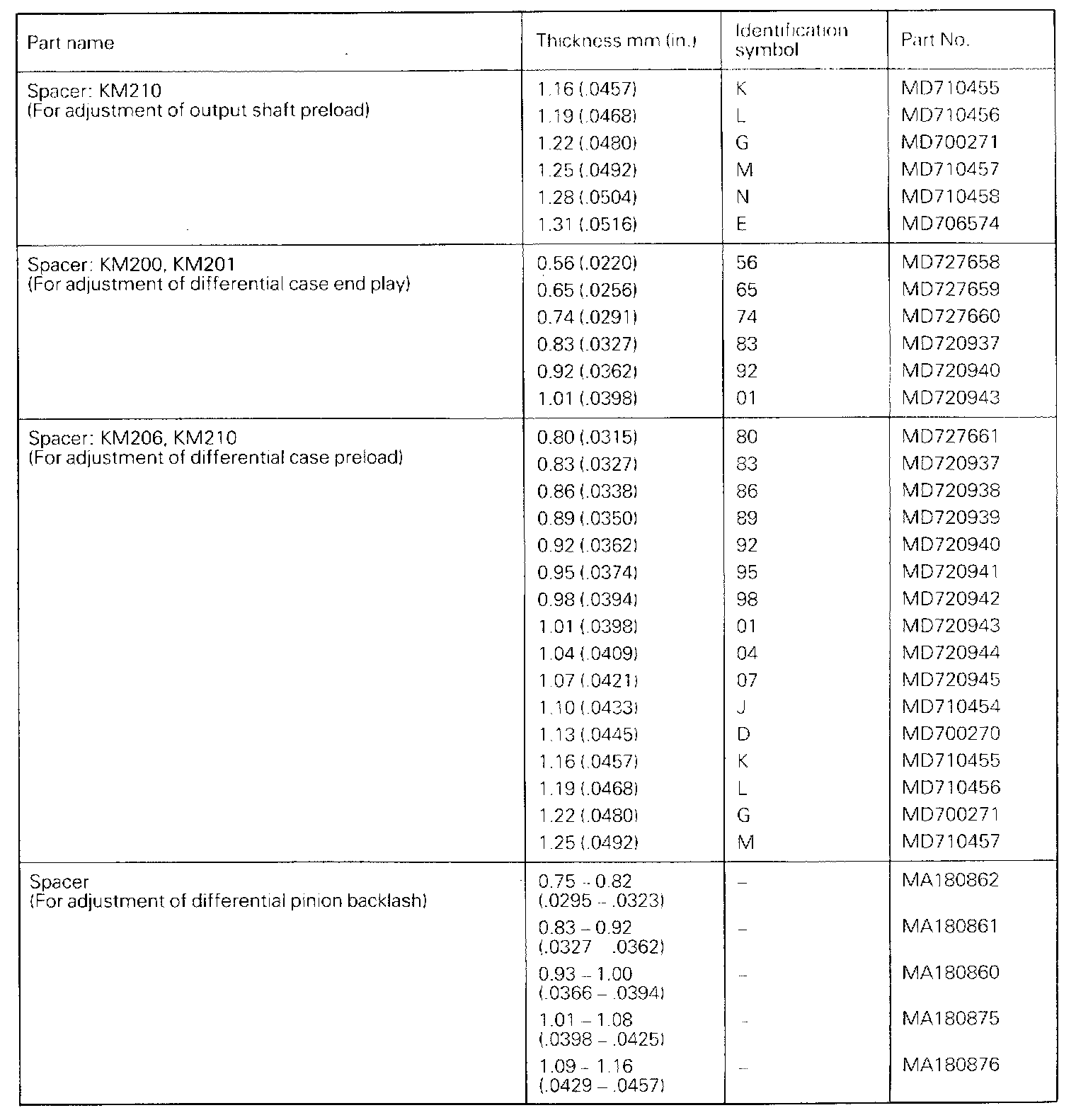

Continued:

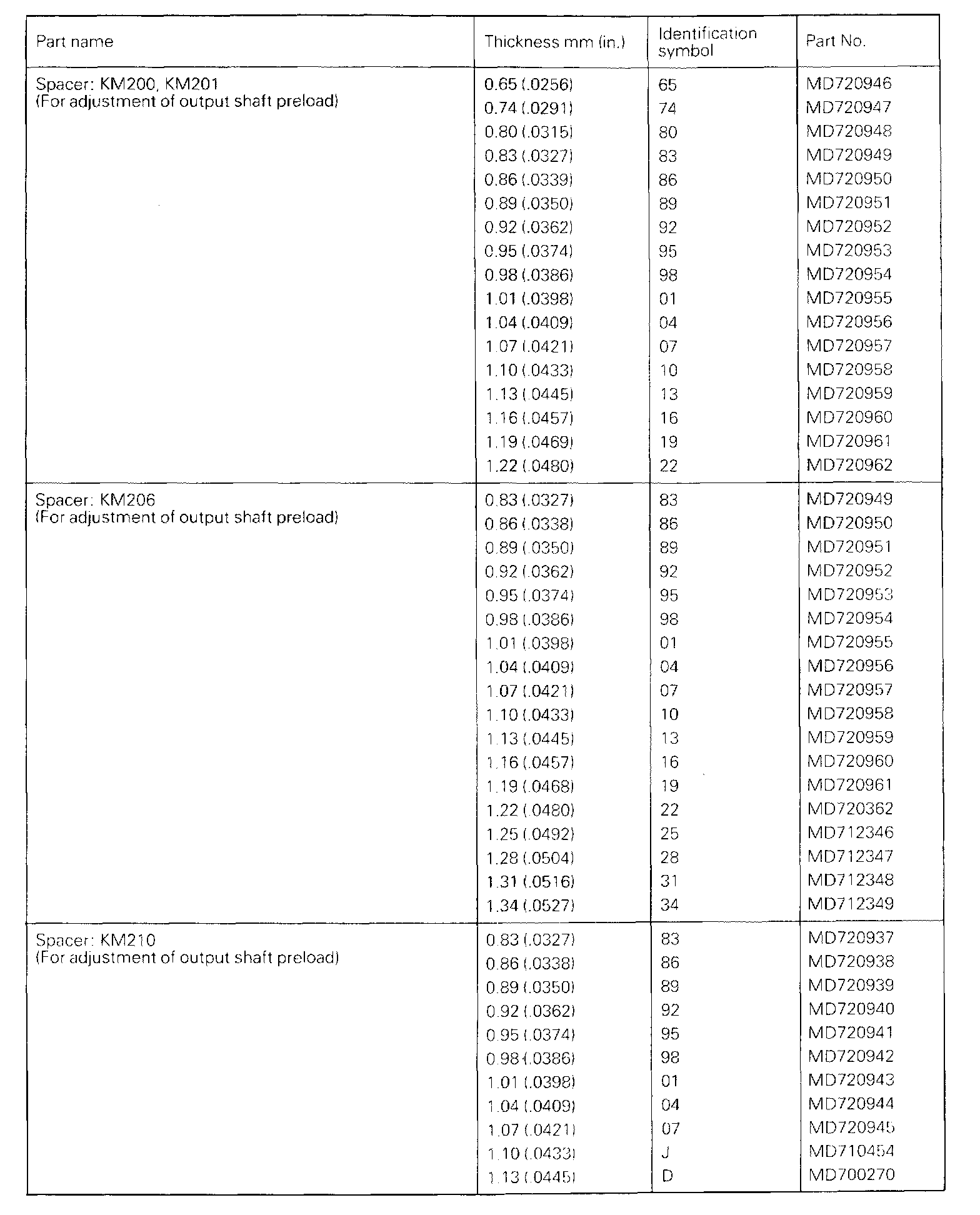

Continued:





Lubricant:
