Home >> Eagle >> 1989 >> Medallion L4-2165cc 2.2L >> Repair and Diagnosis >> Powertrain Management >> Emission Control Systems >> Locations

Emission Control Systems: Locations

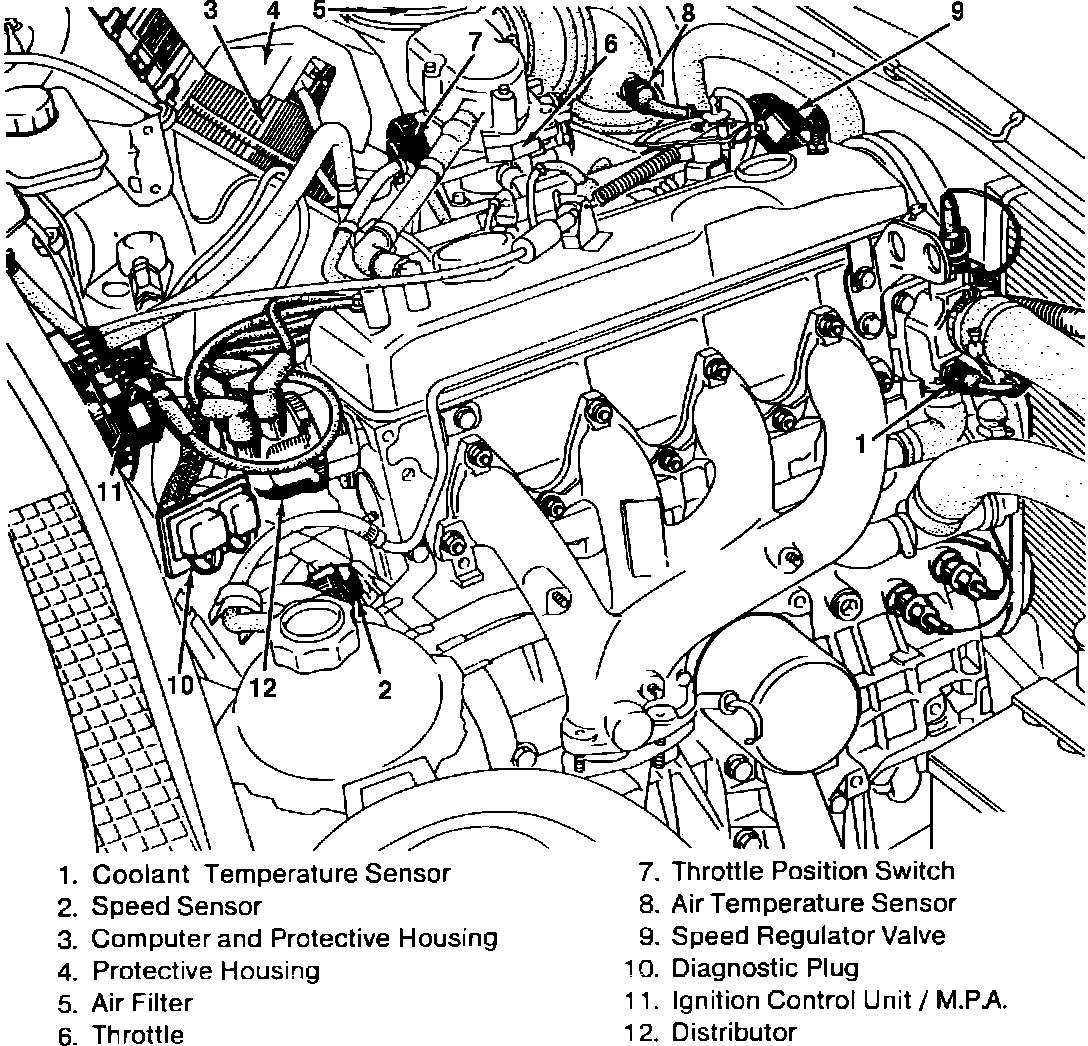

Fig. 5 Engine compartment reference diagram. 4-132/2.2L Engine:
