Clearance and Design Specifications


Front and Rear Differential Specifications

Front Differential

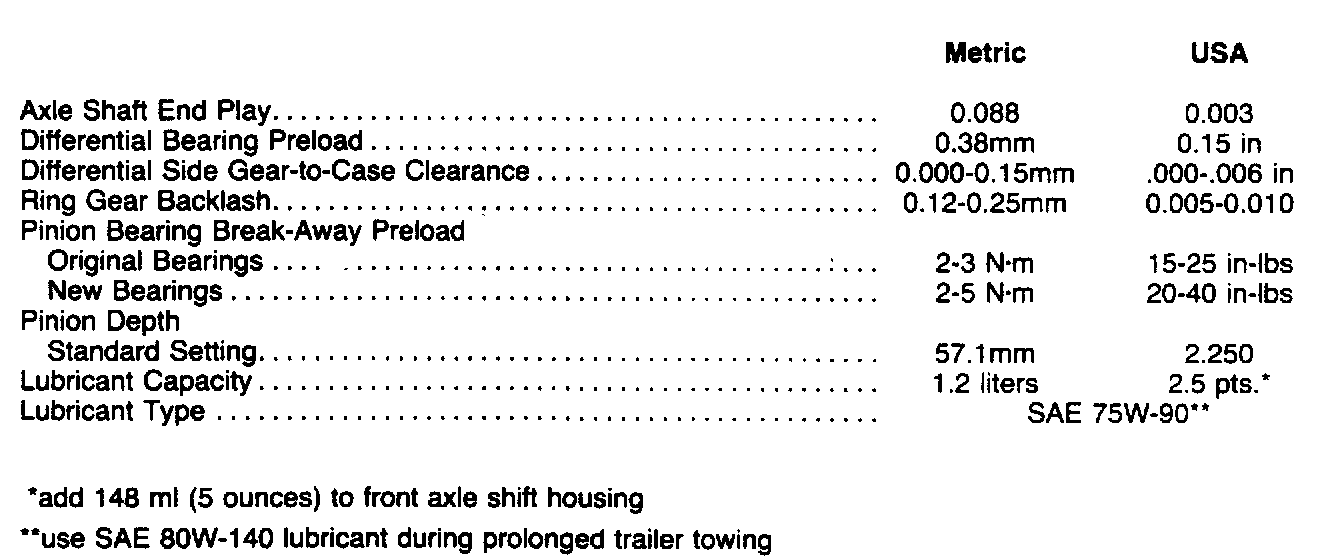

General Specifications:





Axle Size And Ratio Identification:

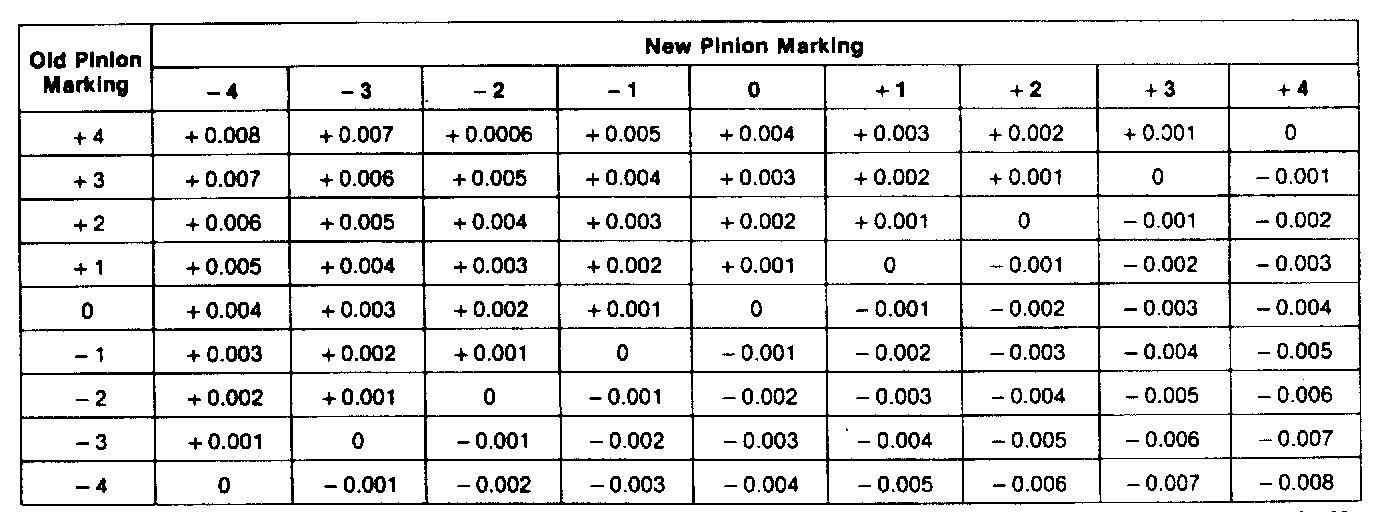

Pinion Valve Chart:





Rear Differential

General Specifications:





Specifications:

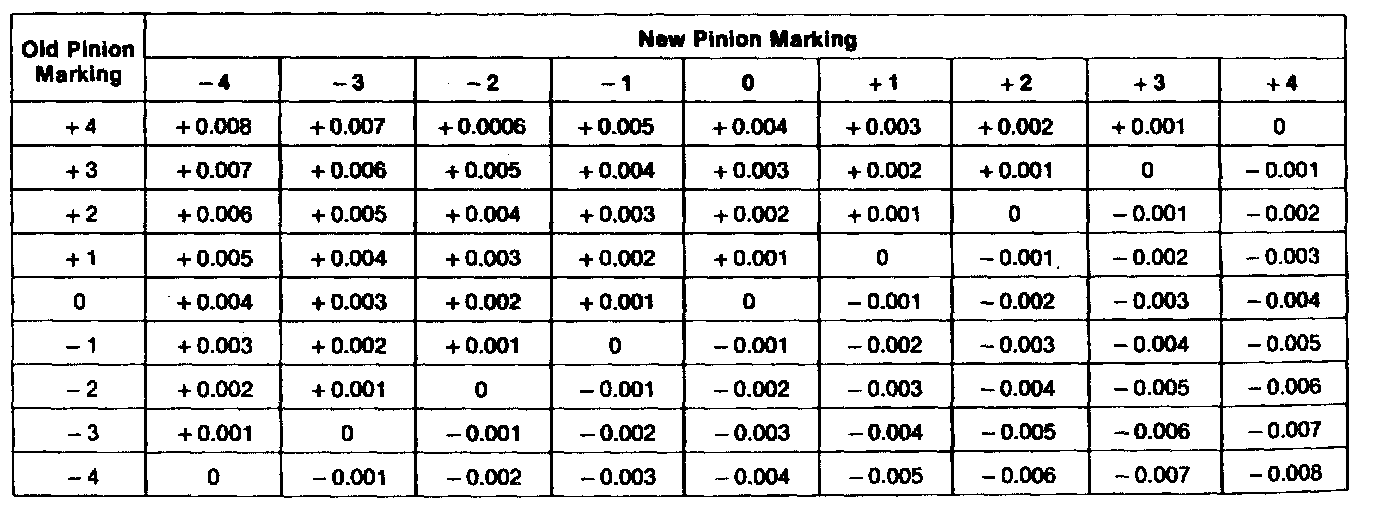

Pinion Variance Chart:
