Eagle
>>
1982
>>
Eagle L6-258 4.2L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Computers and Control Systems
>>
Diagnostic Connector
Diagnostic Connector

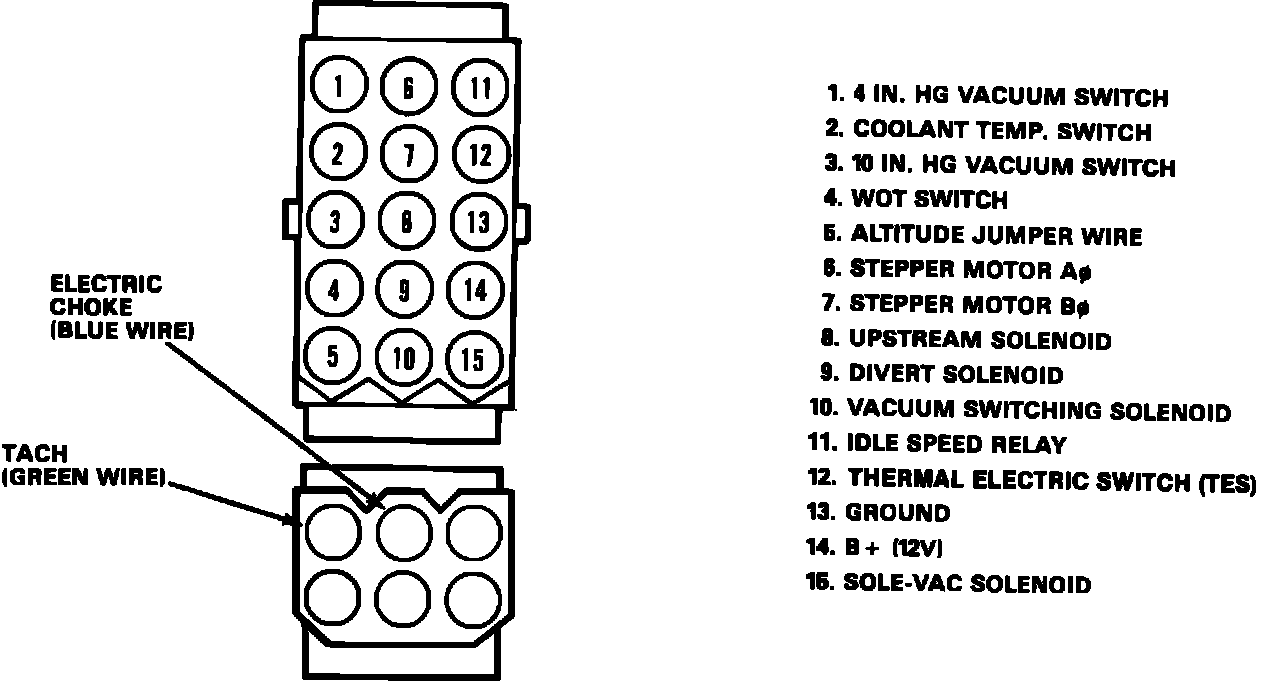

Diagnostic connector:
