Outlet, Power, 12 V: Installation

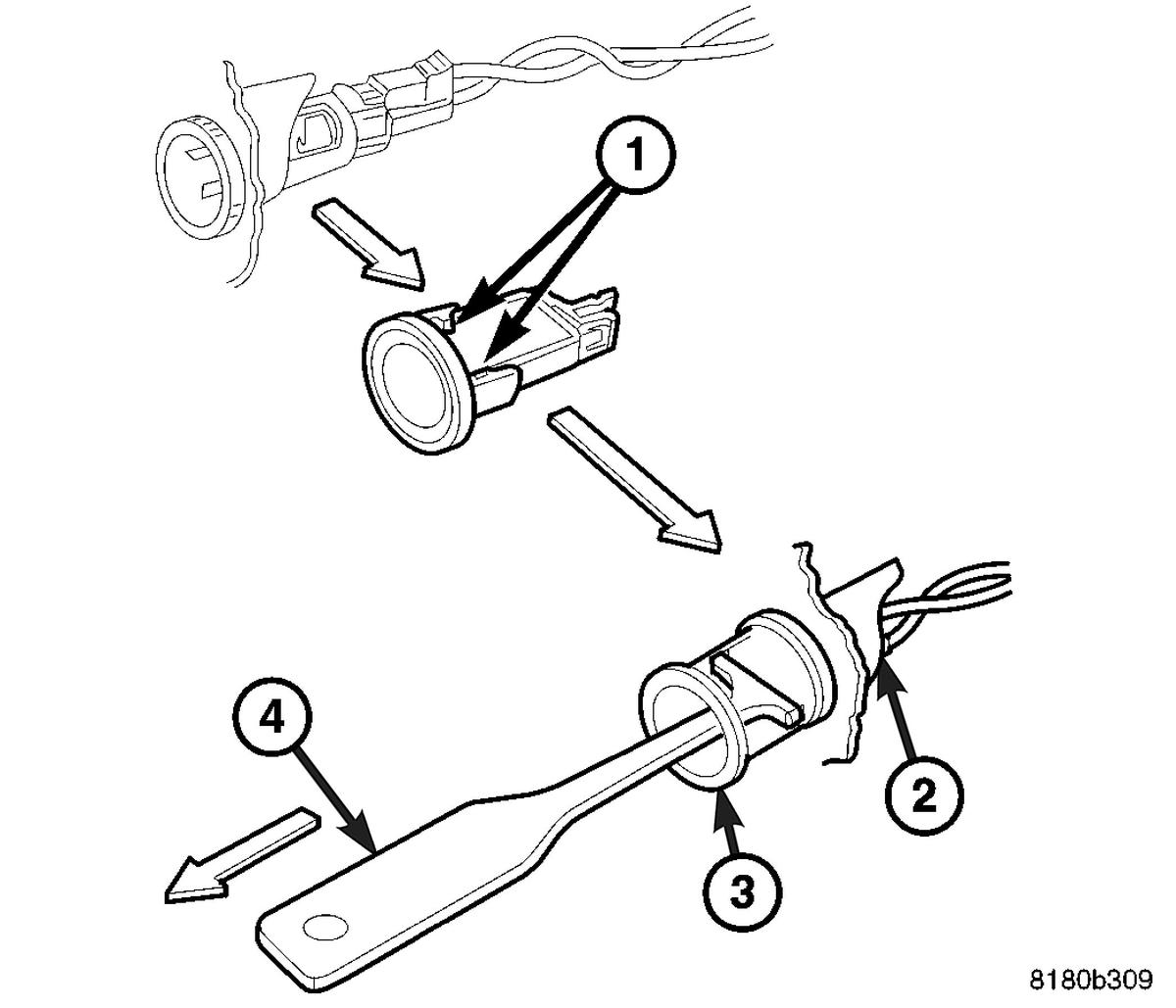

GC0121169Courtesy of CHRYSLER GROUP, LLC
  1. Connect wire harness connector (2).
  2. Install power outlet base (3) to the mounting location.
  3. Inspect to be certain the power outlet retaining clips (1) are seated fully.
  4. Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector.
