Wheel Alignment



Wheel Alignment

NOTE: All specifications are given in degrees.

NOTE: All wheel alignments are to be set at curb height. Refer to Ride Height

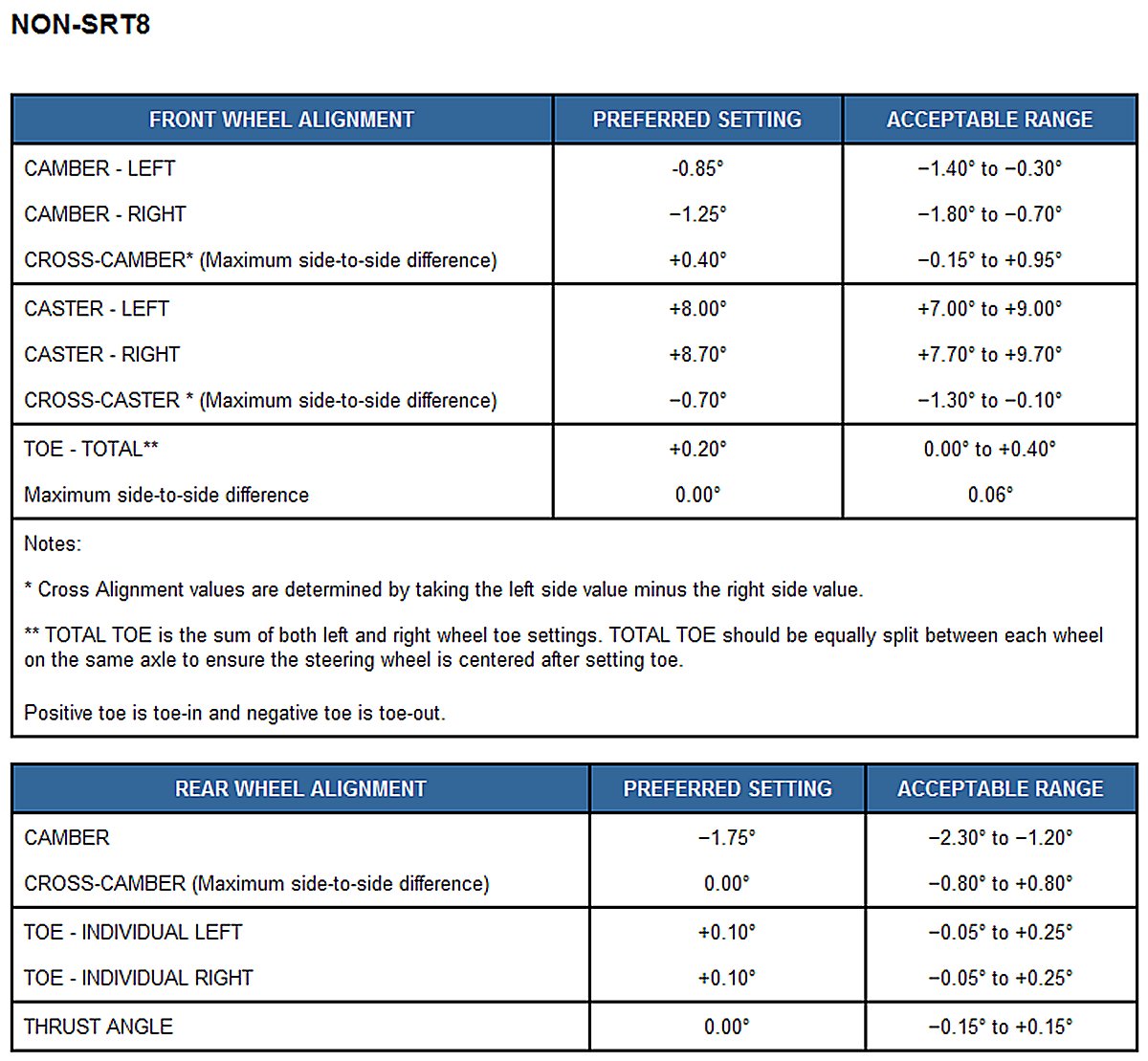

NON-SRT8

NON-SRT8:

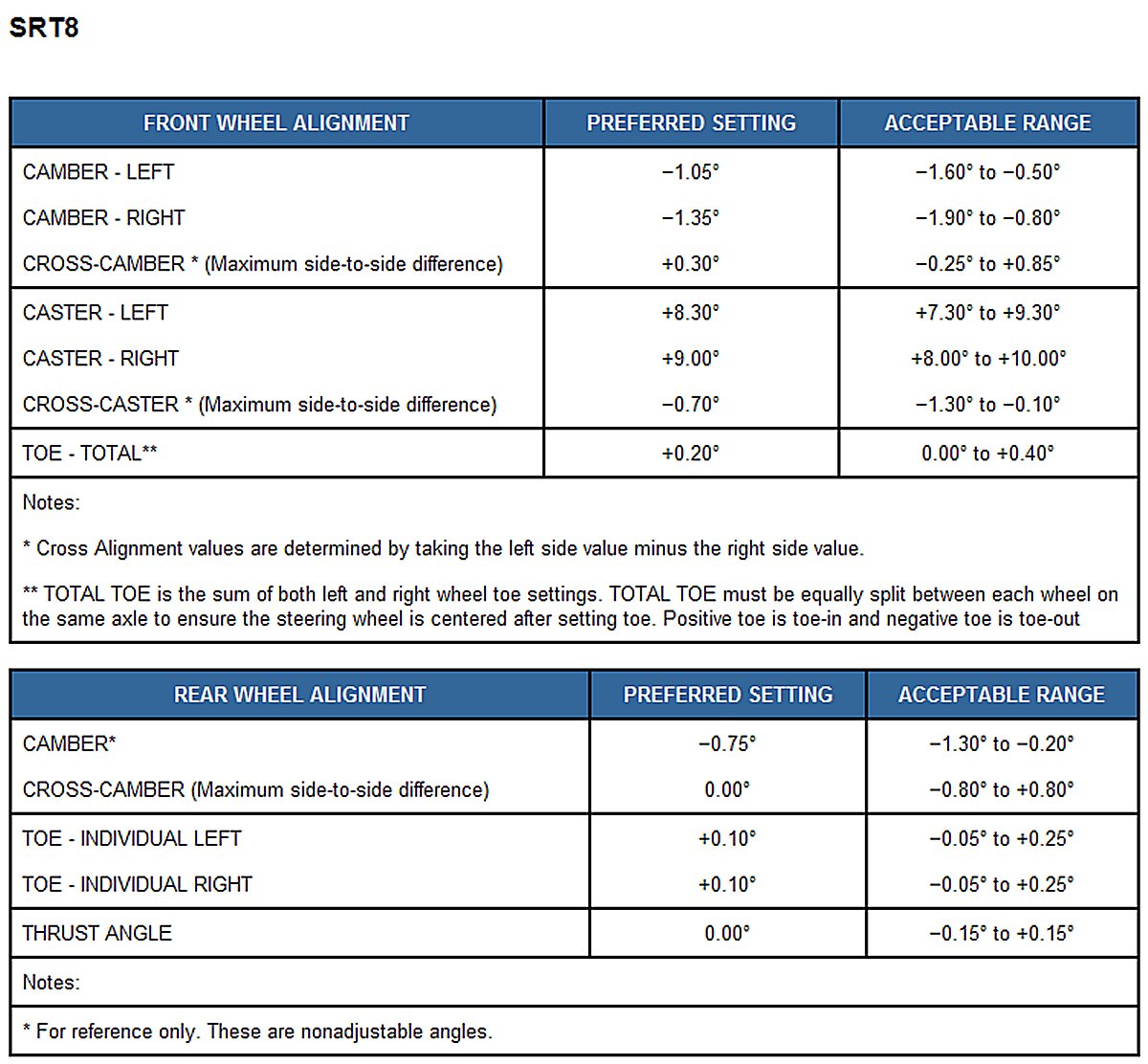

SRT8

SRT8:
